DTIPU65
The DTIPU65 series of class I AC DC desktop power supplies provides up to 80 Watts of continuous output power in a 6.61” x 3.06” x 1.77” package. This series consists of single, dual, triple, and quad output models with a 90~264VAC input voltage range and an IEC-320-C14 AC inlet connector. These power supplies have an industrial operating temperature range of -20°C to +70°C and are protected against input surge current, over voltage, and over load conditions. All units are UL 94V-1 and RoHS compliant and meet FCC Part-15 class B and CISPR-22 class B emission limits. The DTIPU65 series has been 100% burn-in tested and also meets new CE requirements and has UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. These supplies have an optional On/Off switch (suffix “SW”) and optional output connectors available.
• Class I
• Splash Proof
• RoHS Compliant
• UL 94V-1 Compliant
• CEC and Energy Star Level V Compliant
• IEC-320-C14 AC Inlet Connector
• 100% Burn-in Tested
• Single to Quad Outputs
• Wide Input Voltage Range: 90~264VAC
• Dimensions: 6.61” x 3.06” x 1.77”
• Input Surge Current, Over Voltage, and Over Load Protection
• Over Voltage Protection (Crowbar Design)

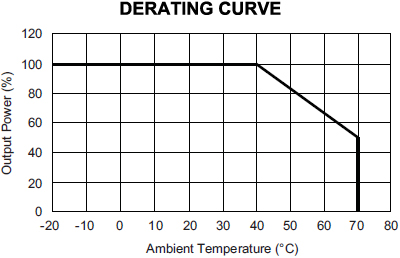

• -20°C to +70°C Operating Temperature Range
• Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits
• UL/cUL (UL60950-1: 2nd Edition) and TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals
• Optional On/Off Switch Available (Suffix “SW”)
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU65-204 | Input Voltage: 90~264 | Output Voltage: 3.3, 5 | Output Current: 7A, 3A | Output Power (W): 38.1 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-101 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 16.6A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-200 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 7A, 2.75A | Output Power (W): 56.1 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-306 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -5 | Output Current: 7A, 3A, 0.8A | Output Power (W): 63.1 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 13A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-201 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 7A, 3A | Output Power (W): 65 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-202 | Input Voltage: 90~264 | Output Voltage: 5, 15 | Output Current: 7A, 3A | Output Power (W): 65 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-203 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 7A, 2A | Output Power (W): 65 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-215 | Input Voltage: 90~264 | Output Voltage: 5, -24 | Output Current: 7A, 2A | Output Power (W): 65 | No. Outputs: D | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-300 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12 | Output Current: 7A, 3A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-301 | Input Voltage: 90~264 | Output Voltage: 5, 12, -5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-302 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-303 | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 6A, 3A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-304 | Input Voltage: 90~264 | Output Voltage: 5, 24, 24 | Output Current: 7A, 2A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-305 | Input Voltage: 90~264 | Output Voltage: 5, 24, -12 | Output Current: 6A, 2A, 0.8A | Output Power (W): 65 | No. Outputs: T | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-403 | Input Voltage: 90~264 | Output Voltage: 5, 24, 12, -12 | Output Current: 3.5A, 1.5A, 0.25A, 0.15A | Output Power (W): 65 | No. Outputs: M | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 11.60A | Output Power (W): 69.6 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 9.37A | Output Power (W): 75 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 6.66A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 6.15A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 5A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 3.80A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 2.96A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 2.42A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| DTIPU65-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 6.61" x 3.06" x 1.77" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48, 3.3, 5, -5, 12, -12, 15, -15, 24, -24 |
| Output Current: | 5.4A, 8.8A, 9.75A, 9.8A, 10A, 10.8A, 2~1.66A, 2.42~2A, 2.96~2.42A, 3.8~2.96A, 5~3.8A, 6.15~5A, 7.27~6.15A, 9.37~6.81A, 11.6A~ 8.7A, 13~10.8A, 16.6~10A |
| Output Power (Watts): | 38.1, 50, 56.1, 63.1, 65, 69.6, 75, 80 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 83% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.26~1.65 lbs. |

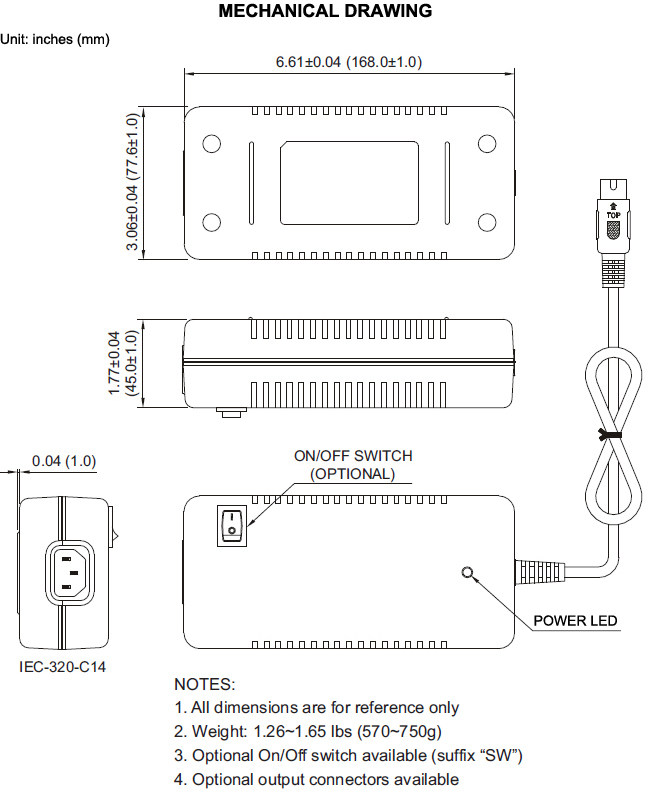

| Dimensions: | 6.61" x 3.06" x 1.77" (168 x 77.6 x 45 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (ex: 40~48VDC); the customer must specify what they would like the output voltage set at. 2. All models have PSE approvals except DTIPU65-215. 3. Models DTIPU65-105~111 have been approved by CEC Level V. 4. To order the supply with an On/Off switch; please add the suffix “SW” to the model number (Ex: DTIPU65-200SW). 5. Optional output connectors available. Please call factory for ordering details. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL60950-1: 2nd edition.), TUV/GS (EN60950-1: 2nd edition), CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1: 2nd Edition |
| Energy Star Compliance: | Level V |
