DTIPU45
The DTIPU45 series of AC DC desktop power supplies offers up to 50 watts of output power. This series consists of single, dual, and triple output models with a wide operating voltage of 80 to 275VAC. Each model has been burn-in tested and is equipped with an IEC-320-C14 input inlet while optional output connectors are available. This series also has UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, and EN60950-1:2006/A2:2013 safety approvals.
• Wide Operating Voltage 80~275VAC
• Input Frequency 47 to 63Hz
• IEC-320-C14 Input Inlet
• Optional Output Connectors Available
• Single, Dual, and Triple Outputs Available
• Level VI Approval For Dual and Triple
• RoHS Compliant
• Over Voltage, Short Circuit and Over Load Protection
• Class I
• High Efficiency up to 84.2%
• UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU45-216 | Input Voltage: 90~264 | Output Voltage: 5.1, 7.2 | Output Current: 1A, 2.6A | Output Power (W): 23.82 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-204 | Input Voltage: 90~264 | Output Voltage: 3.3, 5 | Output Current: 5A, 2A | Output Power (W): 26.5 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-101 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 6.66 A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-200 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 5A, 2A | Output Power (W): 40 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 5.25 A | Output Power (W): 42 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-201 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 5A, 2A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-202 | Input Voltage: 90~264 | Output Voltage: 5, 15 | Output Current: 5A, 1.5A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-203 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 5A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-209 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 3A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-210 | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: 2A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-215 | Input Voltage: 90~264 | Output Voltage: 5, -24 | Output Current: 5A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-300 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-301 | Input Voltage: 90~264 | Output Voltage: 5, 12, -5 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-302 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-303 | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-304 | Input Voltage: 90~264 | Output Voltage: 5, 24, -24 | Output Current: 5A, 1A, 0.5A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-305 | Input Voltage: 90~264 | Output Voltage: 5, 24, -12 | Output Current: 5A, 1A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-306 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -5 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 5.63~4A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 3.46 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 2.81 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 2.38 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 1.85 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 1.51 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 1.25 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU45-111 | Input Voltage: 90~264 | Output Voltage: 50 | Output Current: 1.25~1A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 3.3, 5, -5, 5.1, 7.2, 12, -12, 15, -15, 24, -24 |
| Output Current: | 3A, 3.6A, 4A, 6A, 6.5A, 6.8A, 7A, 7.8A, 8A, 8~6.66A, 7~5.25A, 5.63A~4A, 4~3.46, 3.46~2.81A, 3.12~2.38A, 2.3~1.85A, 1.85~1.51A, 1.51~1.25A, 1.25~1A |
| Output Power (Watts): | 23.82, 26.5, 40, 42, 45, 50 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | Up to 84.2% |
| Isolation: | 4242VDC |
| Environmental | |

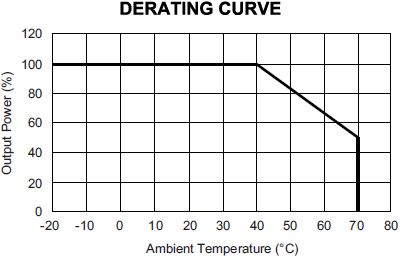

| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.17~1.23lbs (535~560g) |

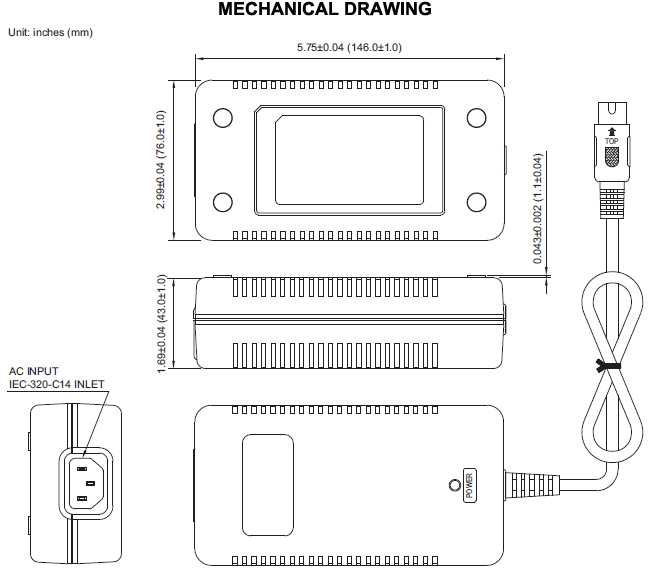

| Dimensions: | 5.75" x 2.99" x 1.69" (146 x 76 x 43 mm) |
| Notes & safety | |
| Notes: | (1) Single output models are not compliant with DoE VI. (2) Ripple is measured from peak to peak with a bandwidth-limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor). (3) Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed. (4) At factory, in 60% rated load condition, each output is checked to be within voltage accuracy. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (8) This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60950-1: 2nd Edition, CSA C22.2 No. 60950-1-07, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1: 2nd Edition |
| Energy Star Compliance: | Dual and Triple Outputs |
