DTIPU31
The DTIPU31 series of AC/DC desktop power supplies provides up to 30 Watts of continuous output power. All models have a single output, 90~264VAC input voltage range, -20°C ~ +70°C operating temperature range, and an IEC-320-C14 AC inlet connector for worldwide applications. All supplies are RoHS, Energy Star 2.0 Level V, and UL94V-1 compliant. The DTIPU31 series meets FCC Part-15 class B and CISPR-22 class B emission limits and has UL/cUL (UL 60950-1), CSA C22.2 No. 60950-1-07, and TUV/GS (EN 60950-1) safety approvals. These supplies also meet new CE requirements and are 100% burn-in tested. This series of AC/DC power supplies are a Class I Limited Power Source (LPS).
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU31-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 4.00 ~ 3.33 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 4.16 ~ 3.12 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 3.75 ~ 2.72 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 2.72 ~ 2.30 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 2.30 ~ 1.87 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.87 ~ 1.42 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 1.42 ~ 1.11 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 1.11 ~ 0.90 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.90 ~ 0.75 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| DTIPU31-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 0.75 ~ 0.60 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.17" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50 |
| Output Current: | 0.75~0.6A, 0.9~0.75A, 1.1~0.9A, 1.4~1.1A, 1.9~1.4A, 2.3~1.9A, 2.7~2.3A, 3.7~2.7A, 4.2~3.1A, 4~3.3A |
| Output Power (Watts): | 20, 25, 30 |
| General | |
| Efficiency: | 81% |
| Isolation: | 4242VDC |
| Environmental | |

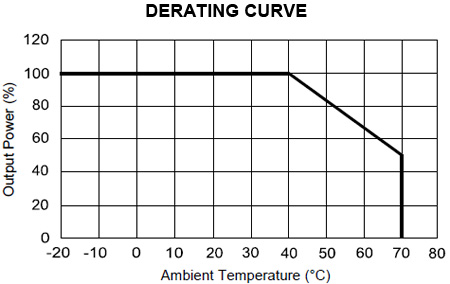

| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 9.35~9.88oz. |

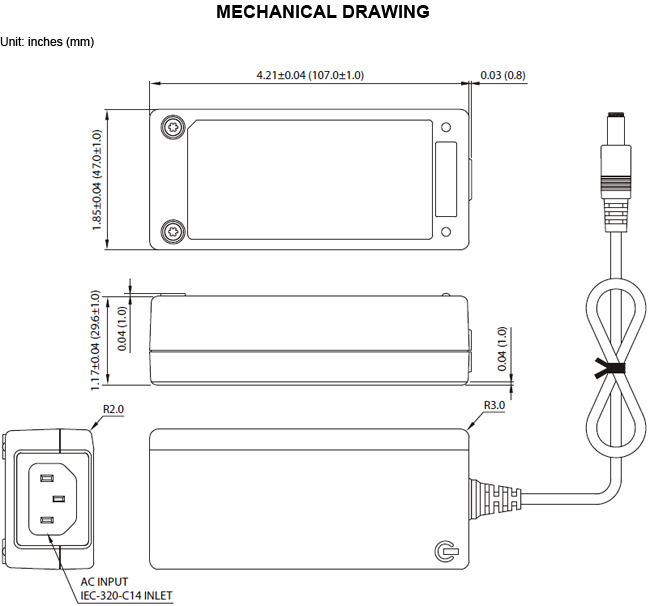

| Dimensions: | 4.21" x 1.85" x 1.17" (107.0 x 47.0 x 29.6 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (ex: 40~50VDC); the customer must specify what they would like the output voltage set at. Please call factory for more details. 2. Models with an output voltage under 15VDC have been approved by TUV/PSE. Models DTIPU31-104~111 have been approved by CEC Level V Model DTIPU31-106 has been approved by KC. 3. Models DTIPU31-102~105 need to use AWG#16/4FT output cable in order to meet the total regulation specified. Models DTIPU31-106~108 need to use AWG#18/4FT output cable in order to meet the total regulation specified. Models DTIPU31-109~111 need to use AWG#18/6FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA C22.2 No. 60950-1, TUV/GS EN 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN 60950-1 |
| Energy Star Compliance: | Level V |
