DTIPU25
The DTIPU25 series of AC/DC desktop power supplies provides up to 25 Watts of continuous output power. This series consists of single output models with a 80~275VAC input voltage range. Each model in this series is burn-in tested, has short circuit protection, and has optional output connectors available. The A and C type models of the DTIPU25 series meet IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN 62368-1: 2014, and J 62368-1 safety approvals, while the B type models meet UL 60950-1: 2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013, CSA C22.2 No. 60950-1-07 safety approvals.
• Class I for A & C Types; Class II for B Type • Burn-in Tested • A & C Types are Efficiency Level VI Compliant • Single Output Voltages Available from 5~ 48VDC • Wide Input Voltage Range: 80~275VAC • Short Circuit Protection • Efficiency up to 86.35% • -20°C to +70°C Operating Temperature Range • IEC-320-C14, IEC-320-C8, and IEC-320-C6 AC Inlets Available • A & C Types Meet IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN 62368-1: 2014, and J 62368-1 Safety Approvals • B Type Meets UL 60950-1: 2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013, CSA C22.2 No. 60950-1-07 Safety Approvals • Optional Output Connectors Available
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU25A-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2.75~2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2.75~2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2.75~2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25A-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25B-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTIPU25C-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/240 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 3.3~2.75A, 3.33~2.5A, 2.75~2A, 2.27~1.92A, 1.92~1.56A, 1.56~1.19A, 1.19~0.92A, 0.92~0.75A, 0.75~0.62A, 0.62~0.52A |
| Output Power (Watts): | 16.5, 20, 22, 25 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 86.35% |
| Environmental | |

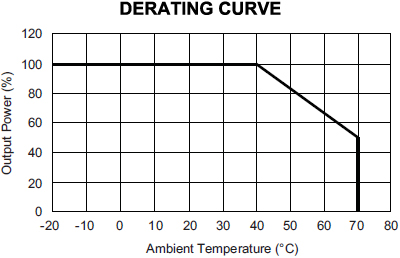

| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6 oz. |

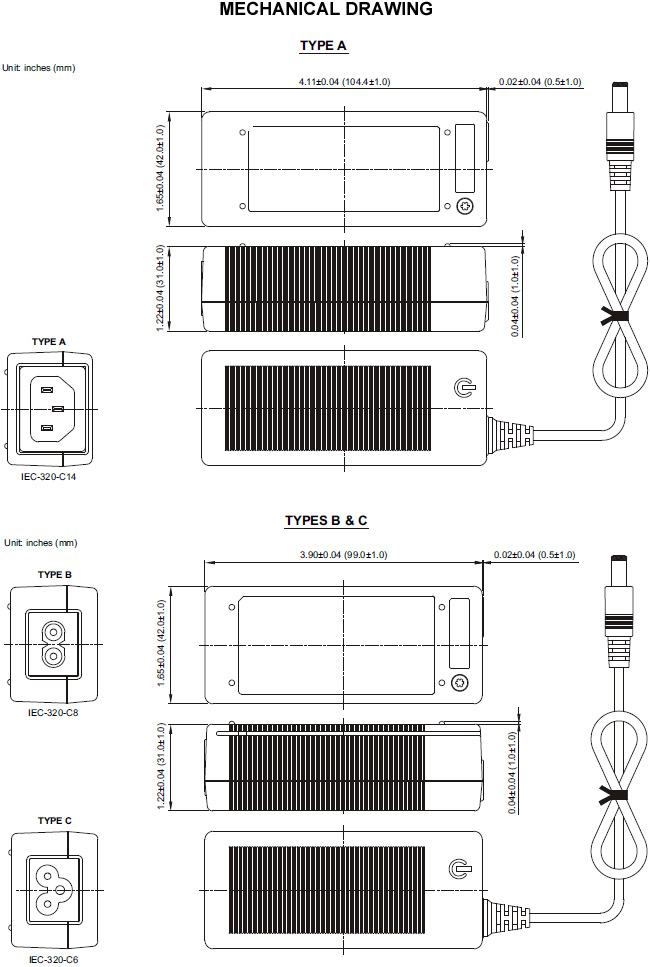

| Dimensions: | A Type: 4.11" x 1.65" x 1.22" (104.4 x 42.0 x 31.0 mm) B & C Types: 3.90" x 1.65" x 1.22" (99.0 x 42.0 x 31.0 mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when power supply starts up. Continually staying in rated load is not allowed. 2. Each output is checked to be within voltage accuracy in 60% rated load condition. 3. At factory, in 60% load condition, each output is checked to be within voltage accuracy. 4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 5. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 6. Ripple & Noise is measured from peak to peak with a bandwidth limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor). 7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 8. Optional output connectors are available. Contact sales for details. 9. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | A & C Type: IEC 62368-1 Edition 2.0, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN 62368-1: 2014, and J 62368-1 B Type: UL 60950-1: 2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2006/A2:2013, CSA C22.2 No. 60950-1-07 |
| RoHS Compliance: | Yes |
