DTIPU20

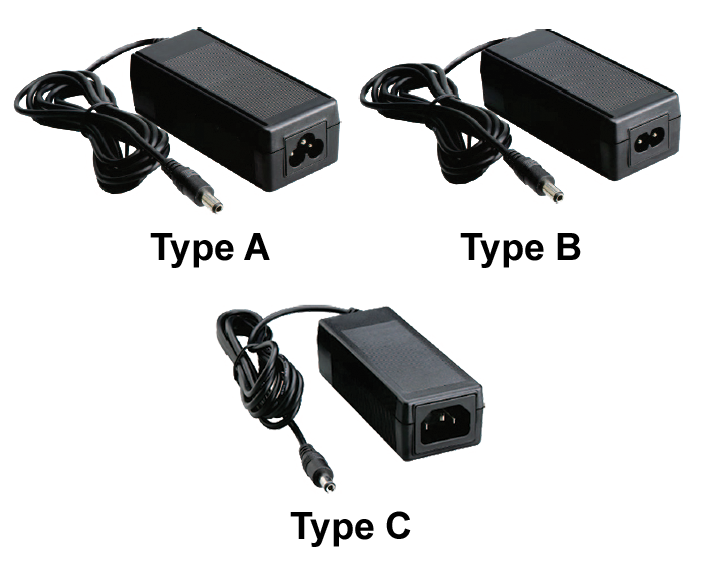

The DTIPU20 Series of AC/DC switching mode single output power supplies provides 20 watts of continuous output power. All models have a single output, universal input voltage range, and an operating temperature range of -20°C ~ +70°C. This series also has three types of AC inlet connectors to choose from: Type A (IEC-320-C6), Type B (IEC-320-C8), or Type C (I. All supplies are UL 94V-1 compliant. All models meet FCC Part-15 class B and CISPR-22 class B emission limits and are designed to comply with UL/cUL (UL 60950-1:2nd Edition), TUV/GS (EN 60950-1) safety approvals. All units are Energy Star VI compliant and are 100% burn-in tested.

• Wide Input Voltage Range of 90~264VAC • RoHS2 Compliant • Type B is a Class II System, Type A and C are Class I Systems • Optional Output Connectors are Available • Level VI Compliant • 3 AC Inlets Available: IEC-320-C6, IEC-320-C8, or IEC-320-C14 • Short Circuit Protection • 100% Burned-In Tested • UL/cUL (UL 60950-1:2nd Edition), TUV/GS (EN60950-1: 2nd Edition, CE, CB, and FCC Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTIPU20B-102 Input Voltage: 90~264 Output Voltage: 5~6 Output Current: 2.50A~3.00A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-102 Input Voltage: 90~264 Output Voltage: 5~6 Output Current: 2.50A~3.00A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-103 Input Voltage: 90~264 Output Voltage: 6~8 Output Current: 1.87A~2.30A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-103 Input Voltage: 90~264 Output Voltage: 6~8 Output Current: 1.87A~2.30A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-102 Input Voltage: 90~264 Output Voltage: 5~6 Output Current: 2.50A~3.00A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-103 Input Voltage: 90~264 Output Voltage: 6~8 Output Current: 1.87A~2.30A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-105 Input Voltage: 90~264 Output Voltage: 11~13 Output Current: 1.53A~1.81A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-106 Input Voltage: 90~264 Output Voltage: 13~16 Output Current: 1.25A~1.53A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-108 Input Voltage: 90~264 Output Voltage: 21~27 Output Current: 0.74A~0.95A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-109 Input Voltage: 90~264 Output Voltage: 27~33 Output Current: 0.60A~0.74A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-111 Input Voltage: 90~264 Output Voltage: 40~50 Output Current: 0.40A~0.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-105 Input Voltage: 90~264 Output Voltage: 11~13 Output Current: 1.53A~1.81A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-106 Input Voltage: 90~264 Output Voltage: 13~16 Output Current: 1.25A~1.53A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-108 Input Voltage: 90~264 Output Voltage: 21~27 Output Current: 0.74A~0.95A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-109 Input Voltage: 90~264 Output Voltage: 27~33 Output Current: 0.60A~0.74A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-111 Input Voltage: 90~264 Output Voltage: 40~50 Output Current: 0.40A~0.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-104 Input Voltage: 90~264 Output Voltage: 8~11 Output Current: 1.81A~2.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-110 Input Voltage: 90~264 Output Voltage: 33~40 Output Current: 0.50A~0.60A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20A-107 Input Voltage: 90~264 Output Voltage: 16~21 Output Current: 0.95A~1.25A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-104 Input Voltage: 90~264 Output Voltage: 8~11 Output Current: 1.81A~2.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-107 Input Voltage: 90~264 Output Voltage: 16~21 Output Current: 0.95A~1.25A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20B-110 Input Voltage: 90~264 Output Voltage: 33~40 Output Current: 0.50A~0.60A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-104 Input Voltage: 90~264 Output Voltage: 8~11 Output Current: 1.81A~2.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-105 Input Voltage: 90~264 Output Voltage: 11~13 Output Current: 1.53A~1.81A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-106 Input Voltage: 90~264 Output Voltage: 13~16 Output Current: 1.25A~1.53A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-107 Input Voltage: 90~264 Output Voltage: 16~21 Output Current: 0.95A~1.25A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-108 Input Voltage: 90~264 Output Voltage: 21~27 Output Current: 0.74A~0.95A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-109 Input Voltage: 90~264 Output Voltage: 27~33 Output Current: 0.60A~0.74A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-110 Input Voltage: 90~264 Output Voltage: 33~40 Output Current: 0.50A~0.60A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
DTIPU20C-111 Input Voltage: 90~264 Output Voltage: 40~50 Output Current: 0.40A~0.50A Output Power (W): 20 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 120
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50
Output Current: 0.50A, 0.60A, 0.74A, 0.95A, 1.25A, 1.53A, 1.81A, 2.50A, 2.30A, 3.00A
Output Power (Watts): 15, 20
Short Circuit Protection: Automatic Recovery
General
Efficiency: 76-85%
Isolation: 4242VDC
Environmental
Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 6 oz. (170g)

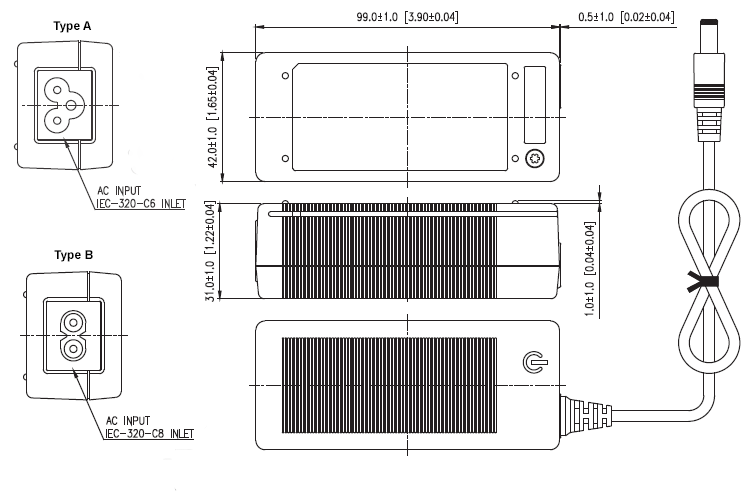

Dimensions: Type A and Type B: 3.9" x 1.65" x 1.22" (99 x 42 x 31 mm)
Type C: 4.11" x 1.65" x 1.22" (104.4 x 42 x 31mm)
Notes & safety
Notes: 1. “X” in model number indicates the AC Inlet type. “X” can either be “A” for IEC-320-C6, “B” for IEC-320-C8, or “C” for IEC-320-C14.
2. Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is not allowed.
3. Each output is checked to be within voltage accuracy in 60% rated load condition
4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
5. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
6. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
5. Optional output connectors are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/c-UL (UL 60950-1:2nd Edition), TUV/GS (EN60950-1:2nd Edition), CE, CB, FCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS EN60950-1
Energy Star Compliance: Level VI
