DTICP12
The DTICP12 series of AC DC desktop power supplies provides up to 12 watts of output power in a 2.32″ x 1.61″ x 1.04″ package. This series offers use in a variety of applications, has a wide input range of 90-264VAC and single output models ranging from 5V-24V. All models are protected against short circuit, input, and over current conditions and are energy Efficiency Level VI and RoHS compliant. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTICP12-090-1200 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 1200mA | Output Power (W): 10.8 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| DTICP12-190-600 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 600mA | Output Power (W): 11.4 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| DTICP12-050-2400 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2400mA | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| DTICP12-075-1600 | Input Voltage: 90~264 | Output Voltage: 7.5 | Output Current: 1600mA | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| DTICP12-120-1000 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1000mA | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| DTICP12-240-500 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 2.32" x 1.61" x 1.04" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 9, 12, 19, 24 |
| Output Current: | 2400mA, 1600mA, 1200mA, 1000mA, 600mA, 500mA |
| Output Power (Watts): | 10.8, 11.4, 12 |
| Short Circuit Protection: | 3.6A Inner Current Fuse |
| General | |
| Environmental | |
| Operating Temperature: | 10 to 40°C |
| Storage Temperature: | -20 to 80°C |
| Physical | |
| Weight: | 3.53oz (100g) |

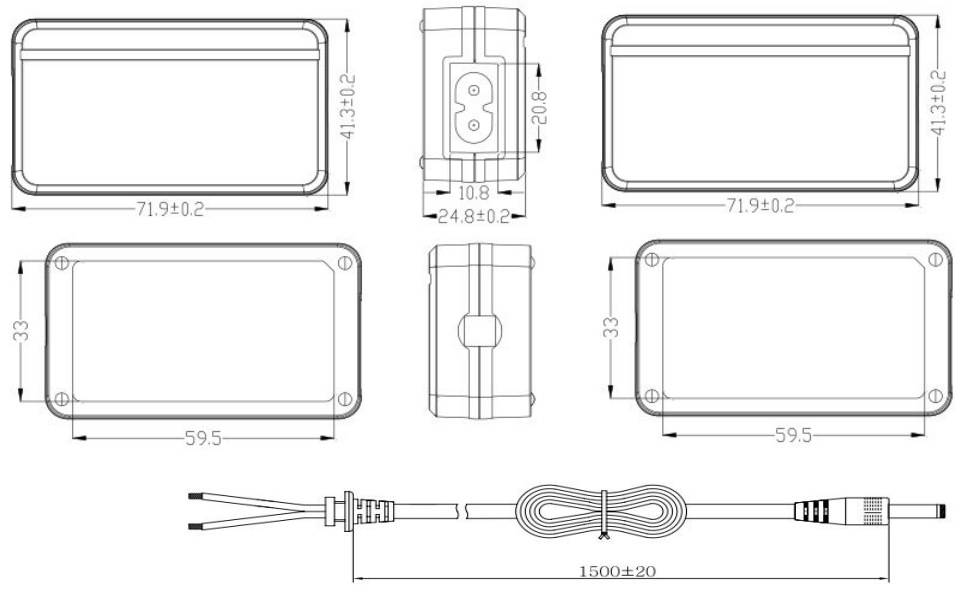

| Dimensions: | 2.32" x 1.61" x 1.04" |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL, FCC, CE, CB, GS, RCM (SAA, C-Tick) |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
