DTGPSU40
The DTGPSU40 series of AC/DC desktop power supplies provides up to 45 watts of continuous output power. All models have a single output and a universal input. This series has four types of AC inlet connectors to choose from: IEC-320-C14, IEC-320-C8, IEC-320-C6, and MANS cord. All supplies are CEC, PSE, and Energy Level VI compliant. These supplies also have short circuit, over voltage, and over current protection. This series has UL60950-1; CSA C2.22, EN60950-1, IEC60950-1, and J60950-1 safety approvals. Optional output connectors are also available. Please call factory for order details.
• Universal Input Voltage
• Meets Energy Star VI
• Meets CEC(2008)/EISA
• PSE Approval
• Short Circuit, Over Voltage and Over Current Protection
• Optional Output Connectors Available
• Passes LPS 11~50V
• Up to 45 Watts of Output Power
• Four AC Inlets Available: IEC-320-C14, IEC-320-C8, IEC-320-C6, or MANS cord
• UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 Safety Approvals
Part Number Setup:
X: "A" for IEC-320-C14 Inlet, "B" for IEC-320-C8 Inlet, or "C" for IEC-320-C6 Inlet, or "D" for MANS Cord Input.
Y: "U1" for 3 Pin USA type AC power cord, "U" for 2 Pin US type AC power cord, or "E" for European type power cord
X: "A" for IEC-320-C14 Inlet, "B" for IEC-320-C8 Inlet, or "C" for IEC-320-C6 Inlet, or "D" for MANS Cord Input.
Y: "U1" for 3 Pin USA type AC power cord, "U" for 2 Pin US type AC power cord, or "E" for European type power cord
Example:
DTGPSU40B-1 = 5VDC Output with IEC-320-C8 Inlet
DTGPSU40B-1 = 5VDC Output with IEC-320-C8 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTGPSU40X-1 | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 5.00~4.17A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-1-Y | Input Voltage: 100~240 | Output Voltage: 5 | Output Current: 5.00~4.17A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-1-1-Y | Input Voltage: 100~240 | Output Voltage: 6 | Output Current: 5.00~3.75A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-1-1 | Input Voltage: 100~240 | Output Voltage: 6 | Output Current: 5.00~3.75A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-2-Y | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 4.38~3.18A | Output Power (W): 35 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-2 | Input Voltage: 100~240 | Output Voltage: 9 | Output Current: 4.38~3.18A | Output Power (W): 35 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-3 | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 3.64~3.08A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-3-Y | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 3.64~3.08A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-4-Y | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 3.08~2.50A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-4 | Input Voltage: 100~240 | Output Voltage: 15 | Output Current: 3.08~2.50A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-5 | Input Voltage: 100~240 | Output Voltage: 18 | Output Current: 2.82~2.15A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-5-Y | Input Voltage: 100~240 | Output Voltage: 18 | Output Current: 2.82~2.15A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-6-Y | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 2.15~1.67A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-6 | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 2.15~1.67A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-7 | Input Voltage: 100~240 | Output Voltage: 30 | Output Current: 1.67~1.37A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-7-Y | Input Voltage: 100~240 | Output Voltage: 30 | Output Current: 1.67~1.37A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40X-8 | Input Voltage: 100~240 | Output Voltage: 48 | Output Current: 1.37~0.90A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSU40D-8-Y | Input Voltage: 100~240 | Output Voltage: 48 | Output Current: 1.37~0.90A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60Hz |
| Output | |
| Output Voltage: | 5, 6, 9, 12, 15, 18, 24, 30, 48 |
| Output Current: | 5.00~4.17A, 5.00~3.75A, 4.38~3.18A, 3.64~3.08A, 3.08~2.50A, 2.82~2.15A, 2.15~1.67A, 1.67~1.37A, 1.37~0.90A |
| Output Power (Watts): | 25, 30, 35, 40, 45 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected by Zener Diode 110-140% |
| General | |
| Efficiency: | Up to 86.03% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Approx. 8.82~14.11oz(250~400g) |
| Dimensions: | 4.23in x 2.64in x 1.42in (107.5mm x 67mm x 36mm) |
| Notes & safety | |

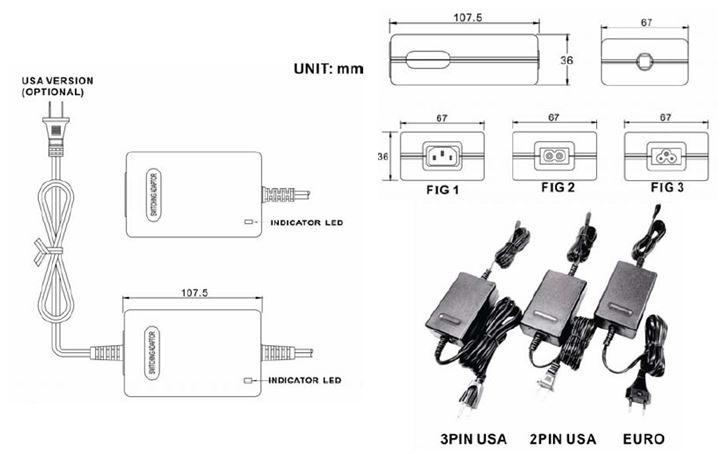

| Notes: | (1) X can be A for IEC-320-C14 (FIG1), B for IEC-320-C8 (FIG2), or C for IEC-320-C6 (FIG3), or D for MANS Cord Input. (2) Y can be U1 for 3 Pin USA type AC power cord (with FG), U for 2 Pin US type AC power cord, or E for European type power cord. (3) “*” next to Model Name indicated no LPS safety. (4) Efficiency is the average efficiency measured at 25%, 50%, 75%, and 100% load. (5) All specifications in the rating charts are measured at the preset output voltage. (6) Optional output connectors are available. Please call factory for ordering details. (7) Standard Output Cable: 5~11V: SPT-2, 16AWG, 4FT 11~50V: SPT-1, 18AWG, 6FT (8) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2 , EN60950-1, IEC60950-1, J60950-1 |
| Energy Star Compliance: | Level VI |
