DTGPSU30X-CC

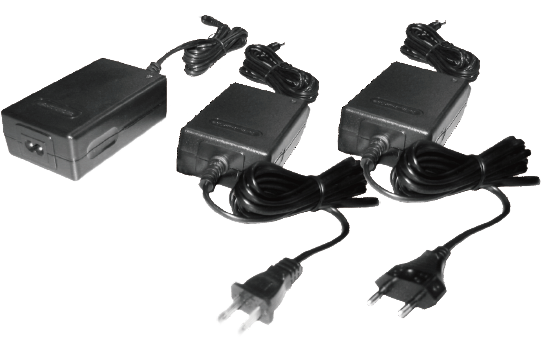

The DTGPSU30X-CC series of AC/DC desktop power supplies offers up to 30 watts of output power in a 4.23” x 2.64” x 1.42” package. This series consists of single output models with a universal input voltage range of 100~240VAC and constant voltage and constant current. Either IEC0-320-C8, US, or EU plugs are available as well as optional output connectors. This series has over voltage, over current, short circuit, and over temperature protection as well as UL 60950-1; CSA C22.2, EN60950-1, and IEC60950-1 safety approvals. Please call factory for order details.

• Universal Input Voltage Range of 100~240VAC • 2 Color LED Indicator for Loading Status • IEC-320-C8, US Plug, and EU Plug Inlets • Class 2 • Constant Voltage & Constant Current • Over Voltage, Over Current, Short Circuit, and Over Temperature Protection • Optional Output Connectors Available • UL 60950-1; CSA C22.2, EN60950-1, and IEC60950-1 Safety Approvals
Part Number Setup:
X: “B” for IEC-320-C8, “U” for 2-Pin American plug type, or “E” for European plug type.
Example:
DTGPSU30E-0-CC = 3~5VDC Output Model with European Plug
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTGPSU30X-0-CC Input Voltage: 100~240 Output Voltage: 3~5 Output Current: 4A Output Power (W): 20 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
DTGPSU30X-1-1-CC Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 3.60A Output Power (W): 21.60 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
DTGPSU30X-1-CC Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 4.00A Output Power (W): 22.38 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
DTGPSU30X-5-CC Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 1.68A Output Power (W): 27 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
DTGPSU30X-4-CC Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 2.30A Output Power (W): 30 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
DTGPSU30X-6-CC Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 1.11A Output Power (W): 30 No. Outputs: S Case: Desktop Size: 4.23" x 2.64" x 1.42" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50 to 60Hz
Output
Output Voltage: 3~5, 5~6, 6~8, 8~11, 13~16, 16~21, 27~33
Output Current: 1.11A, 1.68A, 2.30A, 3.15A, 3.60A, 4.00A
Output Power (Watts): 20, 21.60, 22.38, 25.20, 27, 30
Short Circuit Protection: Yes
Over Voltage Protection: 110~135% Rated Output Voltage
Thermal Protection: 140C±10ºC
General
Efficiency: Up to 80%
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 10.58~14.11oz (300~400g)
Dimensions: 4.23in x 2.64in x 1.42in (107.5mm x 67mm x 36mm)
Notes & safety
Notes: 1. “X” in model number indicates inlets. “X” can either be “B” for IEC-320-C8, “U” for 2-Pin American plug type, or “E” for European plug type.
2. Optional output connectors.
3. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 60950-1; CSA C22.2, EN60950-1, IEC60950-1
