DTGPSU25

The DTGPSU25 series of AC DC desktop power supplies offers up to 25 watts of output power in a 3.94” x 2.3” x 1.29” package. This series consists of single output models with a universal input range of 100~240VAC and output voltages ranging from 5V~48V. There are 3 AC Inlets available for this series: IEC-320-C14, IEC-320-C8, IEC-320-C6, and multiple different output connectors are also available. This series has high efficiency and low leakage current, as well as short circuit, over voltage, and over current protection. All models are Level VI compliant and UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 safety approvals. Please call factory for order details.

• Universal Input Voltage of 100~240VAC • Single Outputs • Outputs Ranging from 5V~48V • Low Leakage Current of <0.25mA • High Efficiency up to 86.97% • Optional Output Connectors Available • Meets EISA 2007/DoE (VI) & EU ErP/ CoC (5) • Short Circuit, Over Voltage, and Over Current Protection • 3 AC Inlets Available: IEC-320-C14, IEC-320-C8, or IEC-320-C6 • UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 Safety Approvals
Part Number Setup:
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet
Example:
DTGPSU25C-2 = 8~11VDC Output with IEC-320-C6 Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTGPSU25x-1 Input Voltage: 100~240 Output Voltage: 5~6 Output Current: 3.33~4A Output Power (W): 20 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-1-1 Input Voltage: 100~240 Output Voltage: 6~8 Output Current: 2.75~3.66A Output Power (W): 22 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-2 Input Voltage: 100~240 Output Voltage: 8~11 Output Current: 2.27~3.125A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 1.92~2.27A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 1.56~1.92A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 1.19~1.56A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 0.926~1.19A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 0.757~0.926A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
DTGPSU25x-8 Input Voltage: 100~240 Output Voltage: 33~58 Output Current: 0.43~0.757A Output Power (W): 25 No. Outputs: S Case: Desktop Size: 3.94" x 2.3" x 1.29" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47~63Hz
Output
Output Voltage: 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58
Output Current: 3.33~4A, 2.75~3.66A, 2.27~3.125A, 1.92~2.27A, 1.56~1.92A, 1.19~1.56A, 0.926~1.19A, 0.757~0.926A, 0.43~0.757A
Output Power (Watts): 20, 22, 25
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Protected by Zener Diode, 110-140%
General
Efficiency: Up to 86.35%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 85°C
Physical
Weight: 5.29~6oz (150~170g)

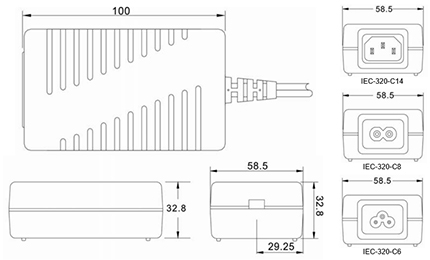

Dimensions: 3.94" x 2.3" x 1.29"
Notes & safety
Notes: (1) “x” in the model number represents AC Inlet options. “x” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6.
(2) Avg. Efficiency: Averages the efficiency at 25, 50, 75, and 100% of max. rated output current.
(3) Optional output connectors available.
Standard Output Cable: 5~13V: UL1571, 16AWG, 1M
13~21V: UL2468, 18AWG, 6FT
21~58V: UL2468, 20AWG, 6FT
Please call factory for order details.
(4) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1, CSA C22.2, EN60950-1, IEC60950-1, J60950-1
TUV Efficiency Level: TUV
Energy Star Compliance: Level VI
