DTGPSU15
The DTGPSU15 series of AC DC desktop power supplies offers up to 15 watts of output power in s a compact 3.94” x 2.3” x 1.29in package. This series consists of single output models with an input voltage range of 100~240VAC and output voltages ranging from 3~48VDC. Many options are available for this series: AC Inlet of IEC-320-C14, IEC-320-C8, or IEC-320-C6, output connectors, and either a US main cord input or EU main cord input. Each model, except the 3.3V model, is Energy Level VI compliant and has UL60950-1, CSA C22.2, EN60950-1 and IEC60950-1 safety approvals. Please call factory for ordering details.
• Universal Input Voltage Range of 100~240VAC
• Compact Package
• High Efficiency up to 84.50%
• Single Outputs
• All Models are Level VI Compliant
• Optional Output Connectors Available
• US or EU Main Cord Input Available
• IEC-320-C14, IEC-320-C8, or IEC-320-C6 Inlets Available
• Short Circuit, Over Voltage, and Over Current Protection
• UL60950-1; CSA C22.2, EN60905-1, and IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTGPSU15A-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.4~2A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.4~2A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.4~2A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2~1.5A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2~1.5A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2~1.5A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.4~2A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 2.4~2A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2~1.5A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2~1.5A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15A-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45~0.31A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15B-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45~0.31A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15C-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45~0.31A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 1.80~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.36~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.15~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 0.94~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.72~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.55~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15D-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45~0.31A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| DTGPSU15E-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.45~0.31A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.54" x 2.3" x 1.29" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 0.31~0.45A, 0.45~0.55A, 0.55~0.72A, 0.72~0.94A, 0.94~1.15A, 1.15~1.36A, 1.36~1.80A, 1.50~2.00A, 2.00~2.40A |
| Output Power (Watts): | 12, 15 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Protected by Zener Diode |
| General | |
| Efficiency: | Up to 84.13% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 3.53~8.82oz (100~250g) |

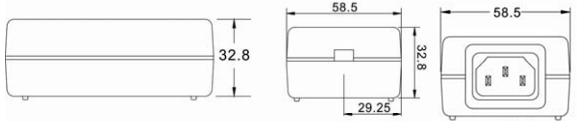

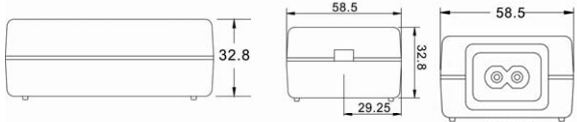

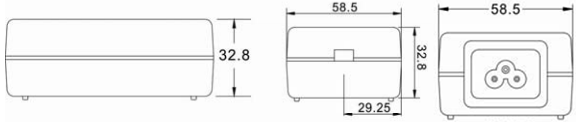

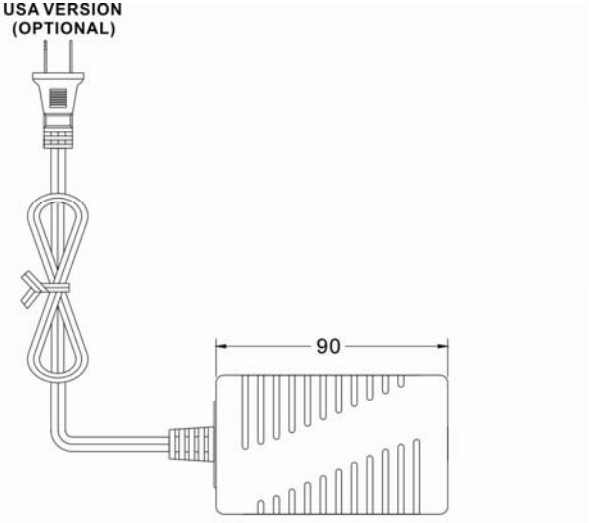

| Dimensions: | A, B, and C Types: 3.94" x 2.3" x 1.29" D and E Types: 3.54" x 2.3" x 1.29" |
| Notes & safety | |
| Notes: | (1) “x” In model number indicates AC Inlet Type. “x” can either be “A” for IEC-320-C14 inlet, “B” for IEC-320-C8, or “C” for IEC-320-C6, “D” for USA plug type, or “E” for EU plug type. (2) Avg. Efficiency: Averages the efficiency at 25, 50, 75, and 100% of max. rated output current. (3) Standard Output Cables: 5~13V: UL1185, 18AWG, 4FT 13~48V: UL1185, 20AWG, 6FT Other output cables available. Please call factory for details. (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2, EN60950-1, IEC60950-1 |
| Energy Star Compliance: | Level VI |
