DTGPSN25
The DTGPSN25 series of AC/DC desktop power supplies provides up to 37.77 watts of output power in a 4.23″ x 2.64″ x 1.42″ package. This series consists of both dual and triple output models and a universal input voltage range of 100~24VAC. Three different input inlets are available for this series: IEC-320-C14, IEC-320-C8, and IEC-320-C6, and both US and European cords are also available. The DTGPSN25 series is protected against short circuit, over voltage, and over load conditions and has high efficiency up to 83.34%. This series has UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 safety approvals. Please call factory for order details.
• Universal Input Voltage Range of 100~240VAC
• Meets EISA 2007/DoE (VI)
• Dual and Triple Outputs
• Optional Output Connectors Available
• IEC-320-C14, IEC-320-C8, and IEC-320-C6 AC Input Inlets
• US or European Cord Types Available
• Short Circuit, Over Voltage, and Over Load Protection
• Leakage Current for Class I <3.5mA
• Leakage Current for Class II <0.25mA
• High Efficiency up to 83.34%
• Up to 37.77 Watts Output Power
• UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, and J60950-1 Safety Approvals
Part Number Setup:
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet
Example:
DTGPSN25B-13A = 5, 12, -5 Triple Output with IEC-320-C8 Inlet
DTGPSN25B-13A = 5, 12, -5 Triple Output with IEC-320-C8 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTGPSN25x-13A | Input Voltage: 100~240 | Output Voltage: 5, 12, -5 | Output Current: 2.5A, 1.2A, 0.3A | Output Power (W): 28.1 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-13AY | Input Voltage: 100~240 | Output Voltage: 5, 12, -5 | Output Current: 2.5A, 1.2A, 0.3A | Output Power (W): 28.1 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-14E | Input Voltage: 100~240 | Output Voltage: 5, 15, -15 | Output Current: 2.5A, 0.8A, 0.3A | Output Power (W): 28.4 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-14EY | Input Voltage: 100~240 | Output Voltage: 5, 15, -15 | Output Current: 2.5A, 0.8A, 0.3A | Output Power (W): 28.4 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-13D | Input Voltage: 100~240 | Output Voltage: 5, 12, -12 | Output Current: 2.5A, 1A, 0.3A | Output Power (W): 29 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-13DY | Input Voltage: 100~240 | Output Voltage: 5, 12, -12 | Output Current: 2.5, 1A, 0.3A | Output Power (W): 29 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-14A | Input Voltage: 100~240 | Output Voltage: 5, 15, -5 | Output Current: 2.5A, 1A, 0.3A | Output Power (W): 29 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-14AY | Input Voltage: 100~240 | Output Voltage: 5, 15, -5 | Output Current: 2.5A, 1A, 0.3A | Output Power (W): 29 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-13 | Input Voltage: 100~240 | Output Voltage: 5, 12 | Output Current: 2.5A, 1.5A | Output Power (W): 30.5 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-13Y | Input Voltage: 100~240 | Output Voltage: 5, 12 | Output Current: 2.5A, 1.5A | Output Power (W): 30.5 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-14 | Input Voltage: 100~240 | Output Voltage: 5, 15 | Output Current: 2.5A, 1.2A | Output Power (W): 30.5 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-14Y | Input Voltage: 100~240 | Output Voltage: 5, 15 | Output Current: 2.5A, 1.2A | Output Power (W): 30.5 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-16Y | Input Voltage: 100~240 | Output Voltage: 5, 24 | Output Current: 2.5A, 0.8A | Output Power (W): 31.7 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25x-16 | Input Voltage: 100~240 | Output Voltage: 5, 24 | Output Current: 2.5A, 0.8A | Output Power (W): 31.7 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN36x-58F | Input Voltage: 100~240 | Output Voltage: 16~21, 48~58, -16~-21 | Output Current: 1.05~0.8A, 87~72mA, 1.05~0.8A | Output Power (W): 37.77 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTGPSN25D-58FY | Input Voltage: 100~240 | Output Voltage: 16~21, 48~58, -16~-21 | Output Current: 1.05~0.8A, 87~72mA, 1.05~0.8A | Output Power (W): 37.77 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60 |
| Output | |
| Output Voltage: | 16~21, 48~58, -16~-21, 5, -5, 12, -12, 15, -15, 24 |
| Output Current: | 2.5A, 1.5A, 1.2A, 1A, 0.3A, 0.8A, 1.05~0.8A, 87~87mA, 1.05~0.8A |
| Output Power (Watts): | 28.1, 28.4, 29, 30.5, 31.7, 37.77 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Zener Diode, 110-140% |
| General | |
| Efficiency: | Up to 83.34% |
| Environmental | |
| Operating Temperature: | -20 - 70°C |
| Storage Temperature: | -40-85°C |
| Physical | |
| Weight: | 11.29~14.82oz (320-420g) |

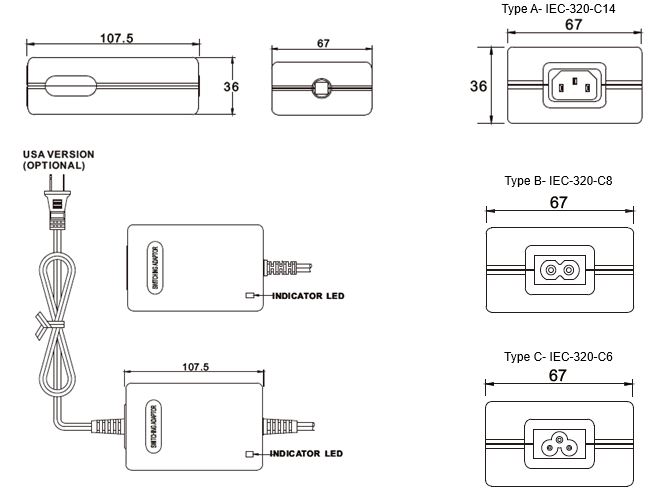

| Dimensions: | 4.23in x 2.64in x 1.42in (107.5mm x 67mm x 36mm) |
| Notes & safety | |
| Notes: | (1) “x" in model number represents the AC input inlet. “x” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6. (2) “y” in the “D” models stands for cord type. “y” can either be “U” for US cord or “E” for European cord. (3) Avg. Efficiency averages the efficiency at 25, 50, 75, and 100% of max. rated output current. (4) Safety approval 0 to 40ºC. (5) Standard Output Cable: UL2464, 5FT (6) Optional output connectors available. (7) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2, EN60950-1, IEC60950-1, J60950-1 |
| Energy Star Compliance: | Level VI |
