DTEM1120
The DTEM1120 series of medical AC/DC desktop power supplies provides up to 130 Watts of continuous output power in a 7.05” x 2.53” x 1.57” package. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS, WEEE, and Energy Star/CEC Level V compliant and has UL/cUL 60601-1, EN 60601-1, and IEC 60601-1 medical approvals. All models are protected against over voltage, over current, and short circuit conditions. This series also has three AC inlet connector types available: IEC-320-C14, IEC-320-C8, and IEC-320-C6. Optional output connectors are also available please call factory for ordering details.
• Single Outputs
• Energy Star/CEC Level V Compliant
• RoHS & WEEE Compliant
• 100~240VAC Input Voltage Range
• Short Circuit and Over Voltage Protection
• IEC-320-C14, IEC-320-C8, & IEC-320-C6 AC Inlets
• UL/cUL 60601, EN 60601-1, & IEC 60601-1 Approvals
• Optional Output Connectors Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEM11201E | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 8.34A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202E | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 8.34A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203E | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 8.34A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11201C | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 9.17A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11201F | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.11A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202C | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 9.17A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202F | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.11A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203C | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 9.17A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203F | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.11A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11201A | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11201D | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.5A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202A | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202D | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.5A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203A | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203D | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 6.5A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11201B | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 7A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11202B | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 7A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| DTEM11203B | Input Voltage: 100~240 | Output Voltage: 18~24 | Output Current: 7A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.05" x 2.53" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 12~17, 18~24 |
| Output Current: | 6.5A, 6.11A, 7A, 8.34A, 9.17A, 10A |
| Output Power (Watts): | 100, 110, 120, 130 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.55 lbs |

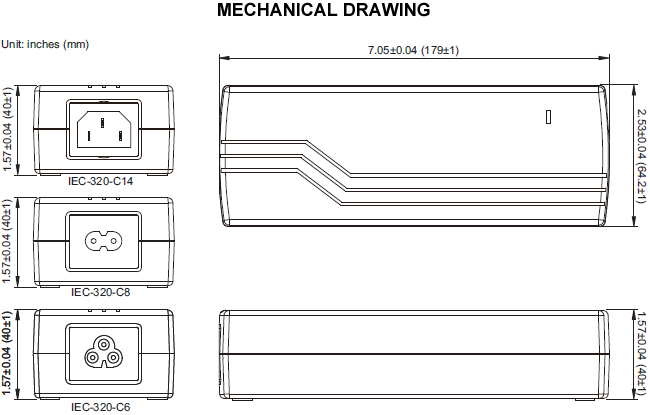

| Dimensions: | 7.05" x 2.53" x 1.57" (179 x 64.2 x 40 mm) |
| Notes & safety | |
| Notes: | 1. The number in red represents the type of AC inlet connector: “1” is for IEC-320-C14 type, “2” is for IEC-320-C8 type, and “3” is for IEC-320-C6 type. 2. The output voltage is specified as a range (Ex: 18~24VDC); the customer must specify what they want the voltage set at. 3. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel across the output. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60601, EN 60601-1, & IEC 60601-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
