DTEA1210
The DTEA1210 series of AC/DC desktop power supplies provides up to 200 watts of output power. All models have a single output and a 90~264VAC input voltage range. This series is CEC compliant (optional), RoHS compliant, and has over voltage and short circuit protection. This series has two AC inlet connector types available: IEC-320-C14 and IEC-320-C6. Optional output connectors are available please call factory for ordering details.
● Class I
● Single Output
● Economy Type
● Fan-less Operation
● MTBF > 30,000 Hours
● CEC and RoHS Compliance
● Over Voltage and Over Current Protective Installation
● IEC-320-C14 and IEC-320-C6 AC Inlet Connectors Available
Part Number Setup:
x: “1” for IEC-320-C14 AC Inlet or “3” for IEC-320-C6 AC Inlet
x: “1” for IEC-320-C14 AC Inlet or “3” for IEC-320-C6 AC Inlet
Example:
DTEA12101D-180 = 18VDC Output with IEC-320-C14 AC inlet connector
DTEA12101D-180 = 18VDC Output with IEC-320-C14 AC inlet connector
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA1210xB-120 | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xA-120 | Input Voltage: 100~240 | Output Voltage: 12 | Output Current: 15.0A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xD-180 | Input Voltage: 100~240 | Output Voltage: 18 | Output Current: 10.0A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xF-190 | Input Voltage: 100~240 | Output Voltage: 19 | Output Current: 9.47A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xH-200 | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 9.0A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xN-240 | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 7.5A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xC-180 | Input Voltage: 100~240 | Output Voltage: 18 | Output Current: 10.52A | Output Power (W): 190 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xE-190 | Input Voltage: 100~240 | Output Voltage: 19 | Output Current: 10.52A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xG-200 | Input Voltage: 100~240 | Output Voltage: 20 | Output Current: 10.0A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| DTEA1210xM-240 | Input Voltage: 100~240 | Output Voltage: 24 | Output Current: 8.33A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.17" x 3.15" x 1.73" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 - 60Hz (47-63Hz limit) |
| Output | |
| Output Voltage: | 12, 18, 19, 20, 24 |
| Output Current: | 8.33A, 7.5A, 9A, 9.47A, 10A, 10.52A, 15A, 12.5A |
| Output Power (Watts): | 150, 180, 190, 200 |
| Short Circuit Protection: | Latch Off |
| Over Voltage Protection: | Latch Off |
| General | |
| Efficiency: | 85% |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 35.27 oz. |

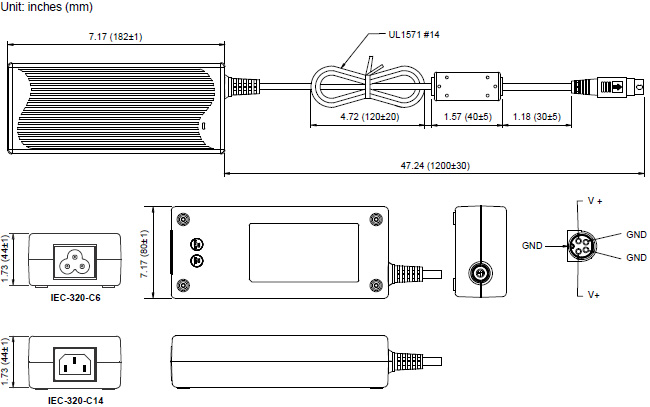

| Dimensions: | 7.17" x 3.15" x 1.73" (182 x 80 x 44 mm) |
| Notes & safety | |
| Notes: | 1. The red numbers represent the type of AC inlet connector: “1” is for IEC-320-C14 AC inlet connector and “3” is for IEC-320-C6 AC inlet. 2. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum capacitors in parallel. 3. Line regulation is defined by changing ±10% of input voltage from nominal line and rated load. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950, UL60065, EN/IEC 60065, CB, CE, FCC, CCC, Argentina |
| RoHS Compliance: | Yes |
