DTEA1170

The DTEA1170 series of AC/DC desktop power supplies provides up to 180 Watts of continuous output power. All models have a single output and a wide input voltage range of 100~240VAC. This series is Energy Star Level VI, CEC and RoHS compliant and has over voltage, over current, over temperature and short circuit protection. This series also has four AC inlet connector types available: IEC-320 C14, C8, C6, and C18. Optional output connectors are also available. Please call factory for ordering details.

• Active PFC Function • CEC Compliant • RoHS Compliant • Four AC Inlets Available: IEC320 C14, C8, C6, C18 • MTBF >30,000 • Short Circuit, Over Voltage, Over Current, and Over Temperature Protection • LED Indication • UL/cUL UL60950, CB, FCC, and CCC Safety Approvals

Part Number Setup:
X: "1" for C14 Inlet, "2" for C8 Inlet, "3" for C6 Inlet, or "6" for C18 Inlet

Example:
DTEA11706A = 12~16VDC Output Model with C18 Inlet

Get a Quote Request a Sample Custom Solutions

Models
Specifications

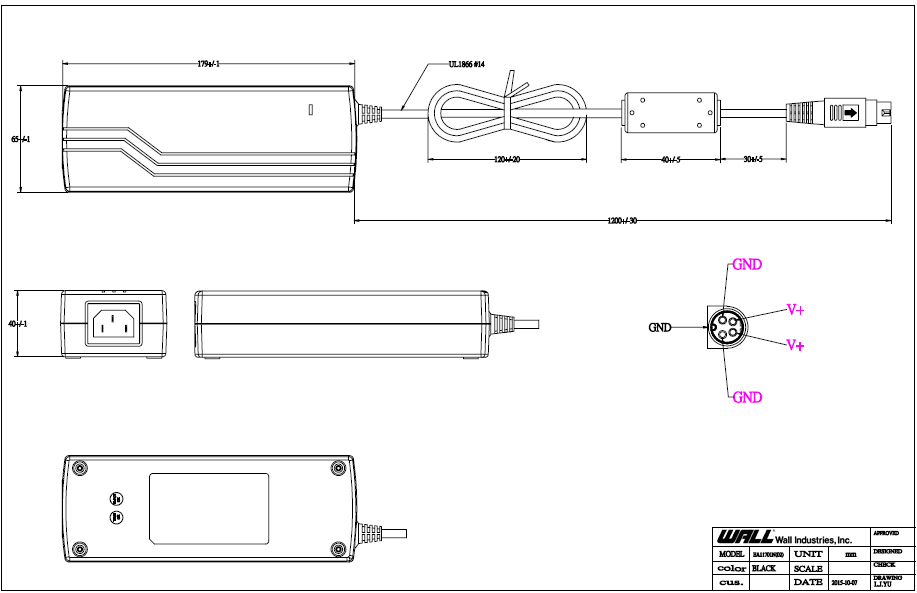

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTEA1170xA	Input Voltage: 100~240	Output Voltage: 12~16	Output Current: 10.83A	Output Power (W): 130	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xB	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 6.84A	Output Power (W): 130	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xJ	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 4.06A	Output Power (W): 130	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xK	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 2.95A	Output Power (W): 130	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xC	Input Voltage: 100~240	Output Voltage: 12~16	Output Current: 11.66A	Output Power (W): 140	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xD	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 7.36A	Output Power (W): 140	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xE	Input Voltage: 100~240	Output Voltage: 12~16	Output Current: 12.5A	Output Power (W): 150	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xF	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 7.89A	Output Power (W): 150	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xG	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 4.68A	Output Power (W): 150	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xH	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 3.12A	Output Power (W): 150	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xM	Input Voltage: 100~240	Output Voltage: 12~16	Output Current: 13.33A	Output Power (W): 160	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xN	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 8.42A	Output Power (W): 160	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xP	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 8.94A	Output Power (W): 170	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xQ	Input Voltage: 100~240	Output Voltage: 19~24	Output Current: 9.47A	Output Power (W): 180	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xR	Input Voltage: 100~240	Output Voltage: 32~42	Output Current: 5.62A	Output Power (W): 180	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote
DTEA1170xS	Input Voltage: 100~240	Output Voltage: 44~56	Output Current: 3.75A	Output Power (W): 180	No. Outputs: S	Case: Desktop	Size: 7.04" x 2.56" x 1.57"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	100~240
Input Frequency:	50-60Hz
Output
Output Voltage:	12~16, 19~24, 32~42, 44~56
Output Current:	12.5A, 11.66A, 10.83A, 13.33A, 7.89A, 7.36A, 8.42A, 6.84A, 9.47A, 8.94A, 4.06A, 4.68A, 5.62A, 3.12A, 2.95A, 3.75A
Output Power (Watts):	130, 140, 150, 160, 170, 180
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Latch Off
Thermal Protection:	Latch Off
General
Environmental
Operating Temperature:	0 to 40°C
Storage Temperature:	-20 to 85°C
Physical
Weight:	1.55lbs
Dimensions:	7.04" x 2.56" x 1.57"
Notes & safety
Notes:	(1) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. (2) Max output power (W) ≥Vo x Io (3) Line Regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) x in model number indicates case type: 1=C14, 2=C8, 3=C6, 6=C18 (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/cUL UL60950, CB, FCC, CCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level V, VI
