DTEA1095

The DTEA1095 series of AC DC desktop power supplies provides up to 100 watts of output power. Single output models are available with and input range of 100 to 240VAC. Four different types of AC Inlets are available: IEC320 C14, C8, C6, or C18, as well as output voltages ranging from 18V~56V. This series is protected against over voltage, over current, and short circuit conditions and is RoHS and Efficiency Level VI compliant. Each model has UL/CUL UL60950, TUV/GS EN/IEC 60950, CB, DoIR+C-Tick, CE, PSE, EK, PSB and FCC safety approvals. Please call factory for ordering details.

• Active PFC Function • Efficiency Level V, VI Compliant • RoHS Compliance • 100-240VAC Input Range • IEC320 C14, C8, C6, and C18 AC Inlets • Short Circuit, Over Voltage, and Over Current Protection • LED Indication • MTBF: >30,000 Hours
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTEA1095D1 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.44A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095D2 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.44A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095D3 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.44A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095D6 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.44A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095G1 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.50A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095G2 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.50A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095G3 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.50A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095G6 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.50A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095H1 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 1.81A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095H2 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 1.81A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095H3 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 1.81A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095H6 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 1.81A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A11 Input Voltage: 100~240 Output Voltage: 15~17 Output Current: 5.0A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A12 Input Voltage: 100~240 Output Voltage: 15~17 Output Current: 5.0A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A13 Input Voltage: 100~240 Output Voltage: 15~17 Output Current: 5.0A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A16 Input Voltage: 100~240 Output Voltage: 15~17 Output Current: 5.0A Output Power (W): 80 No. Outputs: S Case: Desktop Get a Quote
DTEA1095C1 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.00A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095C2 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.00A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095C3 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.00A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095C6 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.00A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A1 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 6.6A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A2 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 6.6A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A3 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 6.6A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095A6 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 6.6A Output Power (W): 84 No. Outputs: S Case: Desktop Get a Quote
DTEA1095E1 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.00A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095E2 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.00A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095E3 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.00A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095E6 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 5.00A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095F1 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.50A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095F2 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.50A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095F3 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.50A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095F6 Input Voltage: 100~240 Output Voltage: 12~18 Output Current: 7.50A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095J1 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.81A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095J2 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.81A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095J3 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.81A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095J6 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 2.81A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA10951 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.75A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA10952 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.75A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA10953 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.75A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA10956 Input Voltage: 100~240 Output Voltage: 18~24 Output Current: 4.75A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095B1 Input Voltage: 100~240 Output Voltage: 15~24 Output Current: 5.0A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095B2 Input Voltage: 100~240 Output Voltage: 15~24 Output Current: 5.0A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095B3 Input Voltage: 100~240 Output Voltage: 15~24 Output Current: 5.0A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095B6 Input Voltage: 100~240 Output Voltage: 15~24 Output Current: 5.0A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095K1 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.04A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095K2 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.04A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095K3 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.04A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095K6 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.04A Output Power (W): 90 No. Outputs: S Case: Desktop Get a Quote
DTEA1095L1 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 3.12A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095L2 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 3.12A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095L3 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 3.12A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095L6 Input Voltage: 100~240 Output Voltage: 32~42 Output Current: 3.12A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095M1 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.27A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095M2 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.27A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095M3 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.27A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTEA1095M6 Input Voltage: 100~240 Output Voltage: 44~56 Output Current: 2.27A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50~60Hz
Output
Output Voltage: 12~18, 32~42, 44~56
Output Current: 2.05A, 2.27A, 1.82A, 3.12A, 2.81A, 2.50A, 7.50A
Output Power (Watts): 80, 90, 100
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery or Latch Off
Thermal Protection: Optional
General
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
Physical
Weight: 14.82oz

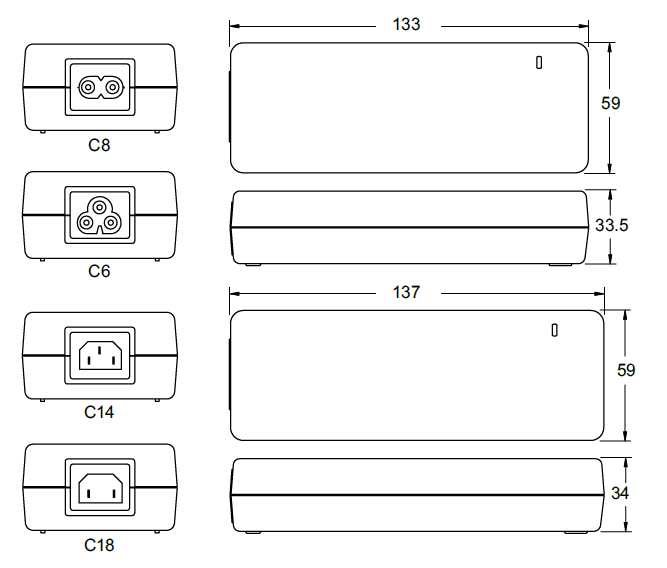

Dimensions: AC Inlet C14, C18: 5.39" x 2.32" x 1.34"
AC Inlet C8, C6: 5.24" x 2.32" x 1.32"
Notes & safety
Notes: (1) The number in the model name (1, 2, 3, 6) indicates the AC Inlet Type. 1=C14, 2=C8, 3=C6, 6=C18.
(2) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
(3) Line Regulation is defined by changing ±10% of input voltage from nominal line at rated load.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL/cUL UL60950, TUV/GS EN/IEC 60950, CB, DoIR+C-Tick, CE, PSE, EK, PSB, FCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS EN/IEC 60950
Energy Star Compliance: Level V, VI
