DTEA1062

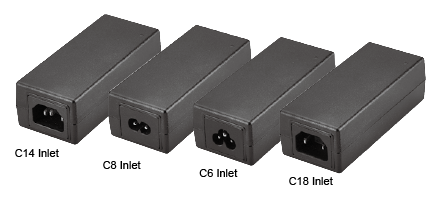

The DTEA1062 series of AC/DC desktop power supplies offers 60 watts of output power in a 4.45” x 1.87” x 1.22” package. This series consists of single output models with a wide input range of 90~267VAC and LED indication. Four types of AC Inlets are available for this series: C14, C8, C6, and C18 inlets. Each model in this series is RoHS and Level VI compliant, has over voltage, short circuit, over current, and over temperature protection, and has UL/cUL, CB, CE, and FCC safety approvals. Please contact factory for order details.
X: “A” for C14 Inlet, “B” for C8 Inlet, “C” for C6 Inlet, or “D” for C18 Inlet
DTEA10625B = 5VDC Output Voltage with C8 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA10625X | Input Voltage: 90~267 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| DTEA10629X | Input Voltage: 90~267 | Output Voltage: 9 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| DTEA106215X | Input Voltage: 90~267 | Output Voltage: 15 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| DTEA106220X | Input Voltage: 90~267 | Output Voltage: 20 | Output Current: 3A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 4.45" x 1.87" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100~240 |
| Input Voltage Range: | 90~267 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 9, 15, 20 |
| Output Current: | 3A |
| Output Power (Watts): | 60 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Optional |
| General | |
| Efficiency: | Up to 88% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 10.58oz (300g) |

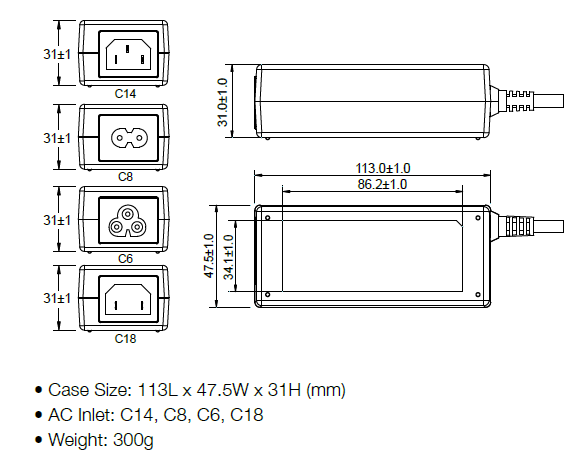

| Dimensions: | 4.45in x 1.87in x 1.22in (113mm x 47.5mm x 31mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number represents AC Inlet type. “X” can either be “A” for C14, “B” for C8, “C” for C6, or “D” for C18. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 2.Ripple & Noise are measured at the end of output cable which are added a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor 3. Output voltage should rise to 90% of rated output voltage in less than 3Sec from AC apply to 100VAC from start up. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
