DTEA1040
The DTEA1040 series of AC/DC desktop power supplies offers up to 48 watts of output power in a compact package. This series consists of single output models with a wide input voltage range of 100 to 240 as well as optional AC inlets. Each model in this series has over voltage, over current, and short circuit protection and has CEC and RoHS compliant. This series has UL/cUL, CB, CE, FCC, and CCC safety approvals.
• Wide Input Voltage Range of 100 to 240VAC
• IEC-320-C8 or IEC-320-C6 AC Inlet
• Economy Model
• Over Voltage, Over Current, and Short Circuit Protection
• CEC and RoHS Compliance
• UL/cUL, CB, CE, FCC, and CCC Safety Approvals
Part Number Setup:
X: “1” for IEC-320-C8 Inlet or “2” for IEC-320-C6 Inlet
X: “1” for IEC-320-C8 Inlet or “2” for IEC-320-C6 Inlet
Example:
DTEA10401D = 9~12VDC Output Model with IEC-320-C8 Inlet
DTEA10401D = 9~12VDC Output Model with IEC-320-C8 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA1040xR | Input Voltage: 100~240 | Output Voltage: 48 | Output Current: 0.4A | Output Power (W): 19.2 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xB | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xA | Input Voltage: 100~240 | Output Voltage: 5~9 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xD | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 3.33A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xG | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xM | Input Voltage: 100~240 | Output Voltage: 17~24 | Output Current: 1.8A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xC | Input Voltage: 100~240 | Output Voltage: 9~12 | Output Current: 4A | Output Power (W): 36 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xF | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 3.0A | Output Power (W): 36 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xK | Input Voltage: 100~240 | Output Voltage: 17~24 | Output Current: 2.12A | Output Power (W): 36 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xQ | Input Voltage: 100~240 | Output Voltage: 48 | Output Current: 0.8A | Output Power (W): 38.4 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xJ | Input Voltage: 100~240 | Output Voltage: 17~24 | Output Current: 2.35A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xE | Input Voltage: 100~240 | Output Voltage: 12~17 | Output Current: 3.5A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xH | Input Voltage: 100~240 | Output Voltage: 17~24 | Output Current: 2.65A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xT | Input Voltage: 100~240 | Output Voltage: 10~20 | Output Current: 3A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| DTEA1040xN | Input Voltage: 100~240 | Output Voltage: 48 | Output Current: 1.0A | Output Power (W): 48 | No. Outputs: S | Case: Desktop | Size: See Series Page | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50-60Hz |
| Output | |
| Output Voltage: | 5~9, 9~12, 10~20, 12~17, 17~24, 48 |
| Output Current: | 0.4A, 0.8A, 1A, 1.8A, 2.12A, 2.35A, 2.5A, 2.65A, 3A, 3.33A, 3.5A, 4A, 5A |
| Output Power (Watts): | 19.2, 20, 25, 30, 36, 38.4, 40, 45, 48 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | 75% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 5.64oz (160g) |

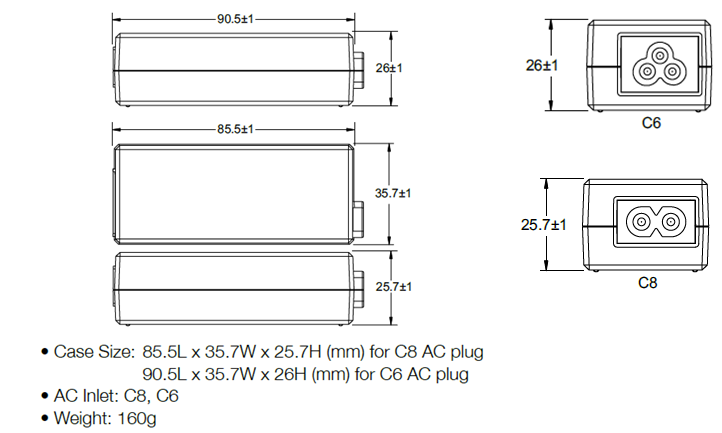

| Dimensions: | IEC-320-C8 Inlet Models: 3.37in x 1.41in x 1.01in (85.5mm x 35.7mm x 25.7mm) IEC-320-C6 Inlet Models: 3.56in x 1.41in x 1.02in (90.5mm x 35.7mm x 26mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates AC inlet. “X” can either be “1” for IEC-320-C8 or “2” for IEC-320-C6. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CB, CE, FCC, CCC |
| RoHS Compliance: | Yes |
