DTCGSW65

The DTCGSW65 series of AC/DC desktop power supplies offers up to 65 watts of output power in a 4.75” x 2.04” x 1.31” package. This series consists of single output models with a wide input voltage range of 90~264VAC. Each model in this series has high efficiency, is RoHS compliant, and has over current and short circuit protection. This series has UL, CE, CB, and FCC safety approvals.

• 90~264VAC Input Voltage Range • High Efficiency • Level VI Compliant (besides 6A & 7A models) • Over Current and Short Circuit Protection • RoHS Compliant • DC Cable=1m • UL, FCC, CE, CB, PSE and RCM Approvals
Part Number Setup:
X: "A" for C14 Inlet, "B" for C8 Inlet, or "C" for C6 Inlet
Example:
DTCGSW65-05C = 5VDC Output with C6 Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTCGSW65-05x ~ DTCGSW65-239x Input Voltage: 90~264 Output Voltage: 5~23.9 Output Current: 7A Output Power (W): 60 No. Outputs: S Case: Desktop Size: 4.75" x 2.04" x 1.31" Get a Quote
DTCGSW65-24x ~ DTCGSW65-48x Input Voltage: 90~264 Output Voltage: 24~48 Output Current: 2700mA Output Power (W): 65 No. Outputs: S Case: Desktop Size: 4.75" x 2.04" x 1.31" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100~240
Input Voltage Range: 90~264
Input Frequency: 47~63Hz
Output
Output Voltage: 5~23.9, 24~48
Output Current: 7A, 2700mA
Output Power (Watts): 60, 65
Short Circuit Protection: Yes
General
Efficiency: 88% Minimum
Environmental
Operating Temperature: 0 to 40ºC
Storage Temperature: -20 to 80ºC
Physical
Weight: 8.47oz (240g)

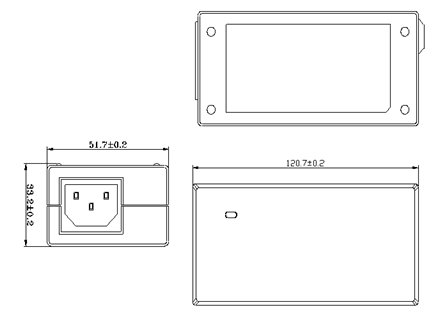

Dimensions: 4.75in x 2.04in x 1.31in (120.7mm x 51.7mm x 33.2mm)
Notes & safety
Notes: 1. Please specify output voltage within this range listed in models tab.
2. 6A & 7A models CANNOT meet Level VI compliance.
3. Ripple & Noise measurement is done by 20MHz bandwidth oscilloscope and the output paralleled a 0.1uF ceramic capacitor and a 47uF electrolysis capacitor (test under the condition of rated input and rated output)
4. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL, FCC, CE, CB, PSE and RCM
RoHS Compliance: Yes
Energy Star Compliance: Level VI Compliant (besides 6A & 7A models)
