DTCGSW48

The DTCGSW48 series of AC/DC desktop power supplies provides up to 43.2 Watts of output power in a 4.57” x 1.87” x 1.30” package. This series consists of single output models ranging from 5V to 36VDC with a 100~240VAC input voltage range. These supplies are RoHS compliant and are protected against over voltage, over current, and short circuit conditions. The DTCGSW48 series is CEC and Energy Star Level V compliant and has UL/cUL, FCC, CE, GS, PSE, SAA, C-Tick, CB, EUP, and CCC safety approvals. IEC-320-C14, IEC-320-C8, and IEC-320-C6 AC inlet types are available for this series.

• RoHS Compliant • 22.5~43.2W Output Power • Single Outputs • Free Air Convection Cooling • MTBF: 50,000 Hours • Very Low Standby Power • CEC / Energy Star Level V Compliant • 100-240VAC Input Voltage Range • Output Voltage, Over Current, & Short Circuit Protection • IEC-320-C14, IEC-320-C8, & IEC-320-C6 AC Inlets Available • Several Output Connector Options Available • UL/cUL, FCC, CE, GS, PSE, SAA, C-Tick, CB, EUP, & CCC Approvals
Part Number Setup:
X: "A" for IEC-320-C14 Inlet, "B" for IEC-320-C8 Inlet, "C" for IEC-320-C6 Inlet
Example:
DTCGSW2205A=IEC-320-C14 Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTCGSW2205x Input Voltage: 100~240 Output Voltage: 5 Output Current: 4.5A Output Power (W): 22.5 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW2819x Input Voltage: 100~240 Output Voltage: 19 Output Current: 1.5A Output Power (W): 28.5 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3075x Input Voltage: 100~240 Output Voltage: 7.5 Output Current: 4A Output Power (W): 30 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3109x Input Voltage: 100~240 Output Voltage: 9 Output Current: 3.5A Output Power (W): 31.5 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3514x Input Voltage: 100~240 Output Voltage: 14 Output Current: 2.5A Output Power (W): 35 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3612x Input Voltage: 100~240 Output Voltage: 12 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3615x Input Voltage: 100~240 Output Voltage: 15 Output Current: 2.4A Output Power (W): 36 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW3624x Input Voltage: 100~240 Output Voltage: 24 Output Current: 1.5A Output Power (W): 36 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
DTCGSW4336x Input Voltage: 100~240 Output Voltage: 36 Output Current: 1.2A Output Power (W): 43.2 No. Outputs: S Case: Desktop Size: 4.57" x 1.87" x 1.3" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 47-63Hz
Output
Output Voltage: 5, 7.5, 9, 12, 14, 15, 19, 24, 36
Voltage Accuracy: ±5%
Output Current: 4.5A, 4A, 3.5A, 3A, 2.5A, 2.4A, 1.5A, 1.2A
Output Power (Watts): 22.5, 28.5, 30, 31.5, 35, 36, 43.2
Short Circuit Protection: Output shut-down; Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
General
Isolation: 3000VAC
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 60°C
Physical
Weight: 7.41oz (210g)

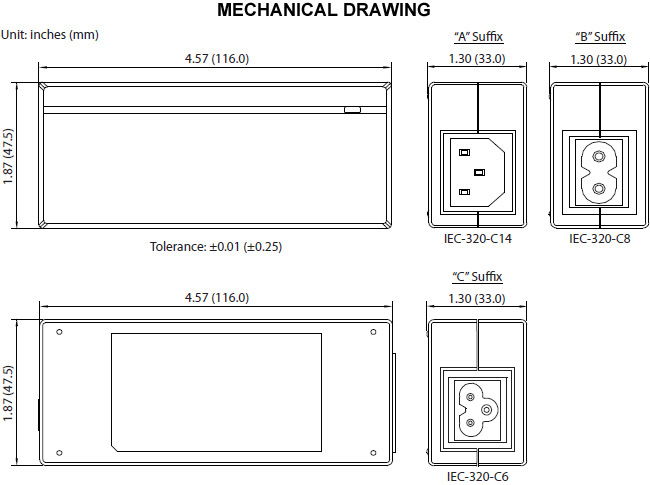

Dimensions: 4.57" x 1.87" x 1.30" (116.0 x 47.5 x 33.0 mm)
Notes & safety
Notes: 1. Ripple and noise is measured at 20MHz limited bandwidth with 0.1µF ceramic and 10µF electrolytic capacitors across the output
2. Several output connector options available. Please call factory for ordering details.
3. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL/cUL, FCC, CE, GS, PSE, SAA, C-Tick, CB, EUP, CCC
RoHS Compliance: Yes
Energy Star Compliance: Level V
