DTAM90/110
The DTAM90/110 series of Class I medical AC DC desktop power supplies delivers up to 110 Watts of output power in a 6.69” x 2.55” x 1.52” package. This series consists of single output models with an input voltage range of 90- 264VAC and a 3-pole IEC-320-C14 AC inlet. These supplies are protected against over voltage, over load, and short circuit conditions. The DTAM90/110 series is RoHS compliant and meets CEC, ERP, EISA, and Energy Star Level V requirements. These units also have UL60601-1: 3rd edition medical approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTAM-090A-1Y120G | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 7.5 A | Output Power (W): 90 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTAM-090A-1Y135G | Input Voltage: 90~264 | Output Voltage: 13.5 | Output Current: 6.67 A | Output Power (W): 90 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTAM-100A-1Y150G | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 6.67 A | Output Power (W): 100 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTAM-110A-1Y190G | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 5.8 A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTAM-110A-1Y200G | Input Voltage: 90~264 | Output Voltage: 20 | Output Current: 5.5 A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTAM-110A-1Y240G | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.6 A | Output Power (W): 110 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | PF > 0.95 at 115VACPF > 0.90 at 230VAC |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 13.5, 15, 19, 20, 24 |
| Output Current: | 7.5A, 6.67A, 5.8A, 4.6A |
| Output Power (Watts): | 90, 100, 110 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shutdown and Lach Off, AC Recycle |
| General | |
| Efficiency: | 87% |
| Isolation: | 5656VDC |
| Environmental | |

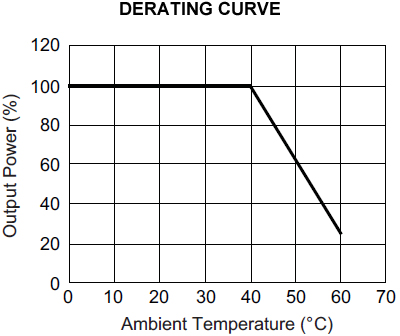

| Operating Temperature: | 0 to 60°C |
| Storage Temperature: | -10 to 70°C |
| Physical | |
| Weight: | 1.34 lb. |

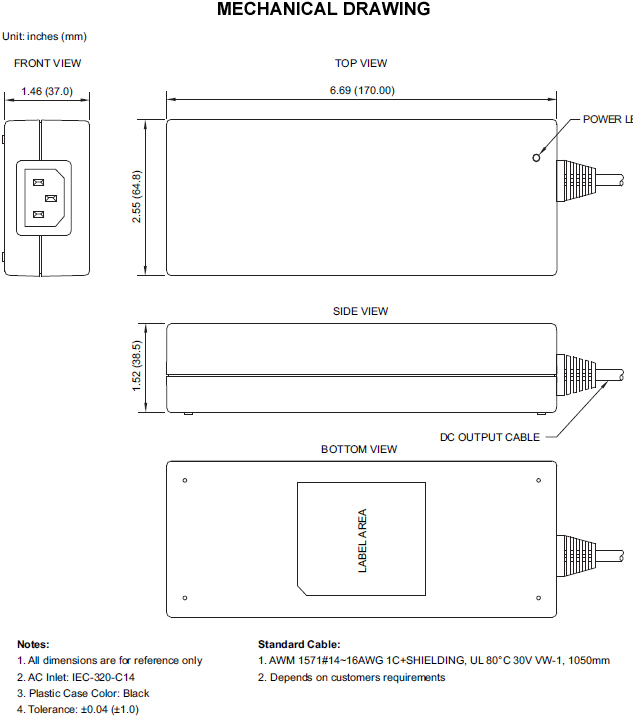

| Dimensions: | 6.69" x 2.55" x 1.52" (170 x 64.8 x 38.5 mm) |
| Notes & safety | |
| Notes: | (1) Ripple & Noise is measured at oscilloscope 20MHz bandwidth by a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel at output connector. (2) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/c-UL UL60601-1, TUV EN60601-1, CB IEC60601-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
