DTAM65
The DTAM65 series of medical AC DC desktop power supplies offers up to 65 watts and is EMC compliant. All units have a single output, 90~264VAC full range input, and an IEC-320-C14 AC inlet. These power supplies have UL60601-1 3rd Edition, CSA-C22.2 No. 60601-1 3rd edition, EN60601-1 3rd edition, and IEC EN60601-1 3rd edition safety approvals. This series is short circuit, over voltage, and over load protected and has an optional LED version available.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTAM040A1Y05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM060A1Y12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM060A1Y15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM065A1Y18 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.6 A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM065A1Y24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.7 A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM065A1Y36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.8 A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTAM065A1Y48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.35 A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 18, 24, 36, 48 |
| Output Current: | 8A, 5A, 4A, 3.6A, 2.7A, 1.8A, 1.35A |
| Output Power (Watts): | 40, 60, 65 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 87% |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 13.76 oz. |

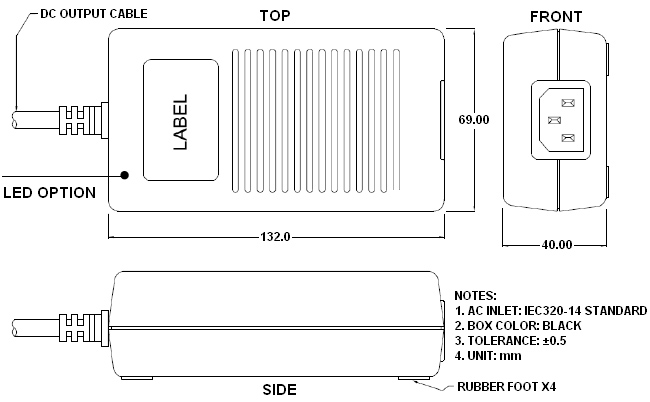

| Dimensions: | 5.20" x 2.72" x 1.57" (132 x 69 x 40 mm) |
| Notes & safety | |
| Notes: | 1. The suffix X can be blank for no LED or L for a green LED. Contact factory for ordering details. 2. DTAM040A1Y05X does not meet CEC/Energy Star Level V requirements. All other models meet CEC/Energy Star Level V requirements. 3. Ripple & Noise is measured at 20MHz bandwidth with a tantalum 10uF in parallel with a 0.1uF ceramic capacitor. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/c-UL UL60601-1, TUV EN60601-1, CB IEC60601-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
| Energy Star Compliance: | Level V |
