DTAM165
The DTAM165 series of medical AC/DC desktop power supplies provides up to 165 Watts of output power in a 6.69” x 3.35” x 1.73” package. This series consists of 12V, 15V, 19V, 24V, 28V, 36V, and 48VDC single output models with a 90-264VAC wide input range and an IEC-320-C14 AC inlet connector. This series also feature a high efficiency up to 87% and a power factor > 0.9 at 230VAC. These supplies are also protected against short circuit, over voltage, and over load conditions. The DTAM165 series has CSA-C22.2 NO.601.1-M90, Nemko EN60601-1, and CB IEC60601-1 3rd edition medical approvals. This series is also CE marked and meets EN55011 Class B, FCC Part 18 Class B, and EN60601-1-2 EMC standards.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTAM-160A-1Y12H | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 13.33A | Output Power (W): 160 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-160A-1Y15H | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 10.67A | Output Power (W): 160 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-160A-1Y19H | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 8.42A | Output Power (W): 160 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-165A-1Y24H | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 6.88A | Output Power (W): 165 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-165A-1Y28H | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 5.89A | Output Power (W): 165 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-165A-1Y36H | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.58A | Output Power (W): 165 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTAM-165A-1Y48H | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.44A | Output Power (W): 165 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 19, 24, 28, 36, 48 |
| Output Current: | 13.33A, 10.67A, 8.42A, 6.88A, 5.89A, 4.58A, 3.44A |
| Output Power (Watts): | 160, 165 |
| Short Circuit Protection: | automatic recovery |
| Over Voltage Protection: | Shutdown and Latch Off, AC Recycle |
| General | |
| Efficiency: | 87% |
| Environmental | |

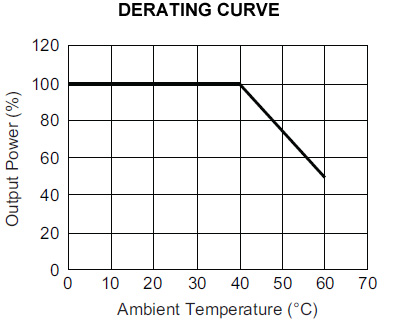

| Operating Temperature: | 0 to 60°C |
| Storage Temperature: | -10 to 80°C |
| Physical | |
| Weight: | 1.73 lbs |

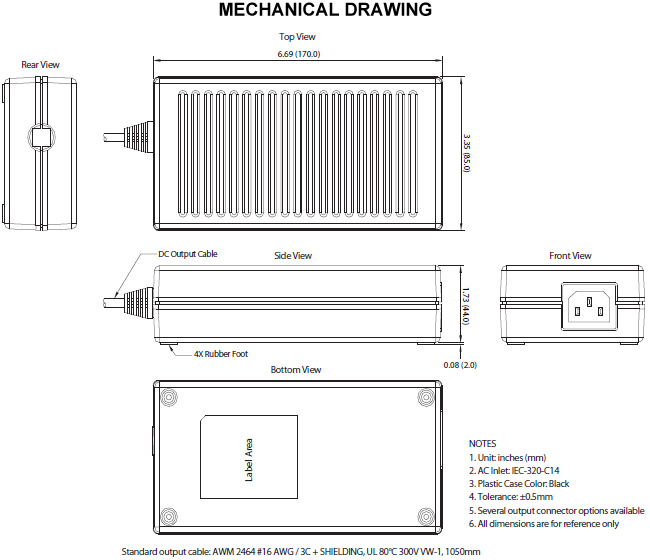

| Dimensions: | 6.69" x 3.35" x 1.73" (170.0 x 85.0 x 44.0 mm) |
| Notes & safety | |
| Notes: | Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CSA C22.2 601.1-M90: 3rd edition, NEMKO EN60601-1: 3rd edition, CB IEC60601-1: 3rd edition |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
