DTAIM300A

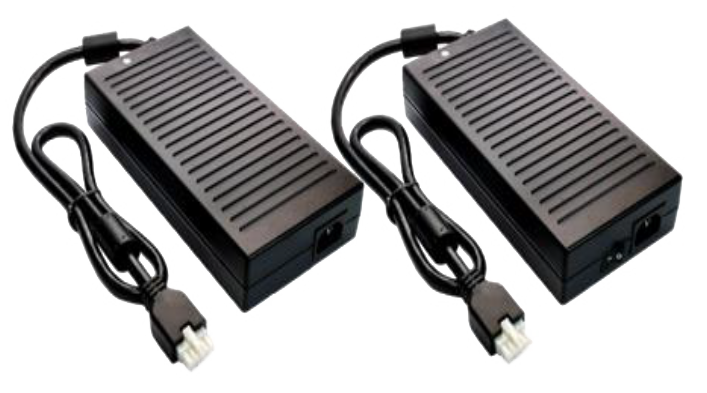

The DTAIM300A series of AC DC switching desktop power supplies provides 300 watts of output power for a variety of applications. This series consists of single output models with a wide input range of 90-264VAC. All models are RoHS and Efficiency Level VI compliant. The DTAIM300A series has high average efficiency >88% as well as short circuit, over load, and over voltage protection. Each model has UL/c-UL 60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC60601-1 3.1 Edition, UL/c-UL UL60950-1, UL/cUL 62368-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1, CB IEC62368-4, CCC (Class I), and PSE (Class I) safety approvals. To types of AC inlets are available for this series: 3-prong IEC320-C14, Class I and 2-prong IEC320-C18, Class II and models are available with or without an I/O switch. Please call factory for order details.

• ITE & Medical Approvals (Class I & Class II) • 3-prong IEC320-C14, Class I or 2-prong IEC320-C18, Class II AC Inlets Available • DOE Level VI Efficiency Compliant • RoHS Compliant • Touch Current <100uA • Suitable for BF Applications with Appropriate System Considerations • IP42 Design for Models without I/O Switch • Medical Safety Approved (2x MOPP Between Primary to Secondary) • Short Circuit, Over Load, and Over Voltage Protection • UL/c-UL 60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC60601-1 3.1 Edition, UL/c-UL UL60950-1, UL/cUL 62368-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1, CB IEC62368-4, CCC (Class I), and PSE (Class I) Safety Approvals
Part Number Setup:
Z: "1" for Class I, 3-prong IEC320-C14 AC Inlet, or "2" for Class II, 2-Prong IEC320-C18 AC Inlet
Add "S" for I/O Switch
Example:
DTAIM300A-1Y120M1S=12V Model with Class I, 3-prong IEC320-C14 AC Inlet, and I/O Switch
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTAIM300A-1Y120MZ Input Voltage: 90~264 Output Voltage: 12 Output Current: 25A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y190MZ Input Voltage: 90~264 Output Voltage: 19 Output Current: 15.79A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y240MZ Input Voltage: 90~264 Output Voltage: 24 Output Current: 12.5A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y280MZ Input Voltage: 90~264 Output Voltage: 28 Output Current: 10.71A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y480MZ Input Voltage: 90~264 Output Voltage: 48 Output Current: 6.25A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y540MZ Input Voltage: 90~264 Output Voltage: 54 Output Current: 5.56A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.4" x 1.77" Get a Quote
DTAIM300A-1Y150MZ Input Voltage: 90~264 Output Voltage: 15 Output Current: 20A Output Power (W): 300 No. Outputs: S Case: Desktop Size: 8.74" x 4.41" x 1.77" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.95 at 115VAC and full load
0.90 at 230VAC and full load
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 15, 19, 24, 28, 48, 54
Output Current: 25A, 20A, 15.79A, 12.5A, 10.71A, 6.25A, 5.56A
Output Power (Watts): 300
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 88%
Environmental
Operating Temperature: -30 to 60°C
Storage Temperature: -20 to 85°C
Physical
Weight: 3.46lbs (1.57kgs)

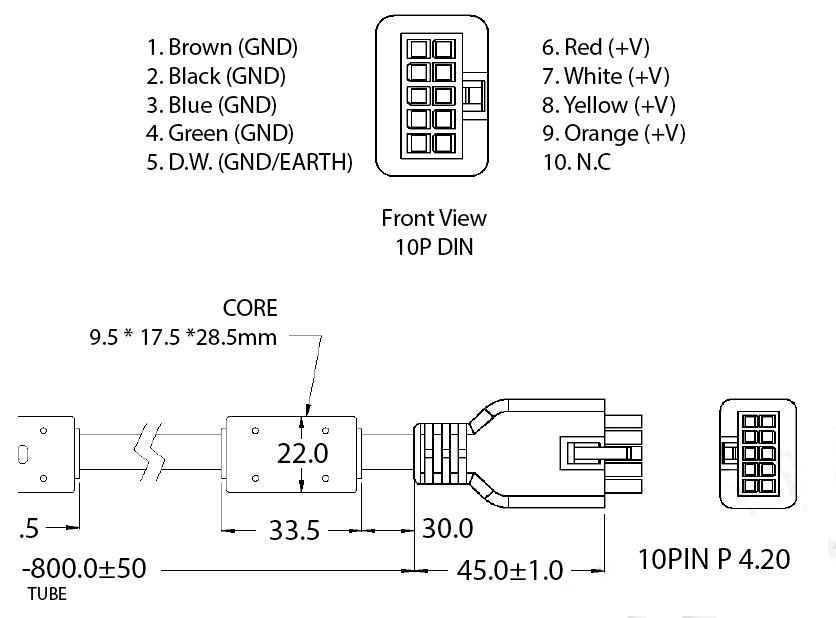

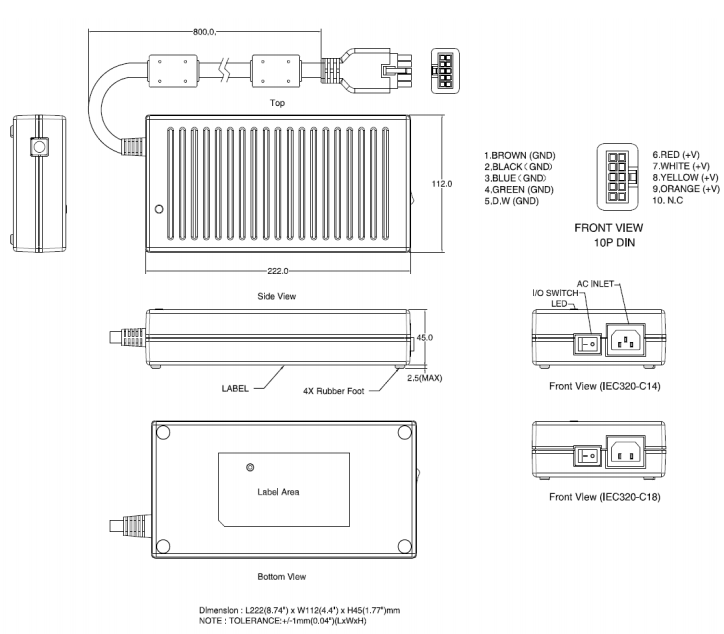

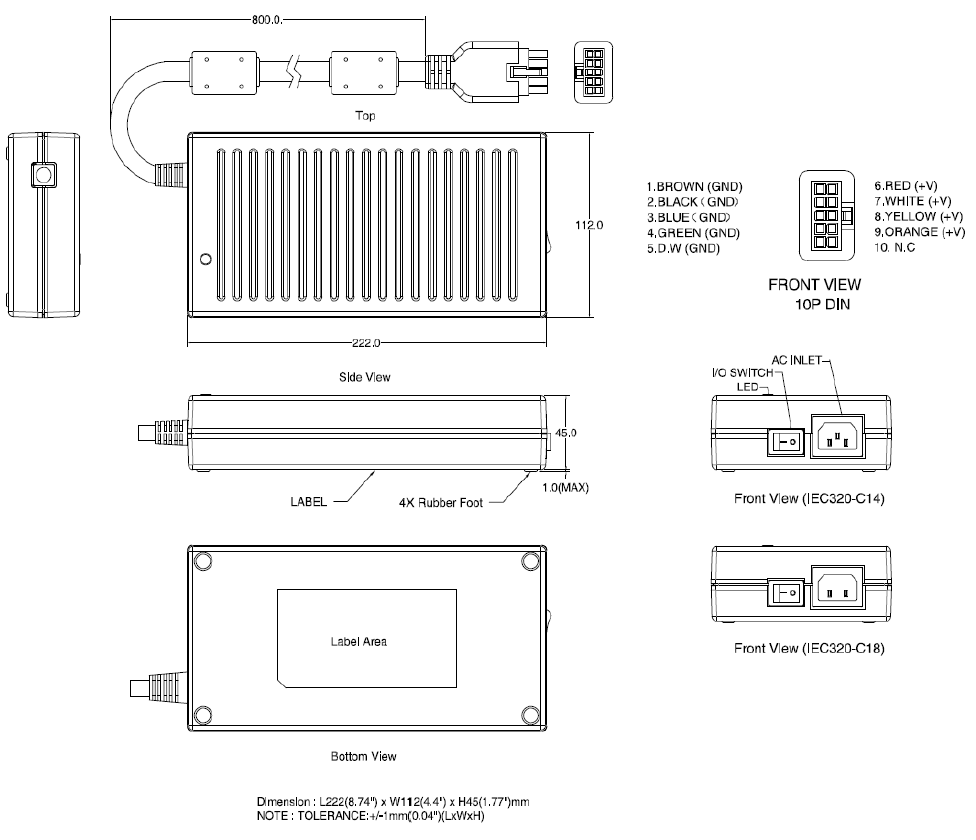

Dimensions: 8.74" x 4.4" x 1.77"
Notes & safety
Notes: (1) “Z” in model name indicates AC Inlet. Z=1: Class I, 3-prong IEC320-C14 AC Inlet, Z=2L Class II, 2-Prong IEC32-C18 AC Inlet. To indicate an I/O switch, add “S” to end of model number.
(2) Ripple & Noise are measured at oscilloscope 20MHz bandwidth by a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
(3) Output regulation is ±10% at -30 to -20ºC
(4) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL/c-UL 60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC60601-1 3.1 Edition, UL/c-UL UL60950-1, UL/cUL 62368-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1, CB IEC62368-4, CCC (Class I), PSE (Class I)
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1, TUV EN62368-1
Energy Star Compliance: Level VI
