DTAIM105A

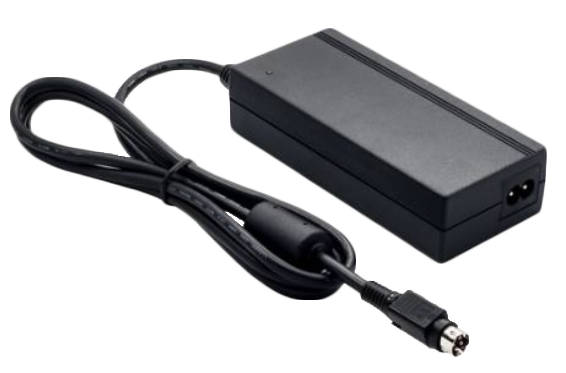

The DTAIM105A series of AC DC desktop power supplies offers up to 110 watts of output power in a 5.52” x 2.48” x 1.30” package. This series consists of single output models with a universal input range of 90-264VAC and output voltages ranging from 12V to 48V. All models are Energy Level VI, EU Tier 2 Efficiency, and RoHS compliant. This series has short circuit, over load, and over voltage protection and also has UL/c-UL 60601-1 3.1 edition, TUV EN60601-1 3.1 edition, CB IEC60601-1 3.1 edition. UL/c-UL UL60950-1, TUV EN60950-1, CB IEC60950-1, and SGS IEC/EN 60601-1-11 2nd edition safety approvals. Optional output cables are available per customer’s request. Please call factory for order details.

• Single Outputs • 2-Pole AC Inlet: IEC320-C8 Class II • Universal Input Voltage Range of 90-264VAC • ITE & Medical Dual Safety Approvals • Plastic Case with IP41 Level • Short Circuit, Over Load, and Over Voltage Protection • High Efficiency Over 89% • 2 MOPP; Suitable for BF Application • Meets DOE Level VI & EU Tier 2 Efficiency Requirements • RoHS Compliant • UL/c-UL 60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC60601-1 3.1 Edition. UL/c-UL UL60950-1, TUV EN60950-1, CB IEC60950-1, and SGS IEC/EN 60601-1-11 2nd Edition Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTAIM105A-1Y120N Input Voltage: 90~264 Output Voltage: 12 Output Current: 8.75A Output Power (W): 105 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y150N Input Voltage: 90~264 Output Voltage: 15 Output Current: 7.34A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y190N Input Voltage: 90~264 Output Voltage: 19 Output Current: 5.79A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y240N Input Voltage: 90~264 Output Voltage: 24 Output Current: 4.59A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y280N Input Voltage: 90~264 Output Voltage: 28 Output Current: 3.93A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y360N Input Voltage: 90~264 Output Voltage: 36 Output Current: 3.06A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
DTAIM110A-1Y480N Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.29A Output Power (W): 110 No. Outputs: S Case: Desktop Size: 5.5" x 2.48" x 1.3" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: @115VAC, Full Load: 0.95
@230VAC, Full Load: 0.90
Input Frequency: 47 to 63Hz
Output
Output Voltage: 12, 15, 19, 24, 28, 36, 48
Output Current: 2.29A, 3.06A, 3.93A, 4.59A, 5.79A, 7.34A, 8.75A
Output Power (Watts): 105, 110
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: >89%
Environmental
Operating Temperature: -20 to +60ºC
Storage Temperature: -20 to +85ºC
Physical
Weight: 1.72lbs (0.78kgs)
Dimensions: 5.5in x 2.48in x 1.30in (140mm x 63mm x 33mm)
Notes & safety
Notes: (1) Ripple and noise is measured at oscilloscope 20MHz bandwidth by a 47µF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel at output connector.
2. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL UL60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC60601-1 3.1 Edition, UL/c-UL UL60950-1, TUV EN60950-1, CB IEC 60950-1, SGS IEC/EN 60601-1-11 2nd Edition
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN6601-1 3.1 Edition, EN60950-1
Energy Star Compliance: Level VI
