DTA250

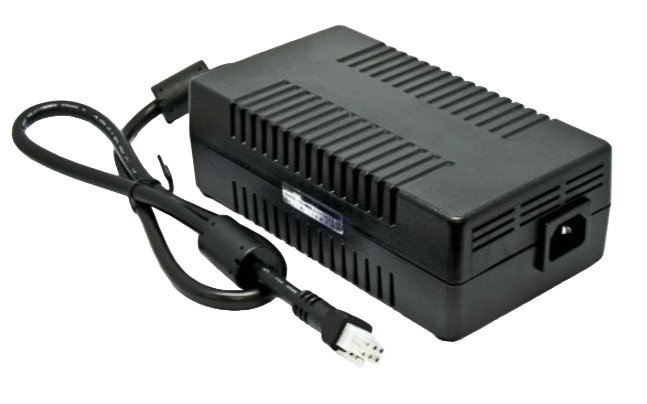

The DTA250 series offers 250 watts of output power in a single output desktop power supply. All models have a 90~264VAC input voltage range, an IEC-320-C14 AC inlet, a 40mm cooling fan with fan speed control, and active PFC. Output voltages are available from 12 to 48VDC. This series has UL 60950-1, CSA C22.2-No. 60950-1, TUV EN60950-1, CB IEC 60950-1 safety approvals. All units are short circuit, over voltage, and over load protected. These supplies meet CEC/Energy Star Level VI requirements and all models are RoHS compliant.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA250A4-1Y120E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 20.83A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y160E | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 15.63A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y190E | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 13.16A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y200E | Input Voltage: 90~264 | Output Voltage: 20 | Output Current: 12.5A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y240E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 10.42 | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y360E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 6.94A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| DTA250A4-1Y480E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 5.21A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.1" x 2.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | @115VAC, Full Load: >0.95 @230VAC, Full Load: >0.9 |
| Input Frequency: | 47-63 |
| Output | |
| Output Voltage: | 12, 16, 19, 20, 24, 36, 48 |
| Output Current: | 20.83A, 15.63A, 13.16A, 12.5A, 10.42A, 6.94A, 5.21A |
| Output Power (Watts): | 250 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch, AC Recycle |
| General | |
| Efficiency: | 88% |
| Environmental | |
| Operating Temperature: | -20 to 60°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.31 lbs |

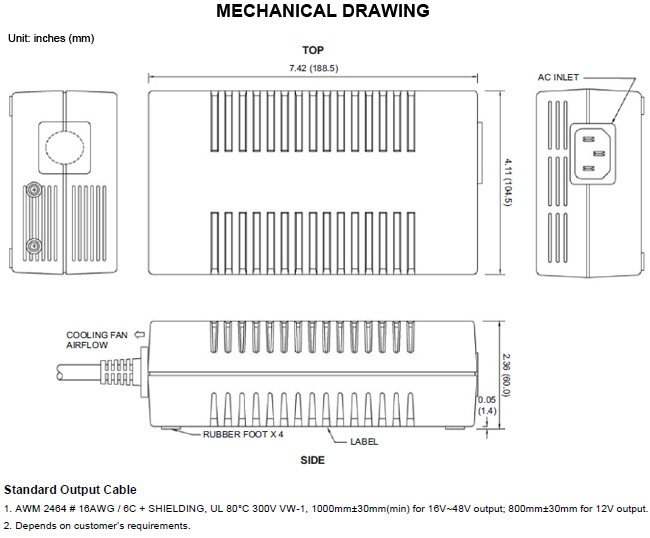

| Dimensions: | 7.42" x 4.1" x 2.36" (188.5 x 104.5 x 60 mm) |
| Notes & safety | |
| Notes: | 1. All models have an IEC-320-C14 AC inlet. 2. Ripple and Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 3. -20 to -10ºC output characteristics, output regulation is ±6% for 36V. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA C22.2-No. 60950-1, TUV EN60950-1, CB IEC 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
| Energy Star Compliance: | Level VI |
