DTA200
The DTA200 series of AC/DC desktop power supplies offers 200 watts of output power in a 7.42” x 4.1” x 2.36” package. This series consists of single output models with a universal input of 90-264VAC. Each model in this series has high efficiency and is protected against short circuit, over load, and over voltage conditions. This series meets DOE Level VI and EU Tier 1 efficiency requirements.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-200A3-1Y12E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 16.66 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y16E | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 12.5 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y19E | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 10.53 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y20E | Input Voltage: 90~264 | Output Voltage: 20 | Output Current: 10A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y24E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 8.33 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y36E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5.555 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| DTA-200A3-1Y48E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.166 A | Output Power (W): 200 | No. Outputs: S | Case: Desktop | Size: 7.42" x 4.11" x 2.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 16, 19, 20, 24, 36, 48 |
| Output Current: | 16.66A, 12.5A, 10.53A, 10A, 8.33A, 5.555A, 4.166A |
| Output Power (Watts): | 200 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shutdown and Lach Off, AC Recycle |
| General | |
| Efficiency: | 88% |
| Environmental | |
| Operating Temperature: | -20 to 60°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 12 oz. |

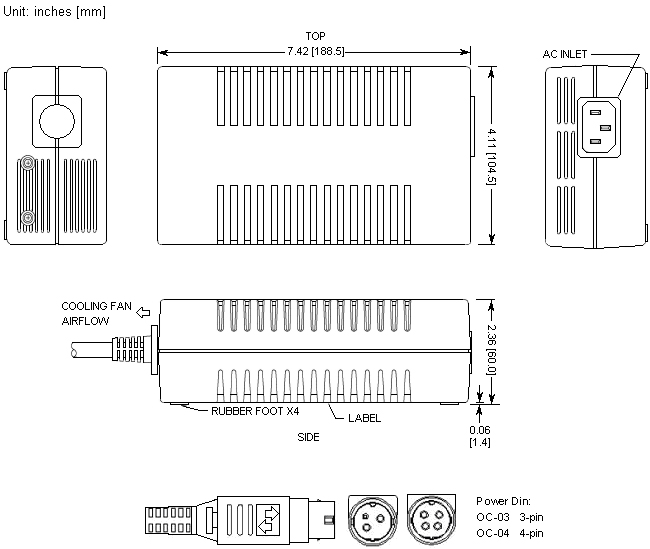

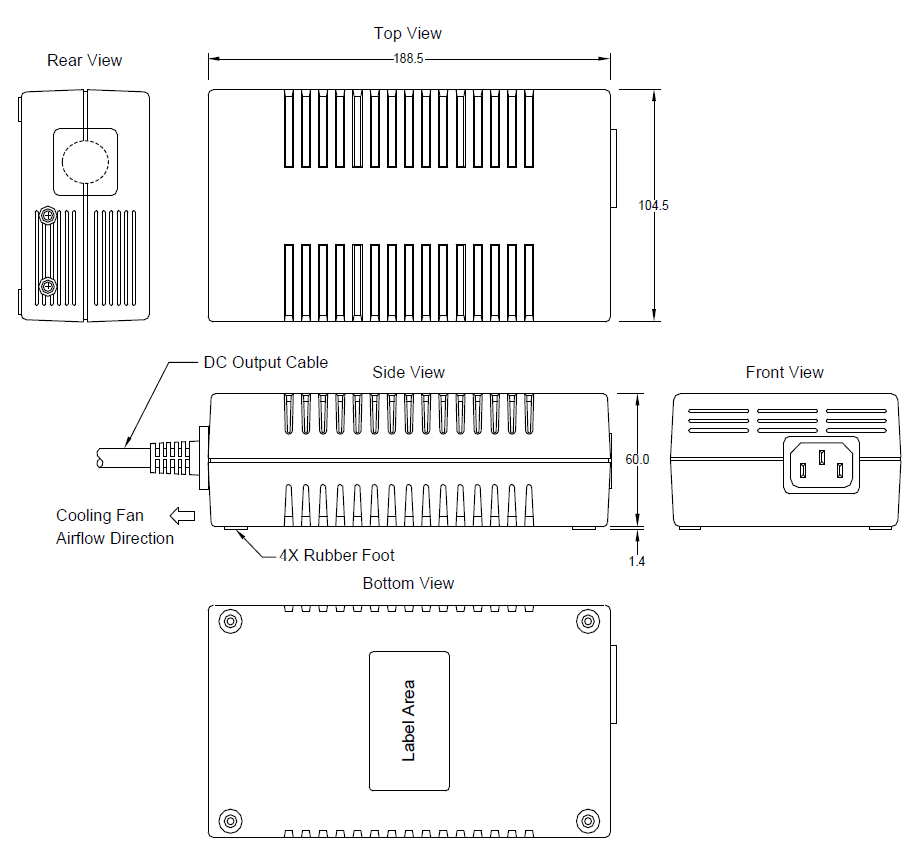

| Dimensions: | 7.42" x 4.11" x 2.36" (188.5 x 104.5 x 60 mm) |
| Notes & safety | |
| Notes: | (1) Add “S” to product number to indicate a model with I/O switch. (2) Ripple & Noise is measured at 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector. (3) -20 to -10°C output characteristics output regulation are ±7 for 36V (4) This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, UL62368-1, CSA C22.2-No. 60950-1, CSA C22.2-No.62368-1, TUV EN60905-1, TUV EN62368-1, CB IEC 60950-1, CB IEC 62368-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1, TUV EN62368-1 |
| Energy Star Compliance: | Level VI |
