DTA150A-H
The DTA150A-H series of Class I AC/DC desktop power supplies provides up to 150 Watts output power in a 6.69 x 3.35 x 1.73 inch package. This series consists of single output models ranging from 12VDC to 48VDC with a 90~264VAC input voltage range and an IEC-320-C14 AC inlet connector. These supplies also feature no load power consumption <150mW and 89% typical efficiency. These supplies are protected against short circuit, over voltage, and over load conditions and have U L60950-1, UL 62368-1, CSA C22.2-No.60950-1, CSA C22.2-No.62368-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1 and CB IEC 62368-1 safety approvals. All models are DOE Level VI and EU ErP Tier 2 compliant.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-140A-1Y120H | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 11.67 A | Output Power (W): 140 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTA-150A-1Y160H | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 9.38 A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTA-150A-1Y190H | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 7.9 A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTA-150A-1Y240H | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 6.25 A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTA-150A-1Y360H | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 4.17 A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| DTA-150A-1Y480H | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 3.13 A | Output Power (W): 150 | No. Outputs: S | Case: Desktop | Size: 6.69" x 3.35" x 1.73" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 16, 19, 24, 36, 48 |
| Output Current: | 11.67A, 9.38A, 7.9A, 6.25A, 4.17A, 3.13A |
| Output Power (Watts): | 140, 150 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shutdown and Latch Off, AC Recycle |
| General | |
| Efficiency: | 89% |
| Environmental | |
| Operating Temperature: | 0 to 60°C |
| Storage Temperature: | -10 to 85°C |
| Physical | |
| Weight: | 1.72 lbs (780g) |

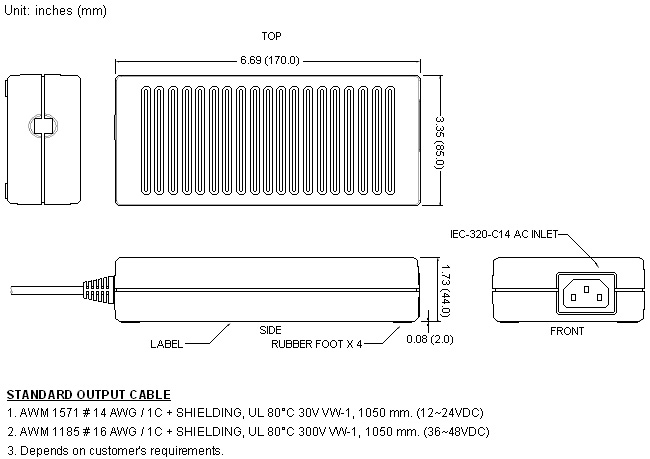

| Dimensions: | 6.69" x 3.35" x 1.73" (170 x 85 x 44 mm) |
| Notes & safety | |
| Notes: | 1. Other output voltages are available: 140W for 12~24VDC, 150W for 15~26VDC, 33~39VDC, and 44~52VDC. Please call factory for ordering details. 2. Ripple & noise is measured at 20MHz limited bandwidth and with a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel across the output. 3. Several output connectors available; please call factory for ordering details. 4.This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, UL 62368-1, CSA C22.2-No.60950-1, CSA C22.2-No. 62368-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1, CB IEC 62368-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1, TUV EN62368-1 |
| Energy Star Compliance: | Level VI |
