DTA100A-H

The DTA100A-H series consists of 100W, grounded, single phase, switching adapters with active PFC function. These supplies have a single output, an input voltage range of 90~264Vac, and an IEC-320-C14 AC inlet connector. These supplies are also protected against over load, over voltage, and short circuit conditions. In addition, the DTA100A-H series complies with worldwide safety requirements and electromagnetic compatibility requirements and meets EMC, CEC IV, Energy Star Level V, and RoHS requirements for desktop switching adapters. This series has been 100% burn-in and hi-pot tested.

• Class I • Single Output • RoHS Compliant • Active PFC Function • AC Inlet: IEC-320-C14 Inlet • 100% Hi-Pot and Burn-In Tested • 90~264VAC Input Voltage Range • Safety Approvals, EMC Compliance • CEC/ Energy Star Level VI Compliant • Over Voltage, Over Load, and Short Circuit Protected
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTA100A-1Y120H Input Voltage: 90~264 Output Voltage: 12 Output Current: 8.34 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTA100A-1Y160H Input Voltage: 90~264 Output Voltage: 16 Output Current: 6.25 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTA100A-1Y190H Input Voltage: 90~264 Output Voltage: 19 Output Current: 5.27 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTA100A-1Y240H Input Voltage: 90~264 Output Voltage: 24 Output Current: 4.17 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTA100A-1Y360H Input Voltage: 90~264 Output Voltage: 36 Output Current: 2.78 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
DTA100A-1Y480H Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.09 A Output Power (W): 100 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 12, 16, 19, 24, 36, 48
Output Current: 8.34A, 6.25A, 5.27A, 4.17A, 2.78A, 2.09A
Output Power (Watts): 100
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Shutdown and Lach Off, AC Recycle
General
Efficiency: 89%
Isolation: 4242VDC
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -10 to 85°C
Physical
Weight: 16 oz.

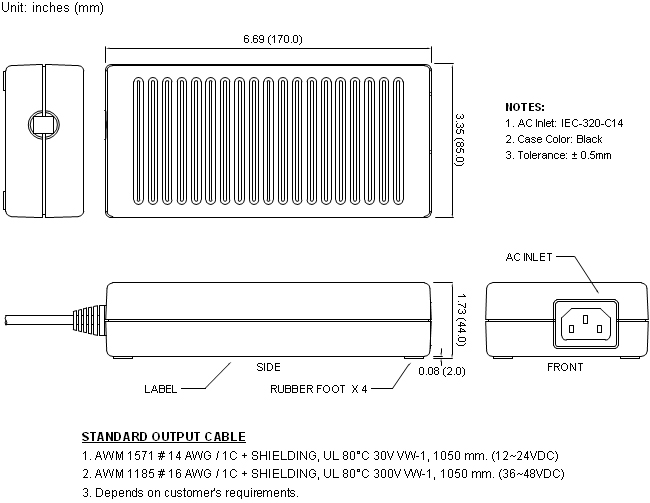

Dimensions: 6.69" x 3.35" x 1.73" (170 x 85 x 44 mm)
Notes & safety
Notes: (1) Other output voltages are available: 100W for 12~26VDC, 33~39VDC, and 44~52VDC. Please call factory for ordering details.
(2) Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
(3) Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL 60950-1, CSA C22-2-No. 60950-1, TUV EN60950-1, CB IEC 60950-11
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN 60950-1
Energy Star Compliance: Level VI
