DTA-120A2
The DTA-120A2 series of AC DC switching power supplies offers 120 watts of output power in a 6.69” x 2.55” x 1.52” package. This series has single output models with a universal input range of 90-264VAC. Some features of this series include a 3-pole IEC320-C14 AC inlet and power On LED indicator. All models are Efficiency Level VI and RoHS compliant. Models are also protected against short circuit, over load, and over voltage conditions and have UL 60950-1, CSA C22.2-No.60950-1, TUV EN60950-1, CB IEC 60950-1 safety approvals. Please call factory for order details.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-120A2-1Y120G | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 10A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTA-120A2-1Y150G | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 8A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTA-120A2-1Y190G | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 6.32A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTA-120A2-1Y240G | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 5A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTA-120A2-1Y280G | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 4.29A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| DTA-120A2-1Y480G | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.5A | Output Power (W): 120 | No. Outputs: S | Case: Desktop | Size: 6.69" x 2.55" x 1.52" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 0.95, 0.90 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 19, 24, 28, 48 |
| Output Current: | 2.5A, 4.29A, 5A, 6.32A, 8A, 10A |
| Output Power (Watts): | 120 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shutdown and Latch off, AC Recycle |
| General | |
| Efficiency: | 89% |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.34 lbs |

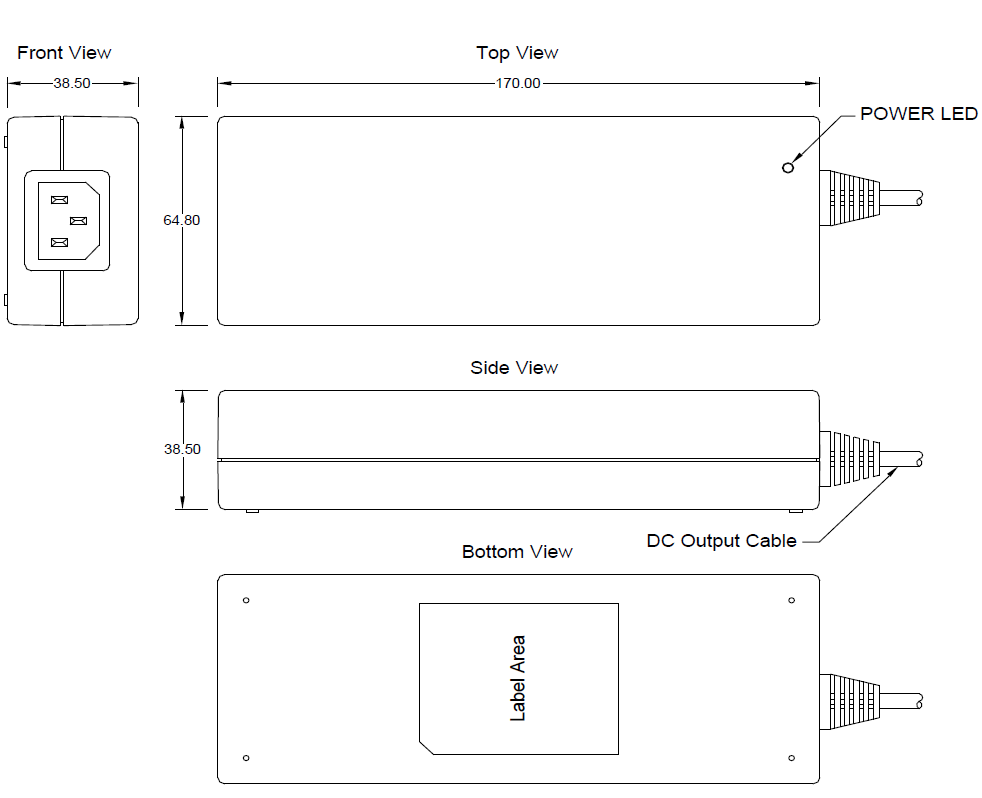

| Dimensions: | 6.69" x 2.55" x 1.52" |
| Case Material: | Plastic |
| Notes & safety | |
| Notes: | (1) Ripple & Noise are measured at oscilloscope 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector. (2) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA C22.2-No. 60950-1, TUV EN60950-1, CB IEC 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
| Energy Star Compliance: | Level VI |
