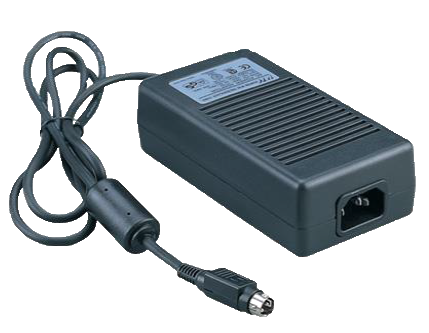

DTA-080A4
The DTA-080A4 series of AC/DC desktop power supplies provides 80 Watts of continuous output power. All models have a single output and are RoHS and Efficiency Level VI compliant. The series includes and IEC320-C14 AC inlet and an LED power On indicator. All models have short circuit, over load, and over voltage protection along with a 3 year warranty.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-072A4-1Y090A | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 8A | Output Power (W): 72 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y120A | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 6.67A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y150A | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 5.34A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y180A | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 4.45A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y240A | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 3.34A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y280A | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 2.86A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-080A4-1Y480A | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.67A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 0.95, 0.90 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 9, 12, 15, 18, 24, 28, 48 |
| Output Current: | 8A, 6.67A, 5.34A, 4.45A, 3.34A, 2.86A, 1.67A |
| Output Power (Watts): | 72, 80 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shutdown and Latch off, AC Recycle |
| General | |
| Efficiency: | 89% |
| Environmental | |
| Operating Temperature: | 0 to 60°C |
| Storage Temperature: | -10 to 85°C |
| Physical | |
| Weight: | 15.52oz |

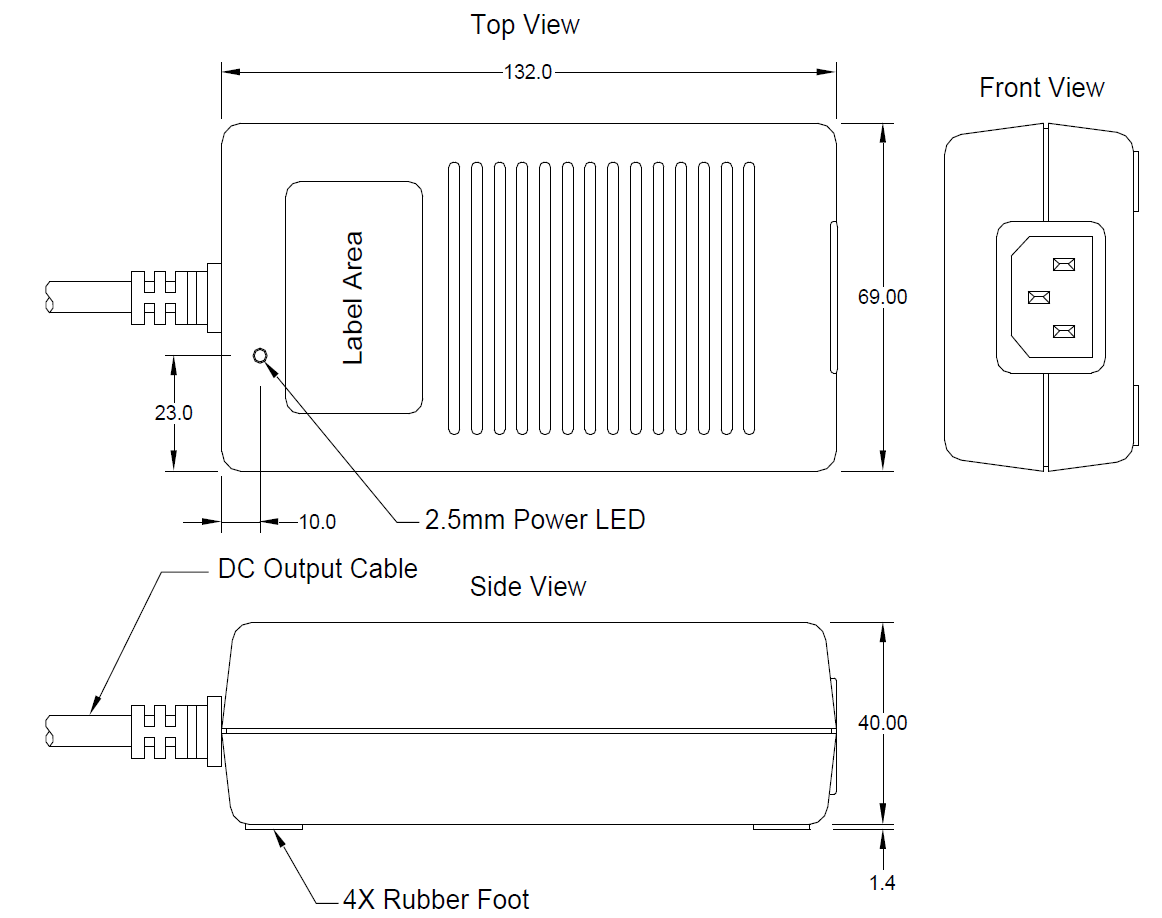

| Dimensions: | 5.2in x 2.72in x 1.57in (132mm x 69mm x 40mm) |
| Notes & safety | |
| Notes: | (1) Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel at output connector. (2) Derate linearly 2.5% per °C from 41 to 60°C. (3) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60950-1, UL62368-1, CSA C22.2-No.60950-1, CSA C22.2-No.62638-1, TUV EN60950-1, TUV EN62368-1, CB IEC60950-1, CB IEC62368-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
