DTA-065A3
The DTA-065A3 series of AC/DC desktop power supplies provides 40-65 Watts of continous output power. All models have a single output and are RoHS compliant. The series an IEC320-C14 AC inlet and an LED power On indicator. All models are UL 60950-1 and EN60950-1 approved.
• 3-Pole IEC320-C14 AC inlet, Class I • Output Voltage Range from 5V to 48V • Meets Efficiency Level VI & CoC V5 Tier 2 Requirements • Power ON LED indicator • High Efficiency of >89% • RoHS Compliant • Optional Output Connectors • Input Voltage Range of 90~264VAC • Short Circuit, Over Load, and Over Voltage Protection • UL 60950-1, CSA C22.2- No.60950-1, Nemko EN60950-1 and CB IEC 60950-1 safety approvals
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTA-040A3-1Y080A | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 5A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-040A3-1Y050A | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y120A | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5.41A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y150A | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4.33A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y190A | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 3.43A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y360A | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.81A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y480A | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| DTA-065A3-1Y240A | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 5.2" x 2.72" x 1.57" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 8, 12, 15, 19, 24, 36, 48 |
| Output Current: | 8A, 5A, 5.41A, 4.33A, 3.43A, 2.71A, 1.81A, 1.36A |
| Output Power (Watts): | 40, 65 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Shut Down and Latch Off, AC Recycle |
| General | |
| Efficiency: | 89% |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -10 to 85°C |
| Physical | |
| Weight: | 13.76oz (390g) |

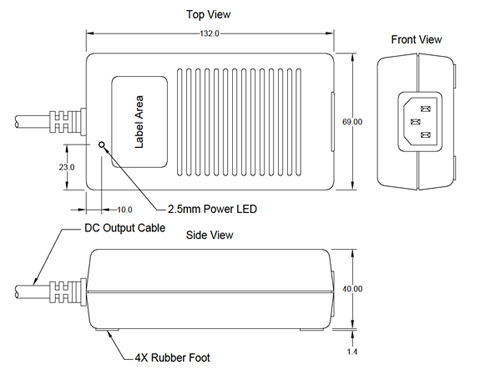

| Dimensions: | 5.2in x 2.72in x 1.57in (132mm x 69mm x 40mm) |
| Notes & safety | |
| Notes: | (1) Other DC Output 40W for 5-6Vand 8-10V, 65W for 12-13V, 13.5-16V, 18-20V, 22-28V, 32-36V and 44-52V. (2) Ripple and Noise are measured at oscilloscope 20MHz bandwidth by a 10µF electrolytic capacitor and a 0.1µF ceramic capacitor in parallel at output connector. (3) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60950-1, CSA C22.2- No.60950-1, Nemko EN60950-1, CB IEC 60950-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
