Wall Industries has released the RC1 series of ultra-compact DC DC Converters available in 4 package types

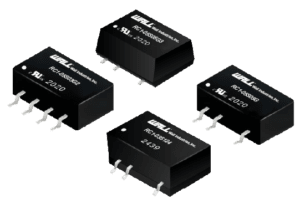

Wall Industries Inc. has recently released the RC1 series of DC DC converters in an ultra-compact surface mount package. This series offers 1 watt of power and single output models ranging from 3.3-24VDC with 3.3VDC, 5VDC, 9VDC, 12VDC, 15VDC, or 24VDC input voltage.
Features of the RC1 series include high efficiency, unregulated output types, and up to 3000KVDC isolation. It also offers 4 different package types and sizes and continuous short circuit protection. RC1 is RoHS compliant and has UL/cUL/IEC/EN 62368-1 safety approvals. For full details see the RC1 series page.
RC1 Series Details
|
Model Number |
Input | Output Voltage | Output Current | Efficiency | Output Power |
|
RC1-xxS03 |
3.3VDC, 5VDC, 9VDC, 12VDC, 15VDC, 24VDC |
3.3VDC |
303mA |
Up to 78% |
1 Watt |
|
RC1-xxS05 |
5VDC |
200mA |
82% |
||
|
RC1-xxS09 |
9VDC |
112mA |
Up to 85% |
||
|
RC1-xxS12 |
12VDC |
84mA |
Up to 85% |
||
|
RC1-xxS15 |
15VDC |
67mA |
Up to 87% |
||
|
RC1-xxS24 |
24VDC |
42mA |
85% |
To get in touch with the Wall team about the new RC1 series, you can contact us here.
