Wall Industries has introduced the DCMQB60 series of quarter-brick medical and industrial grade converters with high isolation voltage of 5000VAC

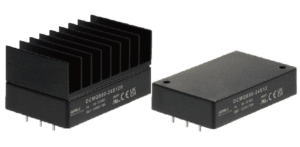

Wall Industries Inc. has released the DCMQB60 series of medical and industrial grade DC/DC through hole converters. This series offers up to 60 watts of power in a 1.45in x 2.28in x 0.50in through hole quarter-brick package with optional heatsink. It consists of both single and dual output models with a wide 4:1 input range of 9~36 or 18~75.
Features of the DCMQB60 series include high efficiency, low standby power, no minimum load requirement, and a wide isolation voltage of 5000VAC. It has short circuit, over voltage, over load, and over temperature protection as well as IEC/EN/ANSI/AAMI ES 60601-1 and IEC/EN/UL 62368-1 safety approvals. For full details see the DCMQB60 series page.
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCMQB60-24S05 | 24VDC (9~36VDC) | 5VDC | 12A | 89.5% | Up to 60W |
| DCMQB60-24S51 | 5.1VDC | 12A | 89.5% | ||
| DCMQB60-24S12 | 12VDC | 5A | 91.5% | ||
| DCMQB60-24S15 | 15VDC | 4A | 90% | ||
| DCMQB60-24S24 | 24VDC | 2.5A | 90% | ||
| DCMQB60-48S05 | 48VDC (18~75VDC) | 5VDC | 12A | 89.5% | Up to 60W |
| DCMQB60-48S51 | 5.1VDC | 12A | 89.5% | ||
| DCMQB60-48S12 | 12VDC | 5A | 92% | ||
| DCMQB60-48S15 | 15VDC | 4A | 92.5% | ||
| DCMQB60-48S24 | 24VDC | 2.5A | 90% |
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCMQB60-24D12 | 24VDC (9~36VDC) | ±12VDC | ±2.5A | 90% | Up to 60W |
| DCMQB60-24D15 | ±15VDC | ±2A | 90% | ||
| DCMQB60-48D12 | 48VDC (18~75VDC) | ±12VDC | ±2.5A | 90% | Up to 60W |
| DCMQB60-48D15 | ±15VDC | ±2A | 90% |
To get in touch with the Wall team about the new DCMQB60 series, you can contact us here.
