Wall’s new PSGS3 series offers up to 3 watts of power and two case types

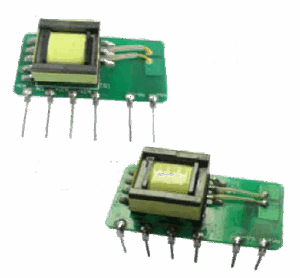

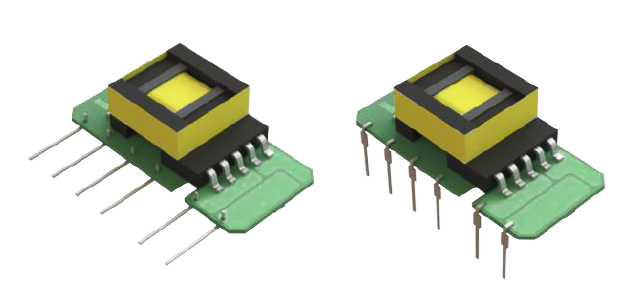

Wall Industries Inc. has just released the PSGS3 series of AC/DC open frame power supplies. This series offers 1.65 to 3 watts of output power in a 1.38″ x 0.65 x 0.43″ package with either straight or bent pins. Single output models are available from 3.3-24VDC output and a universal input voltage of 85~305VAC (70~430VDC).
The PSGS3 series is protected against over load and short circuit conditions and has UL62368-1 and IEC62368-1 safety approvals. It is also RoHS compliant and features high efficiency. Full series details can be found on PSGS3 series page.
PSGS3 Series Details
|
Model Number |
Input Voltage Range | Output Voltage | Output Current |
Output Power |
|
PSGS3-S03(-F) |
85~305VAC (70~430VDC) | 3.3VDC | 500mA |
1.65 |
|
PSGS3-S05(-F) |
5VDC | 500mA |
2.5 |
|
|
PSGS3-S09(-F) |
9VDC | 333mA |
3 |
|
|
PSGS3-S12(-F) |
12VDC | 250mA |
3 |
|
|
PSGS3-S15(-F) |
15VDC | 200mA |
3 |
|
|
PSGS3-S24(-F) |
24VDC | 125mA |
3 |
To get in touch with the Wall team about the new PSGS3 series, you can contact us here.
