Wall Industries releases the DCSPM1 and DCSPM2 series of medical converters with 5000VAC/6000VDC isolation

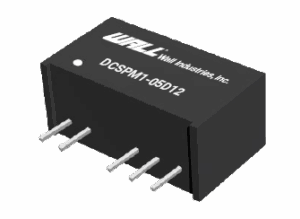

Wall Industries Inc. has recently released the DCSPM family of DC DC converters in an ultra-compact 0.77″ x 0.39″ x 0.49″ through hole package. The DCSPM1 is a 1 watt series offering single and dual output models ranging from 3.3-24VDC with 3.3VDC, 5VDC, 12VDC, 15VDC, or 24VDC input voltage. The DCSPM2 is a 2 watt series offering single and dual output models ranging from 5-24VDC with 5VDC, 12VDC, 15VDC, or 24VDC input voltage.
Features of the DCSPM family include high efficiency, unregulated output types, and 5000VAC or 6000KVDC isolation. It also offers continuous short circuit protection and has IEC60601 medical safety approvals. For full details see the DCSPM1 or DCSPM2 series page.
DCSPM1 Series Details
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCSPM1-xxS03 | 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC | 3.3VDC | 303mA | 75% | 1 Watt |
| DCSPM1-xxS05 | 5VDC | 200mA | 80% | ||
| DCSPM1-xxS09 | 9VDC | 112mA | 80% | ||
| DCSPM1-xxS12 | 12VDC | 84mA | 81% | ||
| DCSPM1-xxS15 | 15VDC | 67mA | 81% | ||
| DCSPM1-xxS24 | 24VDC | 42mA | 81% | ||
| DCSPM1-xxD03 | 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC | ±3.3VDC | ±151mA | 75% | 1 Watt |
| DCSPM1-xxD05 | ±5VDC | ±100mA | 80% | ||
| DCSPM1-xxD09 | ±9VDC | ±56mA | 80% | ||
| DCSPM1-xxD12 | ±12VDC | ±42mA | 81% | ||
| DCSPM1-xxD15 | ±15VDC | ±34mA | 81% | ||
| DCSPM1-xxD24 | ±24VDC | ±21mA | 81% |
DCSPM2 Series Details
| Model Number | Input | Output Voltage | Output Current | Efficiency | Output Power |
| DCSPM2-xxS05 | 5VDC, 12VDC, 15VDC, 24VDC | 5VDC | 400mA | 80% | 2 Watt |
| DCSPM2-xxS09 | 9VDC | 222mA | 80% | ||
| DCSPM2-xxS12 | 12VDC | 167mA | 81% | ||
| DCSPM2-xxS15 | 15VDC | 133mA | 81% | ||
| DCSPM2-xxS24 | 24VDC | 84mA | 81% | ||
| DCSPM2-xxD05 | 5VDC, 12VDC, 15VDC, 24VDC | ±5VDC | ±200mA | 80% | 2 Watt |
| DCSPM2-xxD09 | ±9VDC | ±111mA | 80% | ||
| DCSPM2-xxD12 | ±12VDC | ±84mA | 81% | ||
| DCSPM2-xxD15 | ±15VDC | ±67mA | 81% | ||
| DCSPM2-xxD24 | ±24VDC | ±42mA | 81% |
