ZFW
The ZFW series of high efficiency dc/dc converters provide up to 30 watts of output power. This series has single and dual output models available. These converters are ideal for telecom and networking applications. The ZFW series is designed for a 4:1 input range, either nominal 24VDC (10VDC-40VDC), or nominal 48VDC (18VDC-75VDC). These units are also PCB mountable, with a package size of 2″ x 1.6″ x 0.4″. Standard specifications include L-C type input filter, external trim of ±10%, excellent load regulation, and short-circuit protection. The isolation voltage meets standard telecom requirements of >1600VDC. Special electrical screening (“ES” suffix) is also available please call factory for more details.
• High Efficiency up to 88%
• Fixed Switching Frequency
• Six-Sided Continuous Shield
• 4:1 Wide Input Voltage Range
• Single and Dual Outputs Available

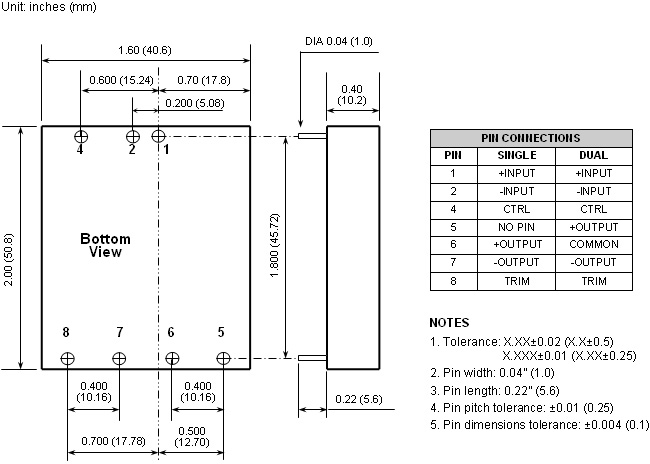

• Standard 2.0” x 1.6” x 0.4” Package
• PCB Mountable
• Heatsink Available
• ISO9001 Certified Manufacturing Facilities
• RoHS II & REACH Compliant
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
• CE Marked
• Over Voltage, Over Load, Over Temperature and Short Circuit Protection
• Negative Remote ON/OFF available
• Electrical Screening available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

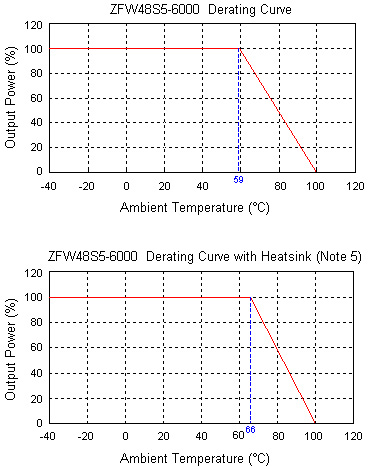

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| ZFW24S1.5-8000 | Input Voltage: 24 | Output Voltage: 1.5 | Output Current: 8A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S1.5-8000 | Input Voltage: 48 | Output Voltage: 1.5 | Output Current: 8A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S1.8-8000 | Input Voltage: 24 | Output Voltage: 1.8 | Output Current: 8A | Output Power (W): 14.4 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S1.8-8000 | Input Voltage: 48 | Output Voltage: 1.8 | Output Current: 8A | Output Power (W): 14.4 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S3.3-6000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S3.3-6000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S2.5-8000 | Input Voltage: 24 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S2.5-8000 | Input Voltage: 48 | Output Voltage: 2.5 | Output Current: 8A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24D12-1250 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24D15-1000 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S12-2500 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S15-2000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW24S5-6000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48D12-1250 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48D15-1000 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S12-2500 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S15-2000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZFW48S5-6000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 10-40, 18-75 |
| Input Filter: | L-C Type |
| Remote ON/OFF: | TTL |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2.5A, 6A, 8A, ±1250mA, ±1000mA |
| Output Power (Watts): | 12, 14.4, 19.8, 20, 30 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| Thermal Protection: | +155°C |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.7 oz. |
| Dimensions: | 2in. × 1.6in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | (1) Typical value at nominal input voltage and full load. (2) Typical value at nominal input voltage and no load. (3) Maximum value at nominal input voltage and full load (4) Test by minimum Vin and constant resistive load. (5) ON/OFF control function: The pin voltage is referenced to negative input. To order negative logic ON/OFF control add the suffix “R”. (6) The ZFW series can meet EN55022 Class A with an external capacitor in parallel with the input pins. Recommended: 24Vin: 6.8µF/50V 1812 MLCC 48Vin: 2.2µF/100V * 2PCS 1812 MLCC (7) Heatsink is optional. Please call factory for ordering details. (8) An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. Suggested filter capacitor: Nippon chemi-con KY series, 220µF/100V, ESR 48mΩ. (9) Option to have case connected to -Vout pin for improved shielding, add the suffix “-C” to the part number and consult factory. (10) For special electrical screening add the suffix “ES” to the part number (see Appendix I on the bottom of page 5). Please call factory for more details. (11) UL approval can be added to any products not currently listed if required. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1EN60950-1IEC60950-1 |
| RoHS Compliance: | Yes |
