ZF
The ZF series of high efficiency dc/dc converters are available in single output versions with 1.5VDC, 1.8VDC, 2.5VDC, and up to 15VDC output, at up to 30 watts of output power. The product is ideal for telecom and networking applications. These converters are designed for a 2:1 input range, either nominal 12VDC (9VDC-18VDC), nominal 24VDC (18VDC-36VDC), or nominal 48VDC (36VDC-75VDC). As well, these units are PCB mountable, with a package size of 2″ x 1.6″ x 0.4″. Standard specifications include L-C input filter, external trim of ±10%, excellent load regulation, and short-circuit protection. The isolation voltage meets standard telecom requirements of >1600VDC.
• 30 Watts Maximum Output Power
• Output Current up to 6A
• Single and Dual Outputs
• Standard 2.0” x 1.6” x 0.4” Package
• 2:1 Wide Input Voltage Range
• High Efficiency up to 90%
• 1600VDC I/O Isolation
• Remote ON/OFF Control
• Fixed Switching Frequency
• Short Circuit, Over Voltage, Over Load, and Over Temperature Protection
• Six-Sided Continuous Shield
• CE Marked
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
• ISO9001 Certified Manufacturing Facilities
• RoHS II & REACH
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

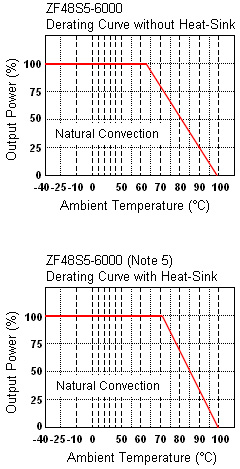

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| ZF12S1.5-6000 | Input Voltage: 12 | Output Voltage: 1.5 | Output Current: 6A | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S1.5-6000 | Input Voltage: 24 | Output Voltage: 1.5 | Output Current: 6A | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S1.5-6000 | Input Voltage: 48 | Output Voltage: 1.5 | Output Current: 6A | Output Power (W): 9 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S1.8-6000 | Input Voltage: 12 | Output Voltage: 1.8 | Output Current: 6A | Output Power (W): 10.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S1.8-6000 | Input Voltage: 24 | Output Voltage: 1.8 | Output Current: 6A | Output Power (W): 10.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S1.8-6000 | Input Voltage: 48 | Output Voltage: 1.8 | Output Current: 6A | Output Power (W): 10.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S2.5-6000 | Input Voltage: 12 | Output Voltage: 2.5 | Output Current: 6A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S2.5-6000 | Input Voltage: 24 | Output Voltage: 2.5 | Output Current: 6A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S2.5-6000 | Input Voltage: 48 | Output Voltage: 2.5 | Output Current: 6A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S3.3-6000 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S3.3-6000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S3.3-6000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 6A | Output Power (W): 19.8 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12D12-1250 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12D15-1000 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S12-2500 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S15-2000 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF12S5-6000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24D12-1250 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24D15-1000 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S12-2500 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S15-2000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF24S5-6000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48D12-1250 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±1250mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48D15-1000 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±1000mA | Output Power (W): 30 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S12-2500 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S15-2000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| ZF48S5-6000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 36-75, 9-18 |
| Input Filter: | L-C Type |
| Remote ON/OFF: | TTL |
| UVLO: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 1.5, 1.8, 2.5, 3.3, 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2A, 2.5A, 6A, ±1250mA, ±1000mA |
| Output Power (Watts): | 9, 10.8, 15, 19.8, 30 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.7 oz. |

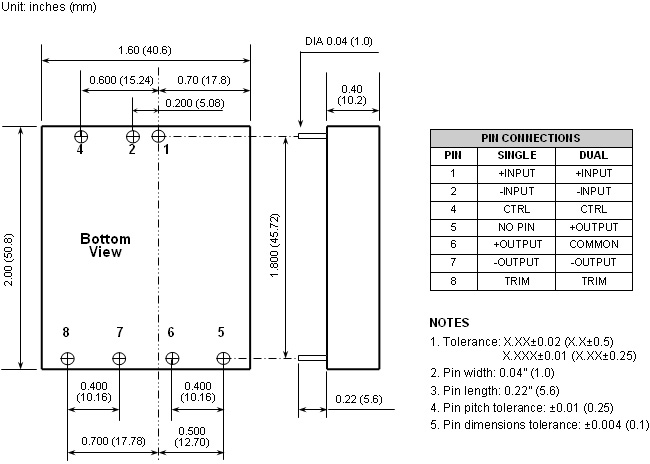

| Dimensions: | 2in. × 1.6in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | (1) Typical value at nominal input voltage and full load. (2) Typical value at nominal input voltage and no load. (3) Maximum value at nominal input voltage and full load. (4) Test by minimum Vin and constant resistive load. (5) The ON/OFF control pin is referenced to –Vin. (6) Heatsink is optional and P/N: 7G-0011C-F (7) The ZF series can meet EN5022 Class A with an external capacitor in parallel with the input pins. Recommended: 12Vin Models: 6.8µF/50V 1812 MLCC 24Vin Models: 6.8µF50V 1812 MLCC 48Vin Models: 2.2µF/100V 1812 MLCC (8) An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. The filter capacitor suggested is Nippon chemi-con KY series, 220µF/100V, ESR 48mΩ. (9) UL approval can be added to any products not currently listed if required. CAUTION: This power module is not internally fused. An input line fuse must always be used. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
