YF/YFW
The YF series of dc/dc converters perform over an ultra-wide input voltage range (2:1 and 4:1), providing indefinite short circuit and overvoltage protection. This design technology provides upt to 20 watts of output power from a 1.60″ x 2.0″ x 0.40″ case. These current mode control forward converters are designed for improved transient response and reduced stress on switching components and do not require external input filtering, making it a preferred source over industry alternatives.
• 20 Watts Output Power
• High Efficiency up to 87%
• Fixed Switching Frequency
• Six-Sided Continuous Shield
• Standard 2” x 1.6” x 0.4” package
• 2:1 and 4:1 Wide Input Voltage Range
• Single, Dual and Triple Outputs Available
• ISO9001 Certified Manufacturing Facilities
• RoHS II & REACH Compliant
• UL60950-1, EN60950-1, and IEC60950-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| YF12S33-4000 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24S33-4000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48S33-4000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 13.2 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12T3.312-17 | Input Voltage: 12 | Output Voltage: 3.3, 12, -12 | Output Current: 3000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12T3.315-17 | Input Voltage: 12 | Output Voltage: 3.3, 15, -15 | Output Current: 300/±25mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12T512-17 | Input Voltage: 12 | Output Voltage: 5, 12, -12 | Output Current: 2000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12T515-17 | Input Voltage: 12 | Output Voltage: 5, 15, -15 | Output Current: 2000/±250mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24T3.312-17 | Input Voltage: 24 | Output Voltage: 3.3, 12, -12 | Output Current: 3000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24T3.315-17 | Input Voltage: 24 | Output Voltage: 3.3, 15, -15 | Output Current: 300/±25mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24T512-17 | Input Voltage: 24 | Output Voltage: 5, 12, -12 | Output Current: 2000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24T515-17 | Input Voltage: 24 | Output Voltage: 5, 15, -15 | Output Current: 2000/±250mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48T3.312-17 | Input Voltage: 48 | Output Voltage: 3.3, 12, -12 | Output Current: 3000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48T3.315-17 | Input Voltage: 48 | Output Voltage: 3.3, 15, -15 | Output Current: 300/±25mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48T512-17 | Input Voltage: 48 | Output Voltage: 5, 12, -12 | Output Current: 2000/±300mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48T515-17 | Input Voltage: 48 | Output Voltage: 5, 15, -15 | Output Current: 2000/±250mA | Output Power (W): 17 | No. Outputs: T | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12D12-830 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12D15-660 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±666mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12D5-2000 | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12S12-1600 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12S15-1330 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF12S5-4000 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24D12-830 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24D15-660 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±666mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24D5-2000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24S12-1600 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24S15-1330 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF24S5-4000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48D12-830 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48D15-660 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±666mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48D5-2000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48S12-1600 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48S15-1330 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YF48S5-4000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24D12-830 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24D15-660 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±666mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24D5-2000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S12-1600 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S15-1330 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S3.3-4000 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S5-4000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D12-830 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D15-660 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±666mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D5-2000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S12-1600 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S15-1330 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S3.3-4000 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S5-4000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 18-36, 18-75, 36-75, 9-18, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | CMOS or TTL |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 4A, 1.67A, 1.33A, ±2000mA, ±833mA, ±666mA, 3000/±300mA, 300/±25A, 2000/±300mA, 2000/±250mA |
| Output Power (Watts): | 13.2, 17, 20 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1.69 oz. |

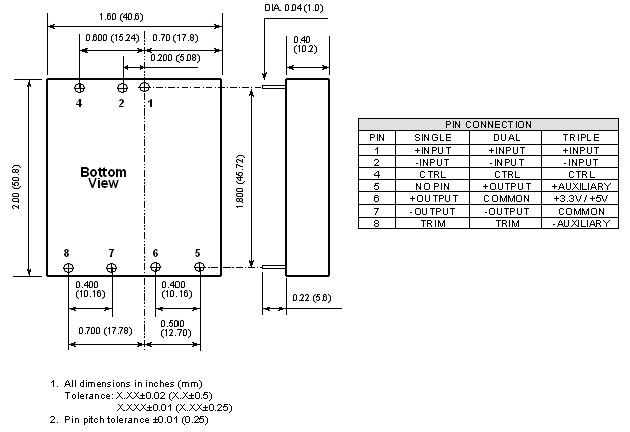

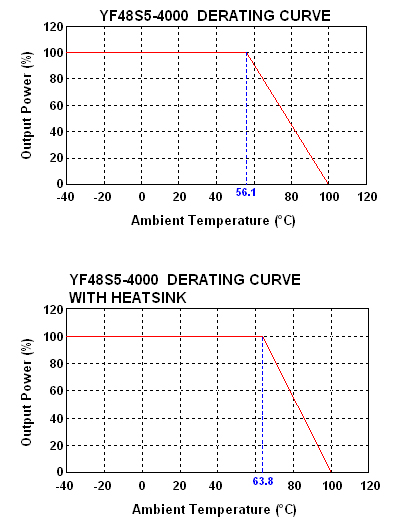

| Dimensions: | 2in. × 1.6in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. MTBF:BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). 2. All DC/DC converters should be externally fused on the front end for protection. 3. The output requires a minimum loading on the output to maintain specified regulation. Operation under no-load condition will not damage these devices, however they may not meet all listed specification. 4. The ON/OFF control pin voltage is referenced to -Vin 5. Heatsink is optional (for operation temperature range please see derating curve). Contact Factory for ordering details. 6. Significant capacitive load on output may inhibit start-up and operation, consult factory. 7. The YF/YFW Series can meet EN55022 Class A with an external capacitor in parallel with the input pins. 8. An external filter capacitor is required if the module has to meet EN61000-4-5. 9. The YF Series is 2:1 wide input range of 9-18VDC, 18-36VDC, and 36-75VDC. The YFW Series is 4:1 ultra wide input range of 9-36VDC and 18-75VDC. 10. Maximum case temperature is 100°C. 11. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60905-1, IEC60950-1 |
| RoHS Compliance: | Yes |
