YFW15
The YFW15 Series of DC/DC converters perform over a 4:1 ultra-wide input voltage range (9-36 and 18-75VDC) providing indefinite short circuit and overvoltage protection. Single and dual outputs are available. This design technology provides up to 15 watts of output power in a standard 1.60″ x 2.0″ x 0.40″ case. These current mode control forward converters are designed for improved transient response and reduced stress on switching components and do not require external input filtering, making it a preferred source over industry alternatives.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

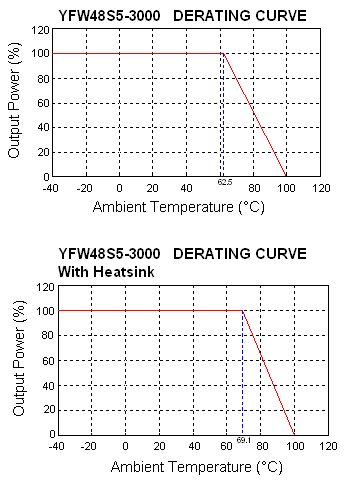

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| YFW24D12-625 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24D15-500 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24D5-1500 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1.5A | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S12-1250 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.25A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S15-1000 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW24S5-3000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D12-625 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D15-500 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48D5-1500 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1.5A | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S12-1250 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.25A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S15-1000 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| YFW48S5-3000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 2" × 1.6" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Positive Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 3A, 1.25, 1A, ±1.5A, ±625mA, ±500mA |
| Output Power (Watts): | 15 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | hiccup, automatic recovery |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 1600VDC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -55 to 105°C |
| Physical | |
| Weight: | 1.69 oz. |

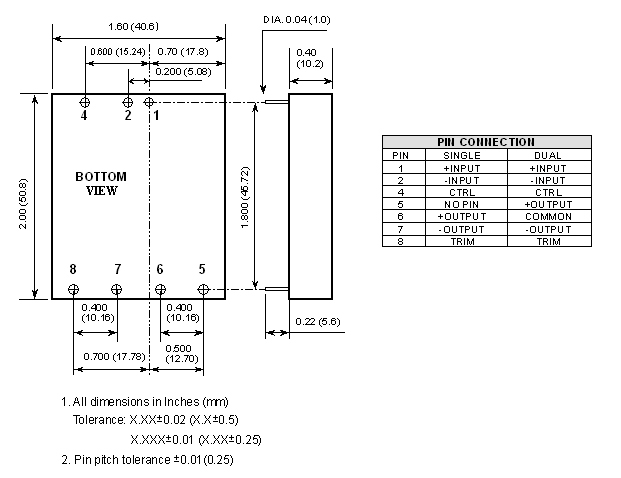

| Dimensions: | 2in. × 1.6in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. MTBF: BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment). 2. The output requires a minimum loading to maintain specified regulation. Operation under no-load condition will not damage these devices, however they may not meet all listed specification. 3. The ON/OFF control pin voltage is reference to -Vin. 4. Heat-sink is optional, please contact factory for ordering details. 5. An external filter capacitor is required if the module has to meet EN61000-4-5. 6. Maximum case temperature is 100°C. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | Pending UL60950-1 |
| RoHS Compliance: | Yes |
