SU
Wall’s SU series offers 1 watt of output power in a four pin SIP (single inline) package. These units are ideal for low power applications, and are highly efficient. The UL94V-0 plastic case is non-conductive, and includes both internal input and output filters.
• Output Current up to 303mA • Internal Input & Output Filter • UL94-V0 Non-Conductive Case • 1 Watt Unregulated Output Power • 4 Pin Single-In-Line Package (SIP) • Input/Output Isolation up to 1000VDC • High Efficiency for Low Power Application • ISO9001 Certified Manufacturing Facilities • Compliant to RoHS II & REACH • Design meets UL60950-1, EN60950-1, & IEC60950-1 • CE Marked • Multiple Input Voltage Ranges
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| SU05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU05S33 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU12S33 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU15S33 | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU24S33 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU33S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU33S12 | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU33S15 | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 66mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU33S33 | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU33S09 | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| SU09S09 | Input Voltage: 9 | Output Voltage: 9 | Output Current: 111mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.45" × 0.24" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24 |
| Input Voltage Range: | 10.8-13.2, 13.5-16.5, 21.6-26.4, 3.0-3.6, 4.5-5.5, 8.1-9.9 |
| Input Filter: | Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15 |
| Voltage Accuracy: | ±5% |
| Output Current: | 303mA, 200mA, 111mA, 84mA, 66mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | 1 Sec. |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 1000VDC Input to Output |
| Environmental | |
| Operating Temperature: | -40 - +85°C Without Derating |
| Storage Temperature: | -55 to +125°C |
| Physical | |
| Weight: | 1 oz. |

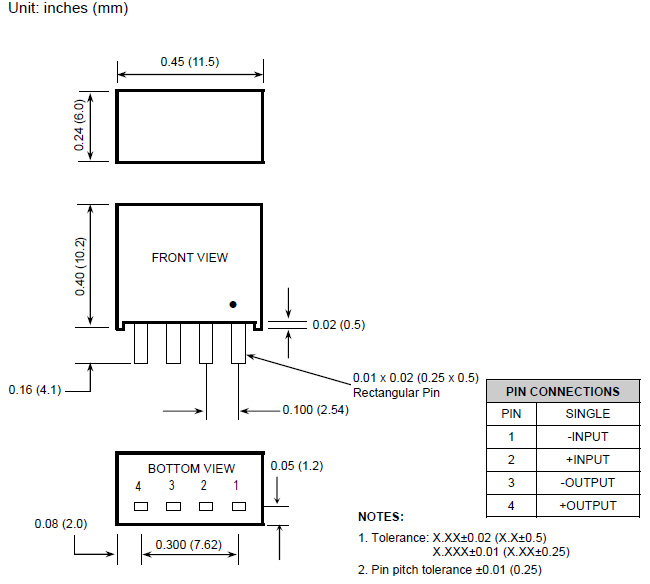

| Dimensions: | 0.45in. × 0.24in. × 0.4in. |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. The SU series requires a minimum 10% loading on the ouput to maintain specified regulation. Operation under no-load conditions will NOT damage these devices, but may affect the performance of listed specifications. 2. Bellcore TR-NWT-000332. Case I: 50% stress, temperature at 40°C. (Ground fixed and controlled environment). 3. Maximum value at nominal input voltage and full load of standard type. 4. Typical value at nominal input voltage and full load. 5. Test by minimum Vin and constant resistor load. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
