RJW
The RJW series of high efficiency dc/dc converters are available as single and dual output versions, 3.3VDC up to 15VDC, with up to 12 watts of output power. They are ideal for telecom and networking applications, and are designed for a 4:1 input range, either nominal 24VDC (9VDC-36VDC) or 48VDC (18VDC-75VDC). The converter is PCB mountable, and the package has a form factor of 2″ x 1″ x 0.4″. Standard specifications include Pi input filter, excellent load regulation, and short-circuit protection. The isolation voltage meets the >1500VDC telecom requirements.
● UL/CUL 1950
● Regulated Output
● > 1500VDC I/O Isolation
● Over Voltage Protection
● Single and Dual Outputs
● Output Power up to 12 Watts
● Continuous Short Circuit Protection
● 4:1 Ultra Wide Input Range, High Efficiency
● Six Sided Shielded, Low Profile 0.4” Height
● No External Input or Output Filtering Required
● Ideal for Telecom and Networking Applications
● Industry Compatible Pin Out, 2” x 1” Form Factor
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RJW24S33-2400 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 7.92 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48S33-2400 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2.4A | Output Power (W): 7.92 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24D5-1000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: 1A | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24S5-2000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48D5-1000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: 1A | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48S5-2000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24D12-500 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24D15-400 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: 400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24S12-1000 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW24S15-800 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48D12-500 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: 500mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48D15-400 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: 400mA | Output Power (W): 12 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48S12-1000 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1A | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| RJW48S15-800 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 800mA | Output Power (W): 12 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | LC Filter |
| Remote ON/OFF: | Optional |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 2.4A, 2A, 1A, 500mA, 800mA, 400mA |
| Output Power (Watts): | 7.92, 10, 12 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | >1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 71°C |
| Storage Temperature: | -40 to 125°C |
| Physical | |
| Weight: | 1 oz. |

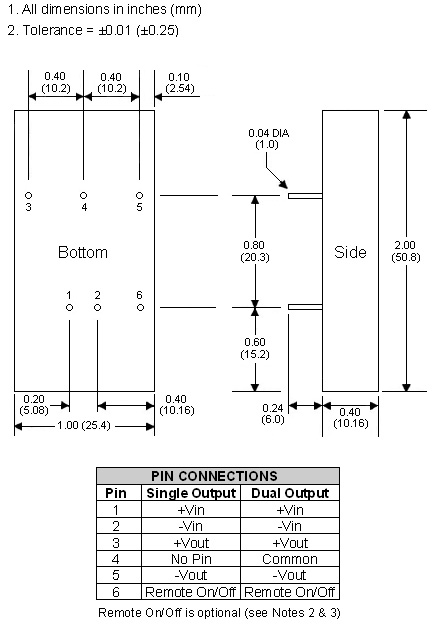

| Dimensions: | 2in. × 1in. × 0.4in. |
| Case Material: | Metal Case |
| Notes & safety | |
| Notes: | 1. For negative logic remote On/Off add suffix "R" to part number. 2. To add remote option and pin, add suffix "RC". 3. Remote On/Off models do not have UL1950 approval. 4. All case and pin-to-case dimensions are for reference only unless otherwise noted. 5. All DC/DC converters should be externally fused at the front end for protection. 6. Significant capacitive load at the output of the converter may inhibit the start-up and operation. 7. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
