RDW15

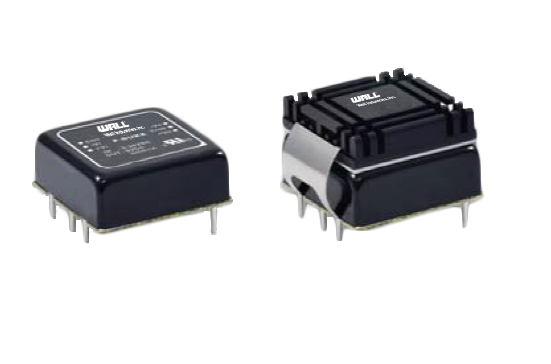

The RDW15 series of DC/DC converters offers up to 15 watts of output power in an ultra-compact 1” x 1” x 0.39” package with optional heatsink. This series consists of single and dual output models with a wide 4:1 input voltage range and low standby power. This series features high efficiency, remote on/off, six sided shielding, as well as 3000VDC isolation voltage. The RDW15 series also has over voltage, over load, and short circuit protection and is RoHS and REACH compliant. It also has IEC/UL/EN60950-1 and IEC/UL/EN62368-1 safety approvals and is useful in many applications. Please contact factory for ordering details.
• 4:1 Wide Input Voltage Range
• Low Standby Power
• RoHS & REACH Compliant
• 3000VDC Isolation Voltage
• Optional Heatsink
• High Efficiency
• Remote On/Off
• Six Sided Shielding
• Over Voltage, Over Load, and Short Circuit Protection
• IEC/UL/EN60950-1 & IEC/UL/EN62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RDW15-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 4500mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1300mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48S03 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 4500mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1300mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110S03 | Input Voltage: 110 | Output Voltage: 3.3 | Output Current: 4500mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 1300mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24D05 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-24D24 | Input Voltage: 24 | Output Voltage: 24, -24 | Output Current: ±315mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48D05 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-48D24 | Input Voltage: 110 | Output Voltage: 24, -24 | Output Current: ±315mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110D05 | Input Voltage: 110 | Output Voltage: 5, -5 | Output Current: ±1500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110D12 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±625mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110D15 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±500mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| RDW15-110D24 | Input Voltage: 110 | Output Voltage: 24, -24 | Output Current: ±315mA | Output Power (W): 15 | No. Outputs: D | Case: Through Hole | Size: 1" x 1" x 0.39" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 9~36, 18~75, 36~160 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, ±5, ±12, ±15, ±24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 625mA, 1000mA, 1300mA, 3000mA, 4500mA, ±315mA, ±500mA, 625mA, ±1500mA |
| Output Power (Watts): | 15 |
| Output Trim/Adjustability: | 15V & 24V Models: -10 to +20% Other Single Output Models: ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | 3.3V Models: 3.7-5.4VDC 5V Models: 5.6-7.0VDC 12V Models: 13.5-19.6VDC 15V Models: 18.3-22VDC 24V Models: 29.1-32.5VDC |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | Input to Output: 3600VDC Input (Output) to Case: 1600VDC |
| Environmental | |
| Operating Temperature: | Standard: -40 to +105ºC M3 Version: -55 to +105ºC |
| Storage Temperature: | -55 to 125ºC |
| Physical | |
| Weight: | 0.58oz (16.5g) |

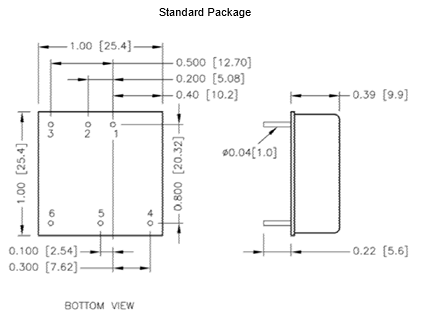

| Dimensions: | Standard: 1in x 1in x 0.39in (25.4mm x 25.4mm x 9.9mm) Heatsink Option: 1in x 1.19in x 0.65in (25.4mm x 30.1mm x 16.5mm) |
| Case Material: | Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. Several options are available for this series that affect model number setup. See data sheet for more information. 2. RDW15-xxxD05 Models meets the railway TX temperature requirement as power derating to 7W output power. The other models meet the railway TX temperature requirement as power derating to 10W output power. 3. 24Vin Nominal models: with aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V) and a TVS (SMDJ58A, 58V, 3000 Watt peak pulse power) in parallel. 48Vin Nominal models: with an aluminum electrolytic capacitor (Nippon chemi-con KY series, 220µF/100V). 110Vin Nominal models: with an aluminum electrolytic capacitor (Nippon chemi-con KXJ series, 150µF/200V) and a TVS (SMBJ300A, 300V, 600 Watt peak pulse power) in parallel 4. This product is Listed to applicable standards and requirements by UL. CAUTION: This power module is note internally fused. An input line fuse must always be used. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/UL/EN60950-1 UL E193009, IEC/UL/EN62368-1 CB: UL (Demko) |
| RoHS Compliance: | Yes |
