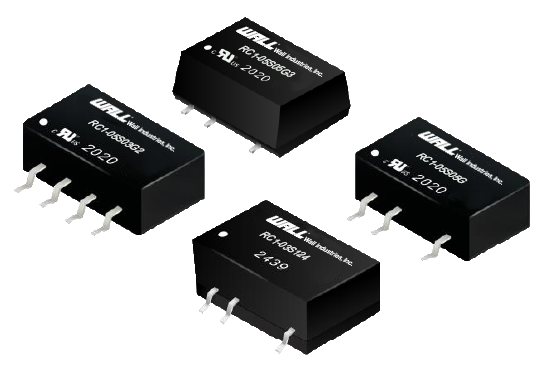

RC1
The RC1 series of DC/DC converters offers 1 watt of output power in a compact package. This series consists of unregulated single output models with several wide input voltage ranges available. Each model features an industry standard pinout, SMD package, as well as high efficiency. This series also has short circuit protection, RoHS compliance, and UL/cUL/IEC/EN 62368-1 approval.
• Wide Input Voltage Ranges
• 14Pin SMD Package
• Unregulated Output Types
• RoHS Compliant
• High Efficiency
• 4 Package Types Available
• Industry Standard Pinout
• No Load Input Current as Low as 5mA
• Continuous Short Circuit Protection
• 1.5KVDC ~ 3KVDC Isolation
• UL/cUL/IEC/EN 62368-1 Approved
• CB Report
Part Number Setup:

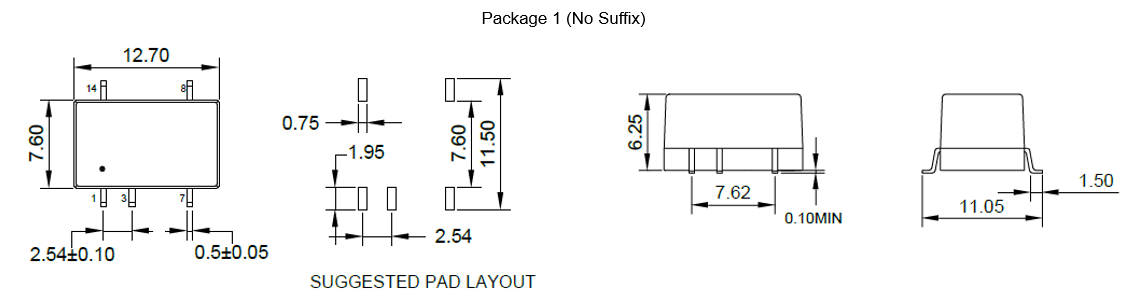

No suffix = 1.5kvdc isolation and Package 1.
"H3" Suffix =High Isolation

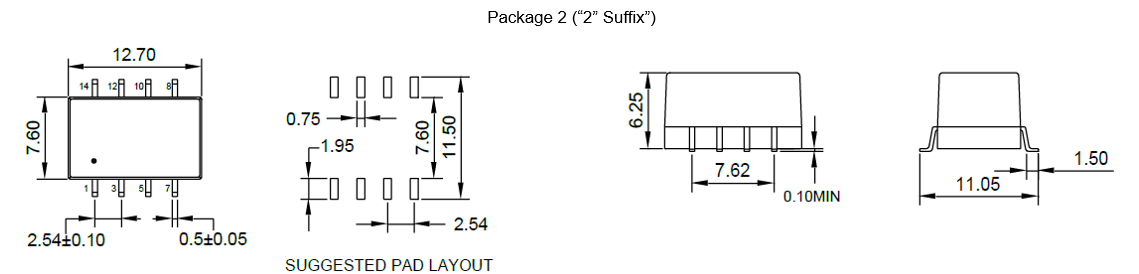

"2" = Package 2

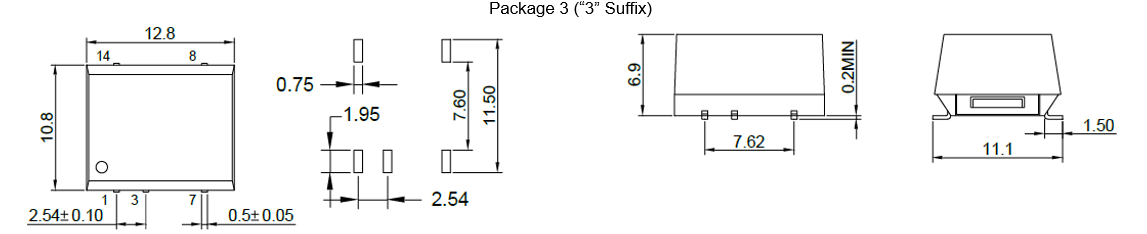

"3" = Package 3

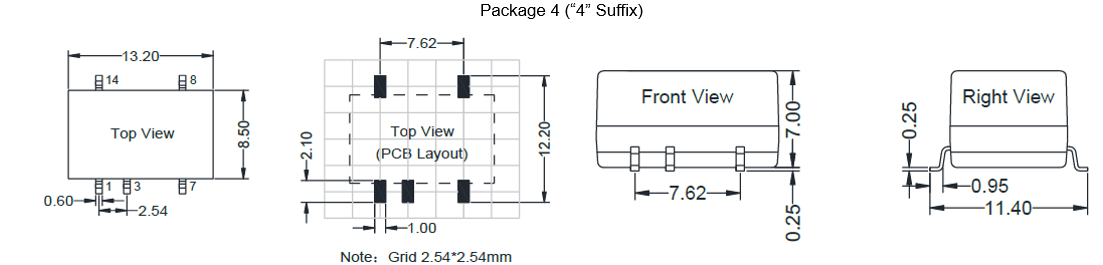

"4" = Package 4
*Package Type 1 & 2 are not available for 24Vin
No suffix = 1.5kvdc isolation and Package 1.
"H3" Suffix =High Isolation
"2" = Package 2
"3" = Package 3
"4" = Package 4
*Package Type 1 & 2 are not available for 24Vin
Example:
RC1-05S09H33 = 5Vin, 9Vout, Package 3 and High Isolation
RC1-05S09H33 = 5Vin, 9Vout, Package 3 and High Isolation
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RC1-03S03 | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-03S05 | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-03S09 | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-03S12 | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-03S15 | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-03S24 | Input Voltage: 3.3 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S03 | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S05 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S09 | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S12 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S15 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-05S24 | Input Voltage: 5 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S03 | Input Voltage: 9 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S05 | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S09 | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S12 | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S15 | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-09S24 | Input Voltage: 9 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S03 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Through Hole | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S05 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S09 | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S12 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S15 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-12S24 | Input Voltage: 12 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S03 | Input Voltage: 15 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S05 | Input Voltage: 15 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S09 | Input Voltage: 15 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S12 | Input Voltage: 15 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S15 | Input Voltage: 15 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-15S24 | Input Voltage: 15 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S03 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S09 | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| RC1-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 42mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.5" x 0.3" x 0.25" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24 |
| Input Voltage Range: | 2.97~3.63, 4.5~5.5, 8.1~9.9, 9.6~14.4, 12~18, 19.2~28.8 |
| Input Filter: | Capacitor |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Output Current: | 42mA, 67mA, 84mA, 112mA, 200mA, 303mA |
| Output Power (Watts): | 1 |
| Short Circuit Protection: | Continuous, Self Recovery |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | Standard: 1.5kVDC High Isolation: 3kDC |
| Environmental | |
| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | Package 1 & 2: 0.042oz (1.2g) Package 3: 0.045oz (1.28g) Package 4: 0.048oz (1.36g) |
| Dimensions: | Package 1 & 2: 0.5in x 0.3in x 0.25in (12.7mm x 7.6mm x 6.25mm) Package 3: 0.5in x 0.43in x 0.27in (12.8mm x 10.8mm x 6.9mm) Package 4: 0.52in x 0.33in x 0.28in (13.2mm x 8.5mm x 7mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. Several options are available for this series. No suffix indicates 1.5kvdc isolation and Package 1. To indicate high isolation, add “H3” suffix to part number. To indicate Package 2, add “2” to part number. To indicate Package 3, add “3” to part number. To indicate Package 4, add “4” to part number. Note: Package Type 1 & 2 are not available for 24Vin. 2. This product is Listed to applicable standards and requirements by UL. 3. See Fig. 1 for recommended circuit. |
| Safety Approvals: | IEC62368, UL62368, and EN62368 |
| RoHS Compliance: | Yes |
