RC
The RC series of 1 watt DC/DC power converters are specially designed to provide high levels of isolation in a 22-PIN SMT package. This series consists of 50 models with nominal input voltages of 3.3V, 5V, 9V, 12V, and 15V and standard unregulated output voltages of 3.3V, 5V, 9V, 12V, and 15V in both single and dual output configurations. The RC series is highly suitable for high speed SMT pick-and-place machine operation. The operating temperature range of -40°C to +85°C is ideal for designers requiring industrial temperature operation. The RC series is RoHS compliant and has UL60950-1 safety approvals.
• 1 Watt Output Power
• RoHS Compliant
• Unregulated Single & Dual Outputs
• High I/O Isolation: 3000VDC
• No External Components Required
• Tape and Reel Available (350 piece MOQ)
• -40°C to +85°C Operating Temperature
• 22-PIN SMT Package and Industry Standard Pin-out
• High Efficiency up to 80%
• Recognized by UL60950-1
• MTBF > 3,500,000 Hours
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| RC12D12-42NH | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12D15-33NH | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12D5-100NH | Input Voltage: 12 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12D9-55NH | Input Voltage: 12 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12S12-83NH | Input Voltage: 12 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12S5-200NH | Input Voltage: 12 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC5D12-42NH | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC5D15-33NH | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC5D5-100NH | Input Voltage: 5 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29 | Get a Quote |
| RC5D9-55NH | Input Voltage: 5 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29 | Get a Quote |
| RC5S12-83NH | Input Voltage: 5 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC5S5-200NH | Input Voltage: 5 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC5S33-303NH | Input Voltage: 5 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC5D33-150NH | Input Voltage: 5 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC5S9-112NH | Input Voltage: 5 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC5S15-67NH | Input Voltage: 5 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12S33-303NH | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12D33-150NH | Input Voltage: 12 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12S9-112NH | Input Voltage: 12 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC12S15-67NH | Input Voltage: 12 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC33S33-303NH | Input Voltage: 3.3 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33D33-150NH | Input Voltage: 3.3 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33S5-200NH | Input Voltage: 3.3 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33D5-100NH | Input Voltage: 3.3 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33S9-112NH | Input Voltage: 3.3 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33D9-55NH | Input Voltage: 3.3 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC33S12-83NH | Input Voltage: 3.3 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC33D12-42NH | Input Voltage: 3.3 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC33S15-67NH | Input Voltage: 3.3 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC33D15-33NH | Input Voltage: 3.3 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC9S33-303NH | Input Voltage: 9 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9D33-150NH | Input Voltage: 9 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9S5-200NH | Input Voltage: 9 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9D5-100NH | Input Voltage: 9 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9S9-112NH | Input Voltage: 9 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9D9-55NH | Input Voltage: 9 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.29" | Get a Quote |
| RC9S12-83NH | Input Voltage: 9 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC9D12-42NH | Input Voltage: 9 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC9S15-67NH | Input Voltage: 9 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC9D15-33NH | Input Voltage: 9 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC15D33-150NH | Input Voltage: 15 | Output Voltage: 3.3, -3.3 | Output Current: ±150mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC15D5-100NH | Input Voltage: 15 | Output Voltage: 5, -5 | Output Current: ±100mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC15D9-55NH | Input Voltage: 15 | Output Voltage: 9, -9 | Output Current: ±56mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC15D12-42NH | Input Voltage: 15 | Output Voltage: 12, -12 | Output Current: ±42mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC15D15-33NH | Input Voltage: 15 | Output Voltage: 15, -15 | Output Current: ±34mA | Output Power (W): 1 | No. Outputs: D | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC24S33-303NH | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 303mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC24S5-200NH | Input Voltage: 24 | Output Voltage: 5 | Output Current: 200mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC24S9-112NH | Input Voltage: 24 | Output Voltage: 9 | Output Current: 112mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC24S12-83NH | Input Voltage: 24 | Output Voltage: 12 | Output Current: 84mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| RC24S15-67NH | Input Voltage: 24 | Output Voltage: 15 | Output Current: 67mA | Output Power (W): 1 | No. Outputs: S | Case: Surface Mount | Size: 0.6" x 0.31" x 0.33" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 3.3, 5, 9, 12, 15, 24 |
| Input Voltage Range: | 10.8-13.2, 13.5-16.5, 2.97-3.63, 4.5-5.5, 8.1-9.9 |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, ±3.3, ±5, ±9, ±12, ±15 |
| Voltage Accuracy: | ±5% |
| Output Current: | 303mA, 200mA, 112mA, 84mA, 67mA, ±150mA, ±100mA, ±56mA, ±42mA, ±34mA |
| Output Power (Watts): | 1 |
| General | |
| Efficiency: | Up to 80% |
| Environmental | |

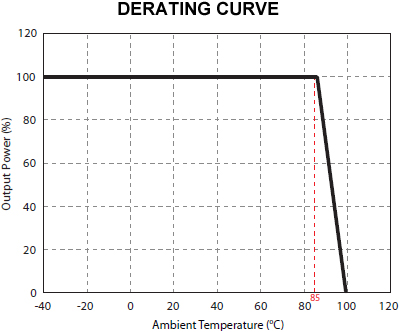

| Operating Temperature: | -40 to 100°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 0.06 oz. |

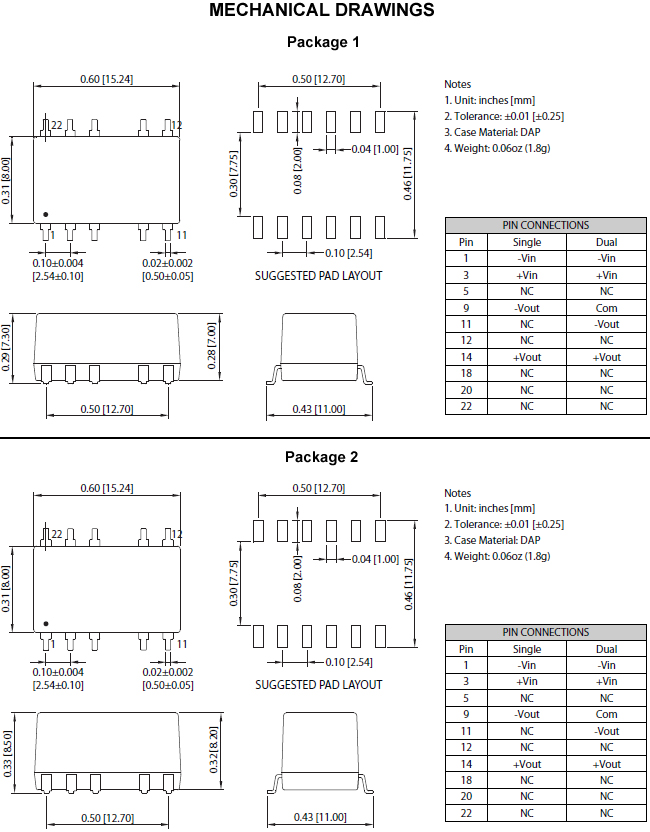

| Dimensions: | Package 1: 0.60" x 0.31" x 0.29" (15.24 x 8.0 x 7.30 mm) Package 2: 0.60" x 0.31" x 0.33" (15.24 x 8.0 x 8.50 mm) |
| Case Material: | DAP |
| Notes & safety | |
| Notes: | 1. The RC series requires a ±10% minimum output load to maintain all specified regulations. 2. As the input voltage increases, the efficiency will also increase. 3. This product is listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1 |
| RoHS Compliance: | Yes |
