POL10-12T
The POL10-12T series of DC/DC point of load power supplies offers a 10A output current rating and 7.5~50 watts in a small size and low profile package. This series consists of single output models with and input voltage range of 8.3~14VDC or 8.3~13.2VDC. Several options are available for this series including remote control positive or negative logic and SMD or SIP package. Each model is RoHS II & REACH compliant, CE marked, and has over load, over temperature, and short circuit protection. This series has UL60950-1, EN60950-1, and IEC60950-1 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| POLS10-12T | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLS10-12T-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 1.3" x 0.53" x 0.3" | Get a Quote |
| POLT10-12T | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-12T-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-12TA | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| POLT10-12TA-P | Input Voltage: 12 | Output Voltage: 0.75~5 | Output Current: 10A | Output Power (W): 7.5~50 | No. Outputs: S | Case: POL | Size: 2" x 0.5" x 0.28" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12 |
| Input Voltage Range: | 8.3~13.2, 8.3~14 |
| Input Filter: | Capacitor Type |
| Remote ON/OFF: | Yes |
| Output | |
| Output Voltage: | 0.75~5 |
| Voltage Accuracy: | ±2% |
| Output Current: | 10A |
| Output Power (Watts): | 7.5~50 |
| Output Trim/Adjustability: | 0.7525-5VDC |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Thermal Protection: | 125ºC |
| General | |
| Efficiency: | 93% |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -55 to +125ºC |
| Physical | |
| Weight: | 0.21oz (6g) |

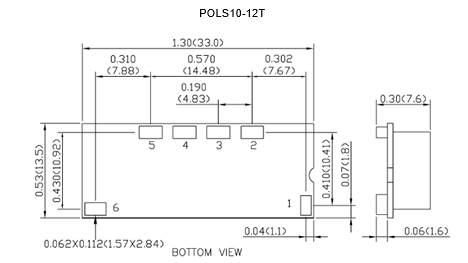

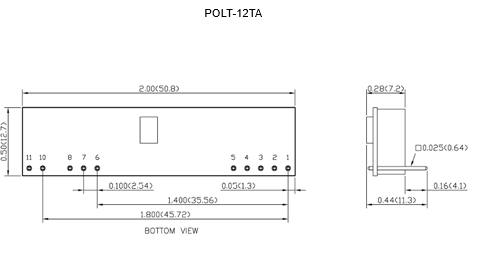

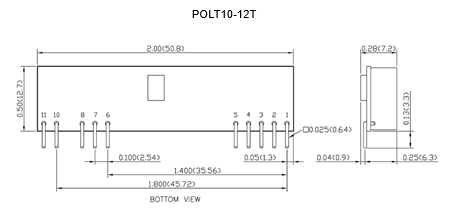

| Dimensions: | SMT Package: 1.30in x 0.53in x 0.30in SIP Package: 2.00in x 0.50in x 0.28in |
| Notes & safety | |
| Notes: | 2. It’s necessary to equip the external input capacitors at the input of the module. The capacitors should connect as close as possible to the input terminals that ensure module stability. The external Cin is 4pcs of 47µF ceramic capacitors at least. 3. Output voltage is programmable from 0.7525V to 5V by connecting a single resistor (shown as Trim Table) between the Trim and GND pins of the module. See data sheet for equation. 4. Remote On/Off Referred to –Vin pin 5. Positive Logic: ON/OFF is open collector/drain logic input Negative Logic: ON/OFF is open collector/drain logic input with external pull –up resistor 6. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
