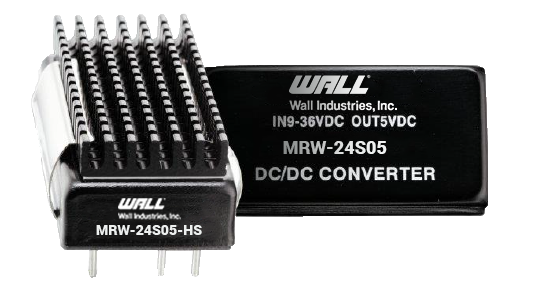

MRW10
The MRW10 series of DC/DC converters offers up to 10 watts of output power in a compact, industrial standard package. This series consists of single and dual output models with ultra-wide input voltage range. Each model in this series has high efficiency, no minimum load requirement, as well as over load, over voltage, and short circuit protection. This series has UL/cUL/IEC/EN 62368-1 (60950-1) safety approvals and CE markings.
• Ultra Wide Input Range
• I/O Isolation 3000VAC with Reinforced Insulation
• No Minimum Load Requirement
• Remote On/Off, Output Voltage Trim
• RoHS & REACH Compliant
• Over Load, Over Voltage, and Short Circuit Protection
• Railway Standard
• UL/cUL/IEC/EN 62368-1 (60950-1) Safety Approval & CE Marking (Pending)
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| MRW10-24S05 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-24S12 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 835mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-24S15 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-24S24 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48S05 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48S12 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 835mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48S15 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48S24 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110S05 | Input Voltage: 110 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110S12 | Input Voltage: 110 | Output Voltage: 12 | Output Current: 835mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110S15 | Input Voltage: 110 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110S24 | Input Voltage: 110 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-24D12 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±417mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-24D15 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±335mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48D12 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±417mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-48D15 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±335mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110D12 | Input Voltage: 110 | Output Voltage: 12, -12 | Output Current: ±417mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| MRW10-110D15 | Input Voltage: 110 | Output Voltage: 15, -15 | Output Current: ±335mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1" x 2" x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48, 110 |
| Input Voltage Range: | 9~36, 18~75, 40~160 |
| Input Filter: | Internal Pi Type |
| Remote ON/OFF: | Yes |
| UVLO: | 24V Input Models: 7.5VDC 48V Input Models: 16VDC 110V Input Models: 37VDC |
| Output | |
| Output Voltage: | -15, -12, 5, 12, 15, 24 |
| Voltage Accuracy: | ±1% |
| Output Current: | 417mA, 670mA, 835mA, 2000mA, ±335mA, ±417mA |
| Output Power (Watts): | 10 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 5V Models: 6.2V 12V Models: 15V 15V Models: 18V 24V Models: 30V ±12V Models: ±15V ±15V Models: ±18V |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 3000VACrms |
| Environmental | |
| Operating Temperature: | See Datasheet |
| Storage Temperature: | -50 to +125ºC |
| Physical | |
| Weight: | 1.43oz (40.5g) |
| Dimensions: | 1in x 2in x 0.43in (25.4mm x 50.8mm x 11mm) |
| Case Material: | Aluminum Alloy, Black Anodized Coating |
| Shielding: | Six Sided |
| Notes & safety | |

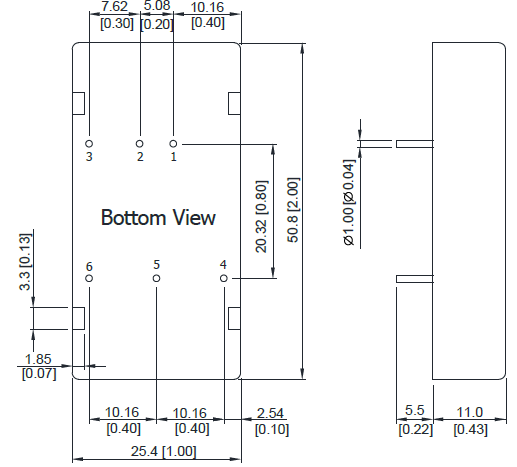

| Notes: | 1. Two pinning types are available. Add “A” to model number to indicate A pinning (See mechanical drawings for more detail) Heat sink is also available. Add “HS” to model number to indicate Heatsink. 2. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 3. We recommend protecting the converter by a slow blow fuse in the input supply line. 4. Other input and output voltages may be available, please contact factory. 5. Natural convection is about 20LFM but is not equal to still air (0 LFM). 6. To meet EN61000-4-4 & EN61000-4-5 an external capacitor across the pins is required. Suggested capacitors: 24V In: CHEMI-CON KY Series 390µF/63V 48V In: CHEMI-CON KY Series 330µF/100V 110V In: CHEMI-CON KXG Series 220µF/250V. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 Recognition (UL Certificate), IEC/EN 60950-1 (CB Report), EN 50155, IEC 60571, UL/cUL 62368-1 recognition (UL Certificate), IEC/EN 62368-1 (CB-Report) |
| RoHS Compliance: | Yes |
