MDW
The MDW series consists of single output DC/DC converters that provides 20 watts of output power in a low profile 2 x 1 x 0.4 inch package. These converters feature a 4:1 wide input voltage range of 9-36VDC or 18-75VDC as well as positive or negative remote on/off, 1600VDC I/O isolation, trimmable output voltage, and six-sided shielding. These converters are also protected against over current, over voltage, input under voltage, and short circuit conditions. All models are particularly suited for telecommunications, industrial, mobile telecom, and test equipment applications.
• High Efficiency up to 89%
• Six-Sided Continuous Shielding
• 20 Watts Maximum Output Power
• 4:1 Ultra Wide Input Voltage Range
• Over Current, Over Voltage, Input Under Voltage, and Short Circuit Protection
• Standard 2.0” x 1.0” x 0.4” Package
• Compliant to RoHS II & REACH
• CE Marked
• UL60950-1, EN60950-1 & IEC60950-1 Safety Approvals
• Optional Negative Logic Remote ON/OFF
• Useful in Multiple Applications
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| MDW24D12-833 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24D15-667 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±677mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24D5-2000 | Input Voltage: 24 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24S12-1670 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24S15-1330 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24S3.3-5500 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 5.5A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW24S5-4000 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48D12-833 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±833mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48D15-667 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±677mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48D5-2000 | Input Voltage: 48 | Output Voltage: 5, -5 | Output Current: ±2000mA | Output Power (W): 20 | No. Outputs: D | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48S12-1670 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48S15-1330 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 1.33A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48S3.3-5500 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 5.5A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| MDW48S5-4000 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: Through Hole | Size: 2" × 1" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 24, 48 |
| Input Voltage Range: | 18-75, 9-36 |
| Input Filter: | Pi Type |
| Remote ON/OFF: | Positive or Negative Logic |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, ±5, ±12, ±15 |
| Voltage Accuracy: | ±1% |
| Output Current: | 5.5A, 4A, 1.67A, 1.33A, ±2000mA, ±833mA, ±667mA |
| Output Power (Watts): | 18, 20 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Continuous, Automatic Recovery |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | Up to 88% |
| Isolation: | 1600VDC |
| Environmental | |

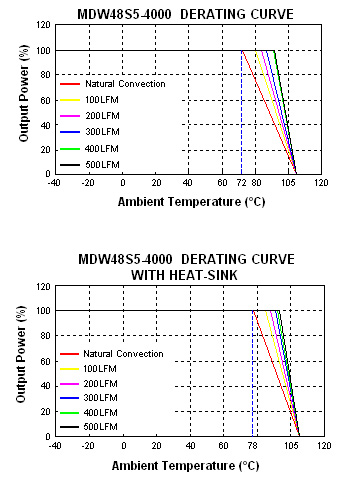

| Operating Temperature: | -40 to 105°C |
| Storage Temperature: | -55 to 125°C |
| Physical | |
| Weight: | 1 oz. |

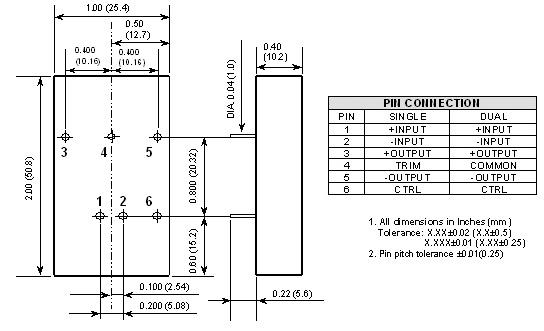

| Dimensions: | 2in. × 1in. × 0.4in. |
| Case Material: | Nickel-Coated Copper |
| Shielding: | Six-Sided |
| Notes & safety | |
| Notes: | 1. The On/Off control function is positive logic (standard) and negative logic (optional). The pin voltage is referenced to the negative input. To order negative logic On/Off control add the suffix "R" (Ex. MDW48S5-4000R). 2. MTBF: BELLCORE TR-NWT-000332 Case 1: 50% stress, temperature at 40°C (ground fixed and controlled environment). MIL-STD-217F Notice 2 @ Ta = 25°C, full load (ground, benign, controlled environment). 3. Heat sink is optional, call factory for ordering details. 4. The MDW Series required an external filter to meet EN55022 class A. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1, IEC60950-1 |
| RoHS Compliance: | Yes |
