MDHU100
The MDHU100 series power modules are 2W DC/DC converters that are specially designed to provide ultra-high levels of isolation (4000VAC) in a miniature DIP package. These converters operate over input voltage ranges of 4.5~5.5VDC, 10.8~13.2VDC, and 21.6~26.4VDC. This series also has single and dual output voltages of 5, 12, 15, ±12, and ±15VDC. These converters have both medical (UL60601-1) and industrial (UL60950-1) safety approvals and are useful for a variety of applications including distributed power systems, mixed analog/digital subsystems, portable test equipment, local power networks, and battery-backed systems.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

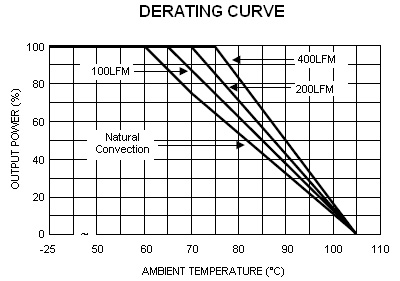

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| MDHU1205N2 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU1212N2 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU1212ND2 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU1215N2 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU1215ND2 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU2405N2 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU2412N2 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU2412ND2 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU2415N2 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU2415ND2 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU505N2 | Input Voltage: 5 | Output Voltage: 5 | Output Current: 400mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU512N2 | Input Voltage: 5 | Output Voltage: 12 | Output Current: 165mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU512ND2 | Input Voltage: 5 | Output Voltage: 12, -12 | Output Current: ±83mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU515N2 | Input Voltage: 5 | Output Voltage: 15 | Output Current: 133mA | Output Power (W): 2 | No. Outputs: S | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| MDHU515ND2 | Input Voltage: 5 | Output Voltage: 15, -15 | Output Current: ±66mA | Output Power (W): 2 | No. Outputs: D | Case: Through Hole | Size: 0.94" × 0.54" × 0.34" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 5, 12, 24 |
| Input Voltage Range: | 10.8-13.2, 21.6-26.4, 4.5-5.5 |
| Input Filter: | Internal Capacitor |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 5, 12, 15, ±12, ±15 |
| Voltage Accuracy: | ±2% |
| Output Current: | 400mA, 165mA, 133mA, ±83mA, ±66mA |
| Output Power (Watts): | 2 |
| Short Circuit Protection: | 0.5 seconds max. |
| General | |
| Efficiency: | Up to 75% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -25 to 60°C |
| Storage Temperature: | -40 to 125°C |
| Physical | |
| Weight: | 0.18 oz. |

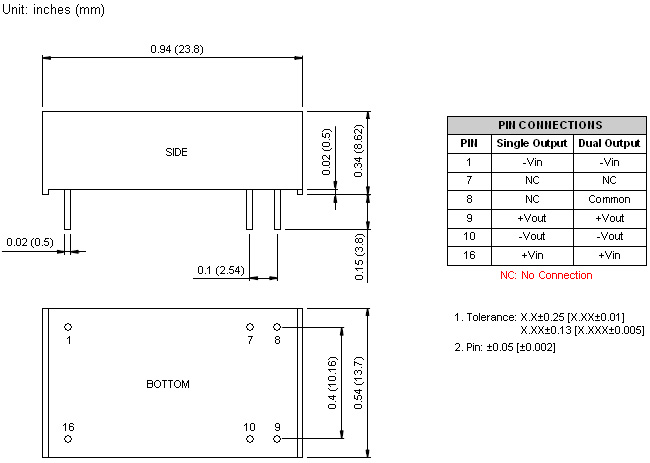

| Dimensions: | 0.94in. × 0.54in. × 0.34in. |
| Case Material: | Non-Conductive Black Plastic |
| Notes & safety | |
| Notes: | 1. The MDHU100 series requires a minimum output loading to maintain specified regulations. Operation under no-load conditions will not damage these devices, however they may not meet all listed specifications. 2. All DC/DC converters should be externally fused at the front end for protection. 3. Other input and output voltages may be available, please contact factory. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60601-1, UL60950-1 |
| RoHS Compliance: | Yes |
