LANK H

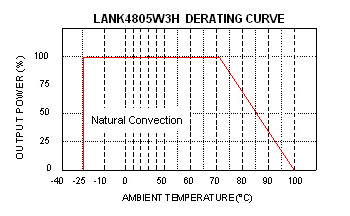

The LANK “H” series offers 3 watts of output power from a package in IC compatible 24 pin DIP and SMT configurations without derating to 71ºC ambient temperature. The LANK “H” Series has 2:1 wide input voltage of 4.5-6, 9-18, 18-36 and 36-75VDC; it also offers both single and dual ouputs. This series features 3000VDC of isolation and short circuit protection. Add suffix “I” for –40°C to +71°C ambient operation. All models are particularly suited to telecommunications, industrial, mobile, telecom and test equipment applications.

● 3000VDC I/O Isolation ● Over Current Protection ● MTBF > 3,000,000 Hours ● High Efficiency up to 80% ● 2:1 Wide Input Voltage Range ● 3 Watts Regulated Output Power ● International Safety Standard Approval ● Standard 24 Pin DIP Package and SMT Type Package
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
LANK123.3W3H Input Voltage: 12 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Through Hole Get a Quote
LANK243.3W3H Input Voltage: 24 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Through Hole Get a Quote
LANK483.3W3H Input Voltage: 48 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Through Hole Get a Quote
LANK53.3W3H Input Voltage: 5 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Through Hole Get a Quote
LANK123.3W3HS Input Voltage: 12 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
LANK243.3W3HS Input Voltage: 24 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
LANK483.3W3HS Input Voltage: 48 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
LANK53.3W3HS Input Voltage: 5 Output Voltage: 3.3 Output Current: 600mA Output Power (W): 2 No. Outputs: S Case: Surface Mount Get a Quote
LANK1205DW3H Input Voltage: 12 Output Voltage: 5, -5 Output Current: 600mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK1205W3H Input Voltage: 12 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK1212DW3H Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK1212W3H Input Voltage: 12 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK1215DW3H Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK1215W3H Input Voltage: 12 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK2405DW3H Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK2405W3H Input Voltage: 24 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK2412DW3H Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK2412W3H Input Voltage: 24 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK2415DW3H Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK2415W3H Input Voltage: 24 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK4805DW3H Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK4805W3H Input Voltage: 48 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK4812DW3H Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK4812W3H Input Voltage: 48 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK4815DW3H Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK4815W3H Input Voltage: 48 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK505DW3H Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK505W3H Input Voltage: 5 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK512DW3H Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK512W3H Input Voltage: 5 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK515DW3H Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Through Hole Get a Quote
LANK515W3H Input Voltage: 5 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Through Hole Get a Quote
LANK1205DW3HS Input Voltage: 12 Output Voltage: 5, -5 Output Current: 600mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK1205W3HS Input Voltage: 12 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK1212DW3HS Input Voltage: 12 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK1212W3HS Input Voltage: 12 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK1215DW3HS Input Voltage: 12 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK1215W3HS Input Voltage: 12 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK2405DW3HS Input Voltage: 24 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK2405W3HS Input Voltage: 24 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK2412DW3HS Input Voltage: 24 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK2412W3HS Input Voltage: 24 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK2415DW3HS Input Voltage: 24 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK2415W3HS Input Voltage: 24 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK4805DW3HS Input Voltage: 48 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK4805W3HS Input Voltage: 48 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK4812DW3HS Input Voltage: 48 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK4812W3HS Input Voltage: 48 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK4815DW3HS Input Voltage: 48 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK4815W3HS Input Voltage: 48 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK505DW3HS Input Voltage: 5 Output Voltage: 5, -5 Output Current: ±300mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK505W3HS Input Voltage: 5 Output Voltage: 5 Output Current: 600mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK512DW3HS Input Voltage: 5 Output Voltage: 12, -12 Output Current: ±125mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK512W3HS Input Voltage: 5 Output Voltage: 12 Output Current: 250mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
LANK515DW3HS Input Voltage: 5 Output Voltage: 15, -15 Output Current: ±100mA Output Power (W): 3 No. Outputs: D Case: Surface Mount Get a Quote
LANK515W3HS Input Voltage: 5 Output Voltage: 15 Output Current: 200mA Output Power (W): 3 No. Outputs: S Case: Surface Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 5, 12, 24, 48
Input Voltage Range: 18-36, 36-75, 4.5-6, 9-18
Input Filter: Pi Filter
Input Frequency: 0 Hz
Output
Output Voltage: 3.3, 5, 12, 15, ±5, ±12, ±15
Voltage Accuracy: ±1%
Output Current: 600mA, 250mA, 200mA, ±300mA, ±125mA, ±100mA
Output Power (Watts): 2, 3
Short Circuit Protection: Continuous, Automatic Recovery
General
Efficiency: Up to 80%
Isolation: 3000VDC
Environmental
Operating Temperature: -25 to 71°C
Storage Temperature: -55 to 105°C
Extended Operating Temp. Option: -40 to 71°C

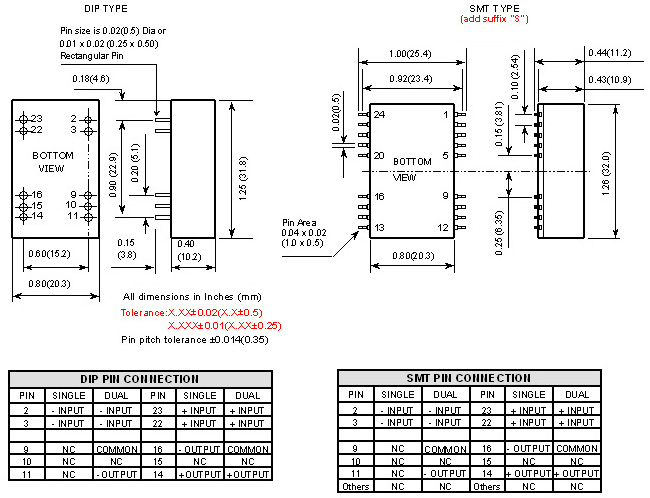

Physical
Weight: DIP Type: 0.48oz (14g)
SMT Type: 0.52oz (15g)
Dimensions: 1.25in. × 0.8in. × 0.4in.
Case Material: Non-Conductive Black Plastic
Notes & safety
Notes: 1. LANK "H" Series requires a minimum 10% load on the output to maintain specified regulation. Operation under no-load condition will not damage these devices; however, they may not meet all listed specifications.
2. Add an external filter at converter input terminals when measuring input reflected ripple, as figure 1. L: Simulated source impedance of 12uH C: Nippon chemi-con KMF series 47uF/100V
3. Input current is measured at nominal input voltage and full load of standard type.
4. Efficiency is taken at nominal input voltage and full load.
5. Max Capacitor Load is tested by minimum Vin and constant resistive load.
6. MTBF: BELLCORE TR-NWT-000332. Case 1: 50% Stress, Temperature at 40°C. (Ground fixed and controlled environment).
7. Add suffix "I" for -40°C to +71°C operation.
8. Add suffix "S" for SMT type.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: IEC60950-1, UL60950-1, EN60950-1
RoHS Compliance: Yes
