LANK 10W
The LANK 10W Series power modules are low-profile DC/DC converters that provide fully regulated single or dual outputs and operate over 2:1 or 4:1 input voltage ranges. The modules have a maximum power rating of 10W as well as high efficiency, continuous short circuit, and remote on/off control. The EN55022 level A conducted noise compliance minimizes design-in time and eliminates the need for external components. This series is RoHS and REACH compliant and has UL/cUL/IEC/EN 60950-1 safety approvals.
• Wide 2:1 or 4:1 Input Voltage Range
• Industrial Standard DIP-24 Package
• Full Regulated Output Voltage
• I/O Isolation of 1500VDC
• No Minimum Load Requirement
• RoHS & REACH Compliant
• Over Load and Short Circuit Protection
• Remote On/Off Control
• Shielded Metal Case with Insulated Baseplate
• Designed-In Conducted EMI Meets EN55022 Class A & FCC Level A
• UL/cUL/IEC/EN 60950-1 Safety Approval
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

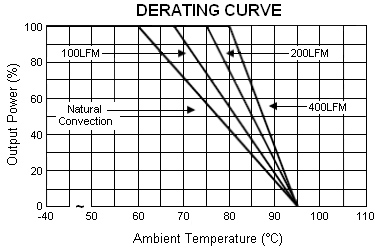

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| LANK2405W10 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2412W10 | Input Voltage: 24 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2433W10 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4805W10 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4812W10 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4833W10 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1233W10 | Input Voltage: 12 | Output Voltage: 3.3 | Output Current: 3000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1205W10 | Input Voltage: 12 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1212DW10 | Input Voltage: 12 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1212W10 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1215DW10 | Input Voltage: 12 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1215W10 | Input Voltage: 12 | Output Voltage: 15 | Output Current: 666mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2412DW10 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2415DW10 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2415W10 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 666mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4812DW10 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4815DW10 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4815W10 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 666mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2433UW10 | Input Voltage: 24 | Output Voltage: 3.3 | Output Current: 2700mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2405UW10 | Input Voltage: 24 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2451UW10 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2412UW10 | Input Voltage: 12 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2415UW10 | Input Voltage: 24 | Output Voltage: 15 | Output Current: 666mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2424UW10 | Input Voltage: 24 | Output Voltage: 24 | Output Current: 416mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4833UW10 | Input Voltage: 48 | Output Voltage: 3.3 | Output Current: 2700mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4805UW10 | Input Voltage: 48 | Output Voltage: 5 | Output Current: 2000 | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4851UW10 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4812UW10 | Input Voltage: 48 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4815UW10 | Input Voltage: 48 | Output Voltage: 15 | Output Current: 666mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4824UW10 | Input Voltage: 48 | Output Voltage: 24 | Output Current: 416mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2412DUW10 | Input Voltage: 24 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2415DUW10 | Input Voltage: 24 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4812DUW10 | Input Voltage: 48 | Output Voltage: 12, -12 | Output Current: ±416mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4815DUW10 | Input Voltage: 48 | Output Voltage: 15, -15 | Output Current: ±333mA | Output Power (W): 10 | No. Outputs: D | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK1251W10 | Input Voltage: 12 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK2451W10 | Input Voltage: 24 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| LANK4851W10 | Input Voltage: 48 | Output Voltage: 5.1 | Output Current: 2000mA | Output Power (W): 10.2 | No. Outputs: S | Case: Through Hole | Size: 1.25" × 0.8" × 0.4" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 12, 24, 48 |
| Input Voltage Range: | 9-18, 9-36, 18-36, 18-75, 36-75 |
| Input Filter: | Internal Pi |
| Remote ON/OFF: | Yes |
| Input Frequency: | 0 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 5.1, 12, 15, 24, ±12, ±15 |
| Voltage Accuracy: | Typical: ±1% Vnom. Max: ±2% Vnom. |
| Output Current: | 2700mA, 2000mA, 833mA, 666mA, 416mA, ±416mA, ±333mA |
| Output Power (Watts): | 10 |
| Short Circuit Protection: | Continuous |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 1500VDC |
| Environmental | |
| Operating Temperature: | -40 to 60°C |
| Storage Temperature: | -40 to 125°C |
| Physical | |
| Weight: | 0.61 oz. (17.3g) |

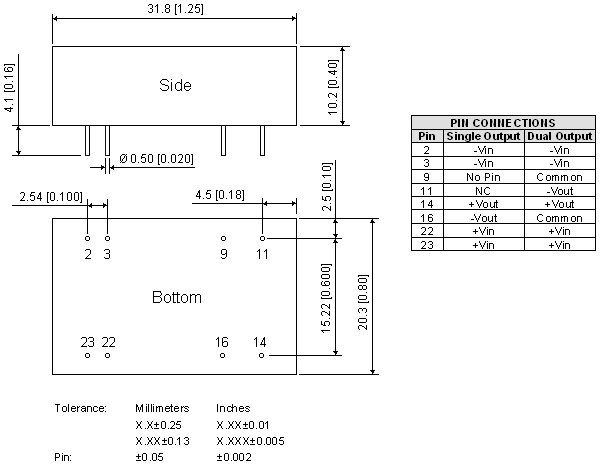

| Dimensions: | 1.25in. × 0.8in. × 0.4in. (31.8mm x 20.3mm x 10.2mm) |
| Case Material: | Metal with Non-Conductive Baseplate |
| Notes & safety | |
| Notes: | 1. Model numbers with “U” indicate models with a 4:1 input voltage range. Ex: LANK2433UW10 2. This product is Listed to applicable standards and requirements by UL. 3. To meet EN61000-4-4 & EN61000-4-5, an external capacitor across the input pins is required. Suggested capacitor: 220µF/100V 4. Transient recovery time is measured to within 1% error band for a step change in output load of 75% to 100%. 5. It is recommended to protect the converter by a fast blow fuse in the input supply line. 6. Other inputs and outputs voltages may be available, please contact factory. 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (CSA Certificate), IEC/EN 60950-1 (CB Report) |
| RoHS Compliance: | Yes |
